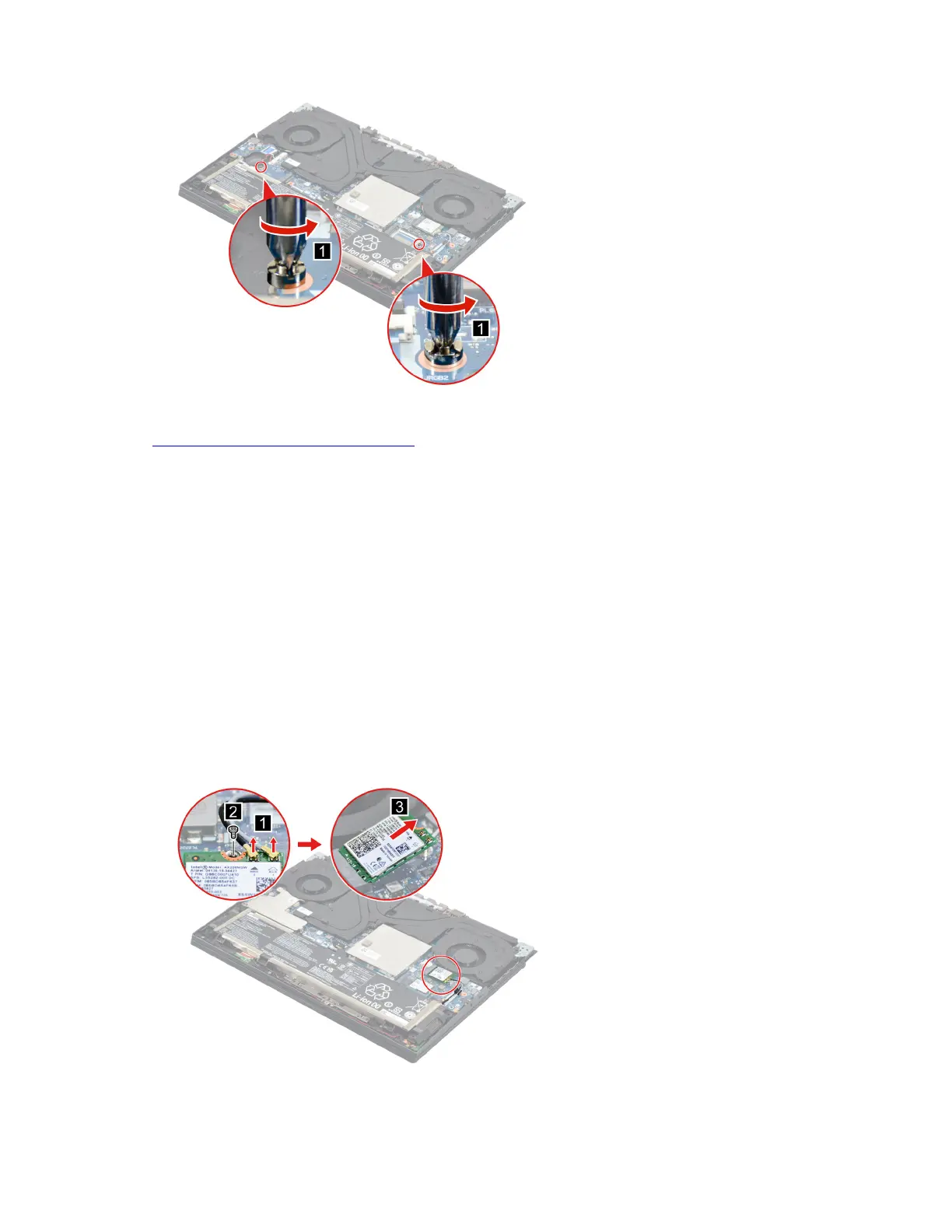

Figure 12. Remove the SSD stand off
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
SSD stand off
Remove the Wi-Fi card
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 33
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove the left SSD plate.
Note: For details, see “Remove the solid-state drive (SSD) plates” on page 34.
Step 3. Detach the main and auxiliary antenna cable connectors. Remove one screw and then remove the
Wi-Fi card by pulling it away from the slot.
Figure 13. Remove the Wi-Fi card
Chapter 4. Removing a FRU or CRU 37
