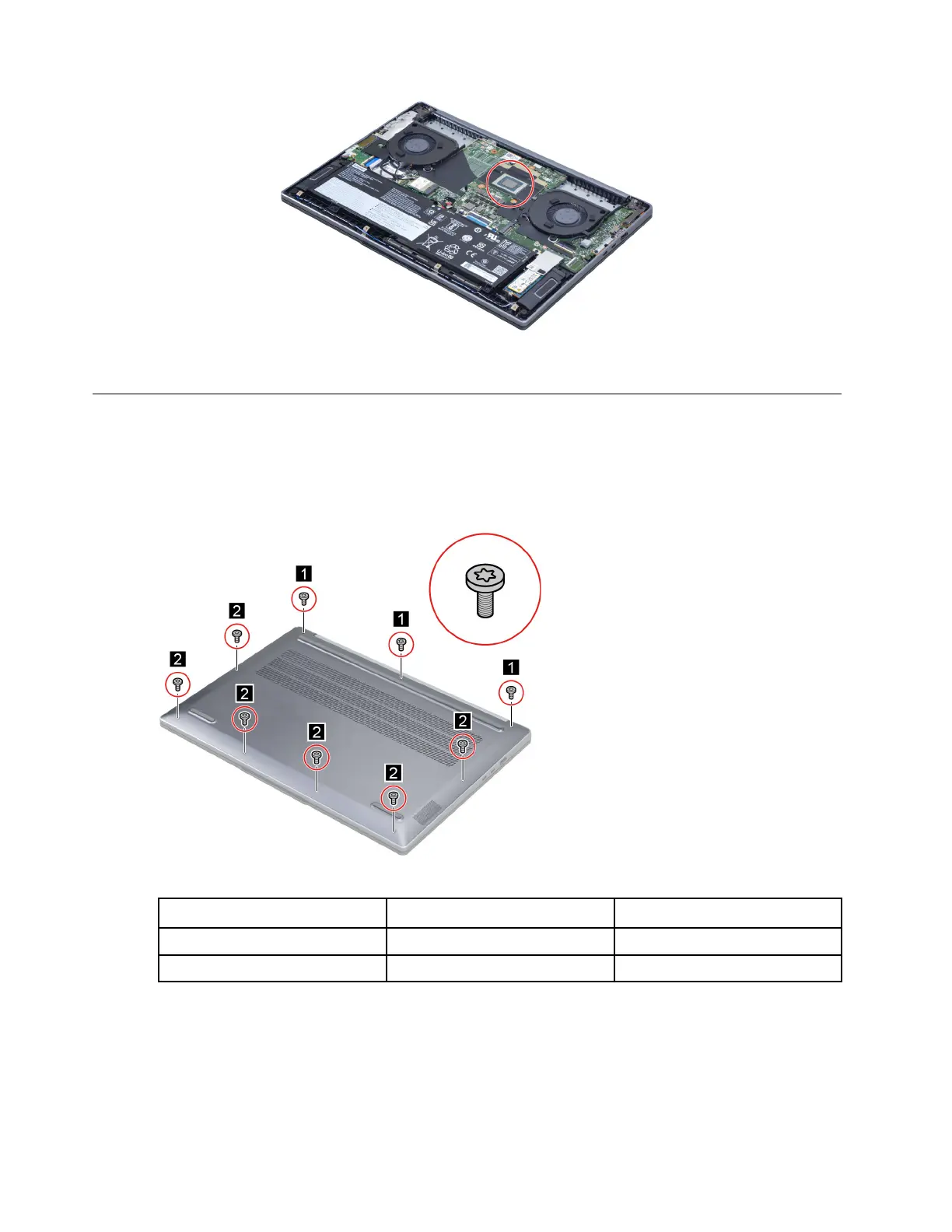

Figure 5. Areas on the system board where thermal interface materials are applied
Remove the lower case
Make sure the computer has been shut down before servicing the computer.
Step 1. Place the computer upside down on a flat surface.
Step 2. Remove nine screws.
Figure 6. Remove nine screws
Screw specifications
Number of screws
Torque force (kgf.cm)
M2 x L3.5 6 1.85±0.15
M2 x L9 3 1.85±0.15
Step 3. Pry up the latches and then remove the lower case.
28
Hardware Maintenance Manual
