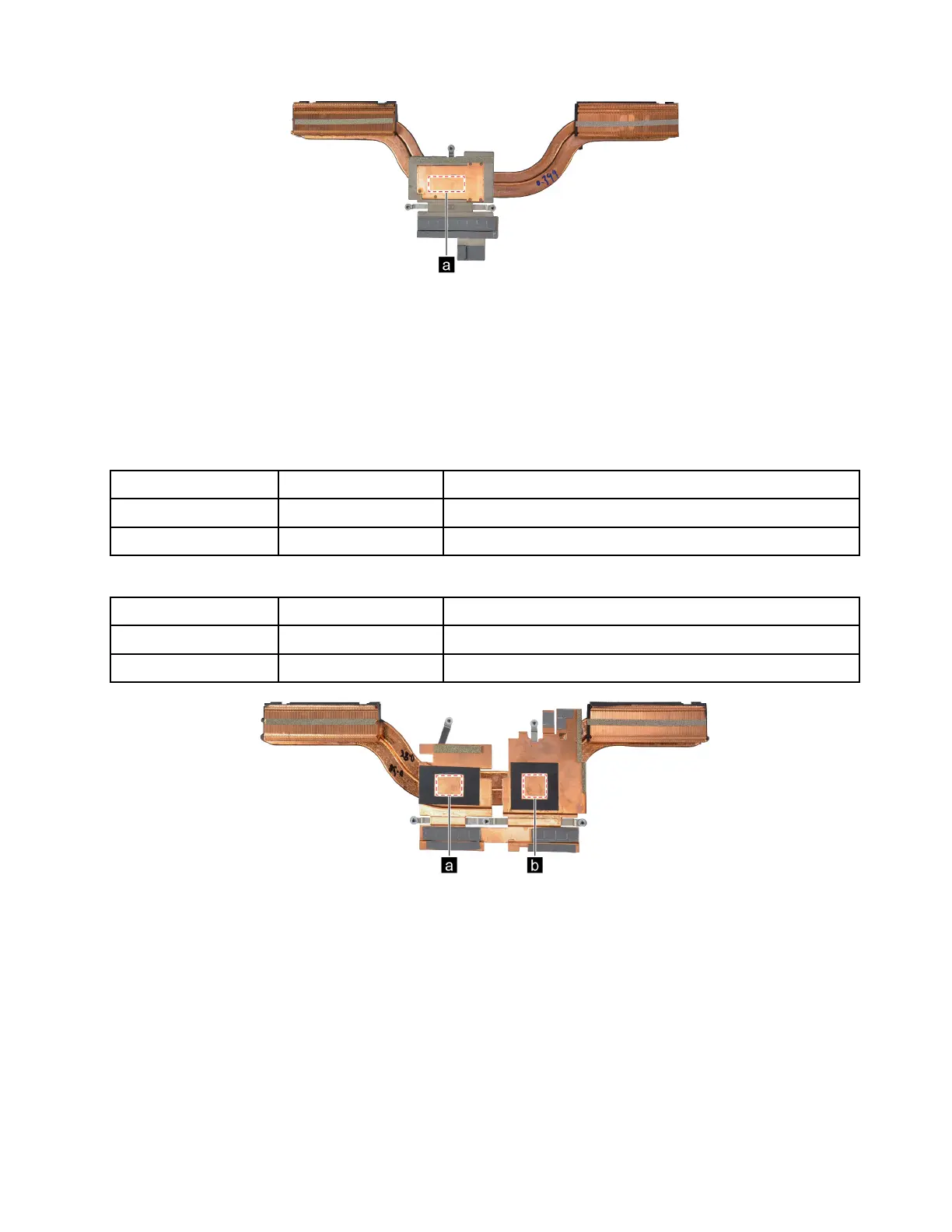

Figure 3. Areas on the heat sink where thermal interface materials should be applied
Type, quantity, and areas of thermal interface materials application on
the heat sink (for DIS)
The table and figure below provide information on the type and quantity of thermal interface materials, as
well as the specific areas on the heat sink where these materials should be applied.
Table 8. IdeaPad Pro 5 16IMH9
Area Type Quantity
a
PTM7958 1 piece, 24 mm × 12 mm × 0.2 mm
b PTM7958 1 piece, 15 mm × 15 mm × 0.2 mm
Table 9. IdeaPad Pro 5 16AHP9
Area Type
Quantity
a
PTM7958 1 piece, 18 mm × 13 mm × 0.2 mm
b PTM7958 1 piece, 15 mm × 15 mm × 0.2 mm
Figure 4. Areas on the heat sink where thermal interface materials should be applied
Areas on the system board where thermal interface materials are applied
The following figure shows the areas on the system board where thermal interface materials are applied.
Chapter 4. Removing a FRU or CRU 27
