RAK112B_ENG / 2023-06-27
12 / 40
2. Put the anchor bolts in place and tighten the anchor bolt nuts.
3. Adjust the upper nuts and washers on the anchor bolts horizontally. Use a spirit level.
4. Attach the mounting box to the anchor bolts with applicable washers and nuts.
5. EVTL32.00: Pull electrical cables through the ground mounting box cable gland(s) approx. 400 mm
measured from the upper surface of the mounting box.
EVTL34.00: Pull electrical cables through the ground mounting box cable gland(s) and further
through the mounting box cable hole approx. 400 mm measured from the upper surface of the
mounting box.
6. Tighten the cable gland(s). Close the unused cable entries with cable gland plugs.
7. Open the maintenance door of the charging station.
8. Remove the nuts and the washers from the ground mounting box.
9. Lift the charging station on the ground mounting box. Pull the electrical cables through the cable
hole.
10. Attach the charging station in place with the washers and the nuts you removed from the ground
mounting box.
11. EVTL32.00: Remove the supply cable sheath at the length of max. 200 mm.
EVTL34.00: Remove the supply cable sheath beginning from the cable gland exit.
12. Cut the supply cable conductors to applicable lengths. The earth conductor must be long enough,
so that if a fault occurs it is the last one that comes loose.
13. Strip the supply cable conductors 25 mm.
14. Connect the supply cable wires to the supply terminal blocks.
15. Make sure that the PE is connected to the charging station.
16. Switch on F0, F1, F2 (if present) and QF1.
17. Close the maintenance door.

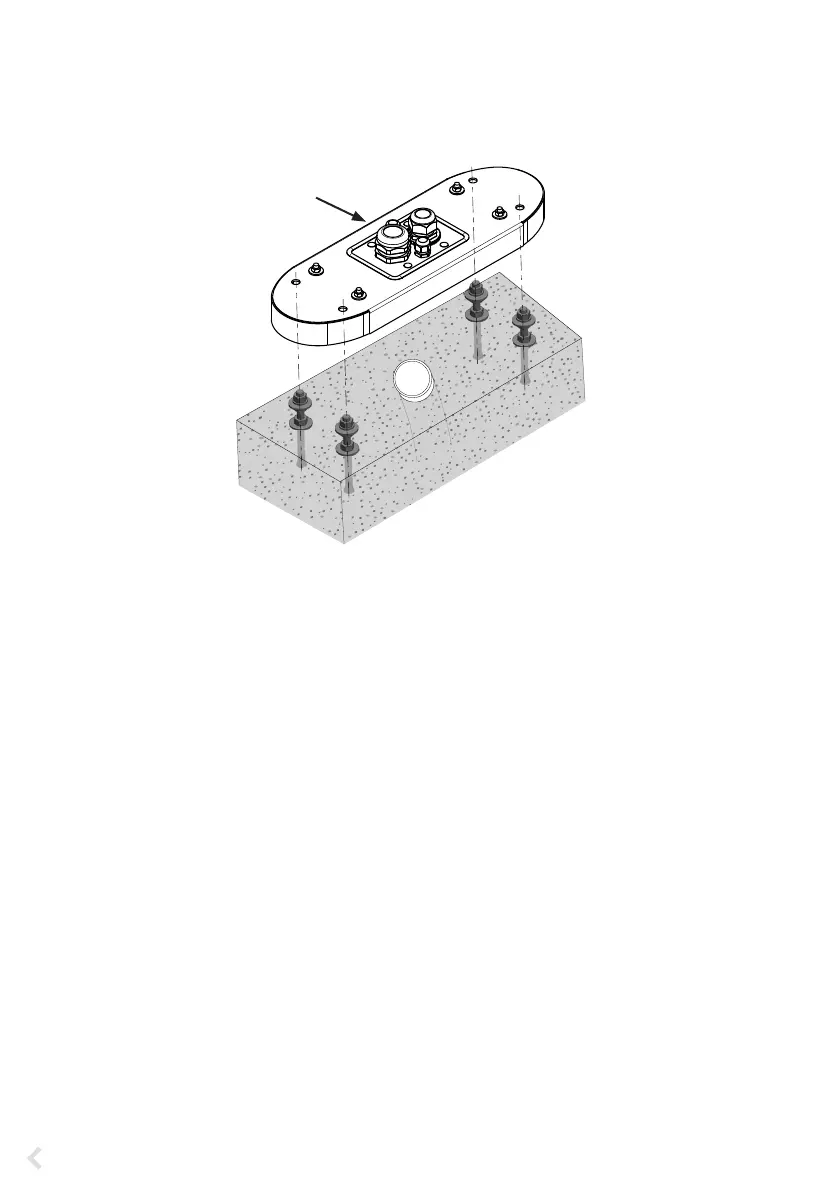

Ground mounting box
EVTL32.00
