7.2. EVF200 mounting on concrete casting at site
Installation accessories
Ground mounting box EVTL32.00 / EVTL34.00 1 pcs
Anchor bolts M12 4 pcs
Washers
Nuts
Make sure that the materials used for the concrete foundation and the installation procedures follow local
building regulations and safety standards.
• Dig a trench for cable conduits and an excavation pit for the concrete foundation. The pit oor
should be compacted and level.
• Put cable and possible drain pipes in place.
• Fill the pit with concrete.
• Let the concrete cure, make sure that the surface stays level during the process.
Installation steps

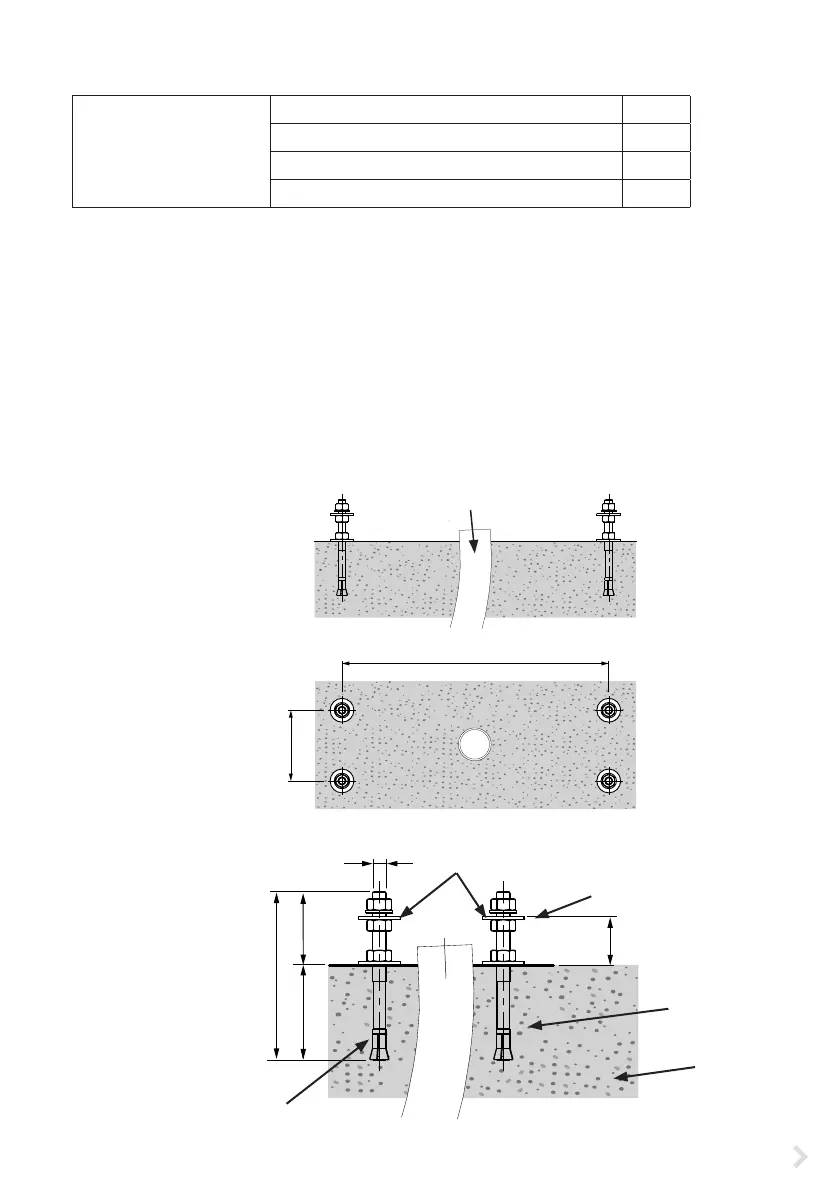

1. Drill a hole in the concrete for the anchor bolts. For more information see the anchor bolt instruc-
tions. Use the ground mounting box as a jig.
415
110
43 (EVTL32.00)
38 (EVTL34.00)
M12
(150)
(64) 86
Cable protection
pipe Ø110
Adjust to the
same level
Washer upper surface
measured from ground
Anchor bolt
Concrete
Select anchor bolts applicable
for the thickness and strength
of the concrete
