Digital IEM Receiver
Rio Rancho, NM 13

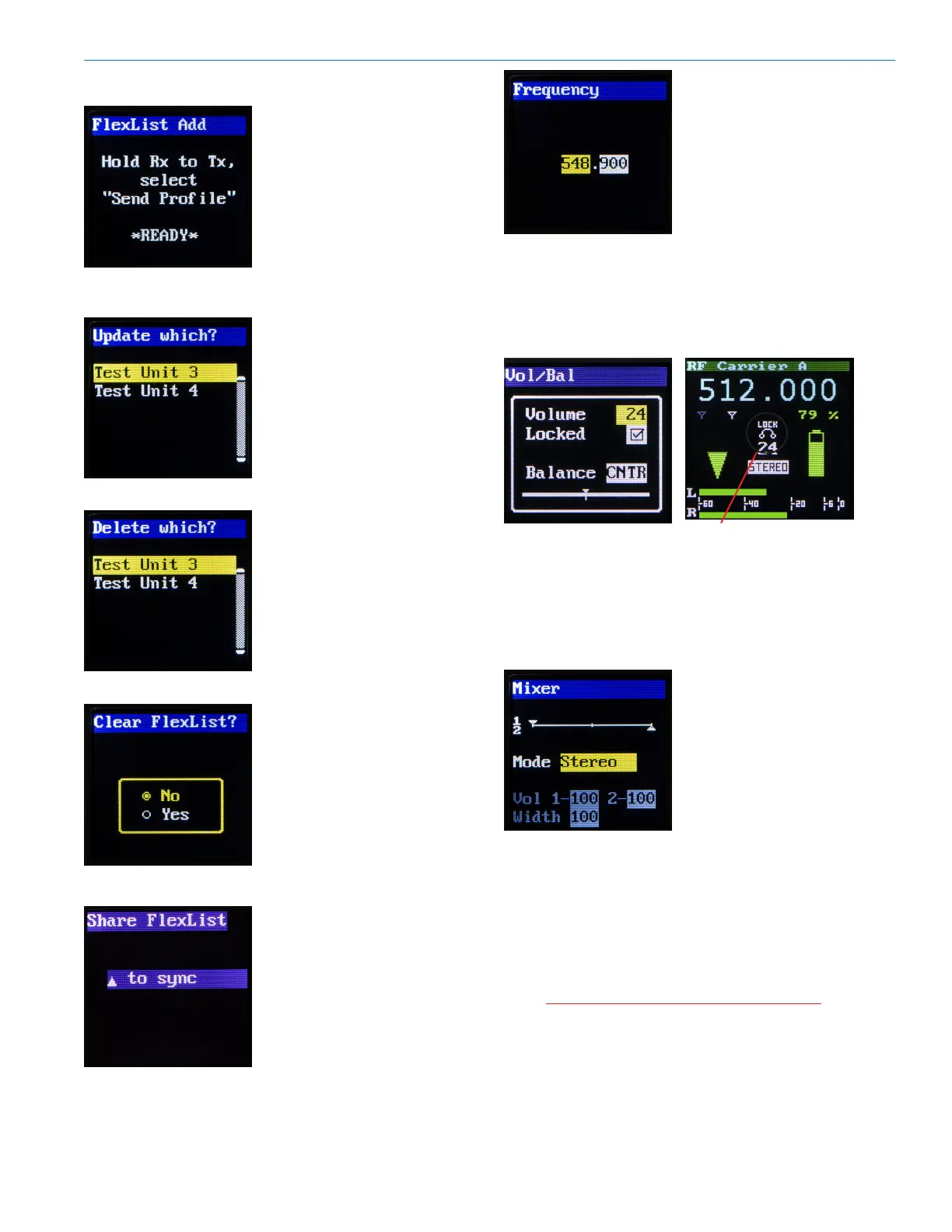

Add - add a mix to the available Flex List
(
action performed via the IR port
) using an M2T or DCHT.
Update - Update settings in a mix (frequency, etc.).
Action performed via the IR port using an M2T or DCHT.
Delete - Remove a mix from the Flex List
Clear All - Remove all mixes from the Flex List
Share List - Share Flex List from one M2Ra to another
via IR port.
Frequency
Allows manual selection of the operating frequency in
MHz and KHz, tunable in 25 kHz steps.
Vol/Bal
Displays the volume, from 0 to 100, Locks or Unlocks
the volume control (lock shown on main screen) and
adjusts the balance to left, right or center.
Volume locked display on main
screen
Mixer
This screen allows you to choose a stereo mix, mono
mix from either audio channel 1, channel 2 or both, or
custom, allowing for varied width of the signal and how
much level from each channel.
The available modes are:
• Stereo
• SwapLR
• Custom
• Mono 1&2
• Mono Ch 1
• Mono Ch 2
Limiter
Limiter function allows the user to set volume and dy-
namic range for headphone use.
Gain - The default setting (0) is linear, but if volume
adjustments are needed, use the UP and DOWN arrows
to adjust the audio by up to +18 dB and down to -6 dB
in 3dB steps.
WARNING: Increasing the Gain can make
headphone volume excessively loud. Use
caution when setting and using.
