Lantronix ION C3110 User Guide
33417 Rev. B https://www.lantronix.com Page 11 of 62

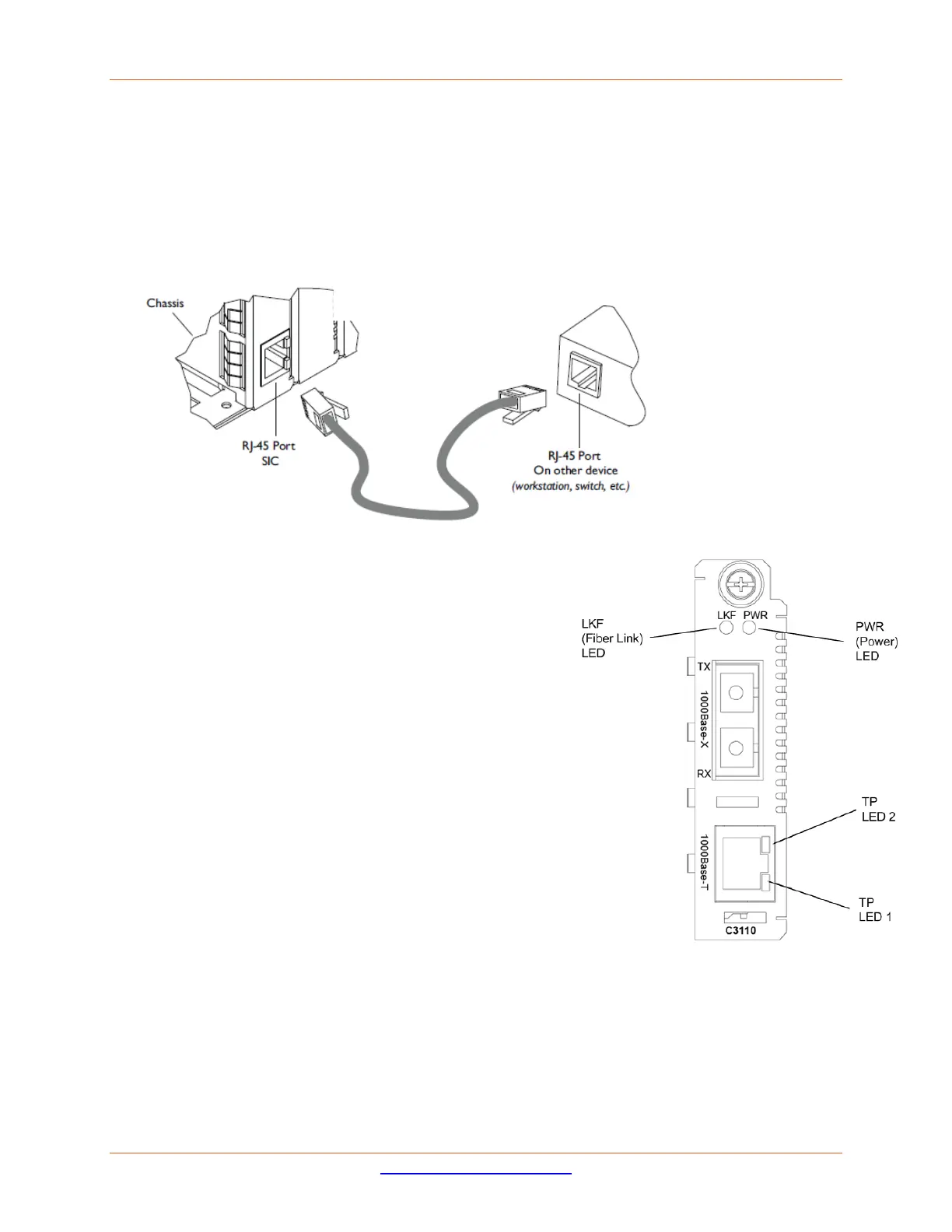

Install the Copper Cable
1. Locate a 1000Base-T compliant copper cables with male, RJ-45 connectors installed at both
ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the C3110 SIC.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device
(switch, workstation, etc.).
Status LEDs
Use the status LEDs to monitor C3110 operation in the network.
PWR (Power) ON = Connected to external AC power
LKF (Fiber Link) ON = Fiber Connection; Blinking = fiber activity
TP LED 1 ON Green = TP Link; Blinking = TP activity
TP LED 2 ON Green = Full duplex
OFF = Half duplex,
Blinking = if collision occurs
