Lantronix 3. Installation
AP-GET-SFP-01 Install Guide 11

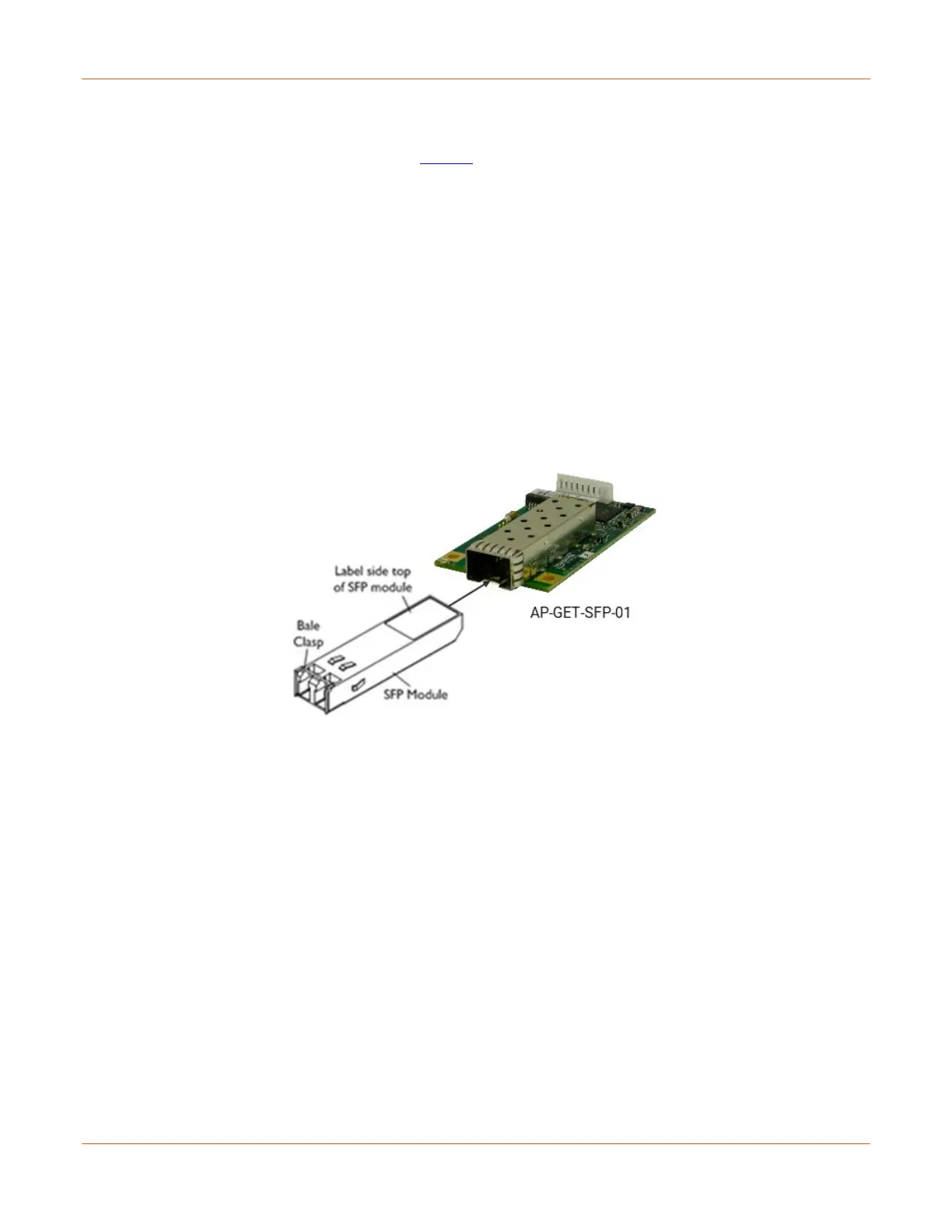

Insert and Connect the SFP
Perform the steps below to install an SFP in the AP-GET-SFP-01. Refer to the documentation that came with your
SFP for specific requirements. See the Lantronix
website for full details on SFP products.
Note: AP-GET-SFP-01 supports fiber SFPs only. Copper SFPs are not supported.
We recommend powering off the AP-GET-SFP-01 prior to installing the SFP module.
Remove the SFP transceiver module from its protective packaging.
Note: Do not remove the optical bore dust plugs until directed to do so in a later procedure.
1. Check the slot orientation. Position the SFP module at the desired installation slot, with the label facing
correctly.
2. Carefully slide the SFP module into the slot, aligning it with the internal installation guides.
3. Ensure that the SFP module is firmly seated against the internal mating connector.
4. Remove the dust plug from the connector. Save the dust plug for future use.
5. Connect the fiber cable to the fiber port connector of the SFP module. Make sure the SFP bale clasp (release
latch) is in the up (closed) position when you insert the cable connector into the SFP.
6. Attach the other end of the cable into the other device.
