60
www.howdens.com

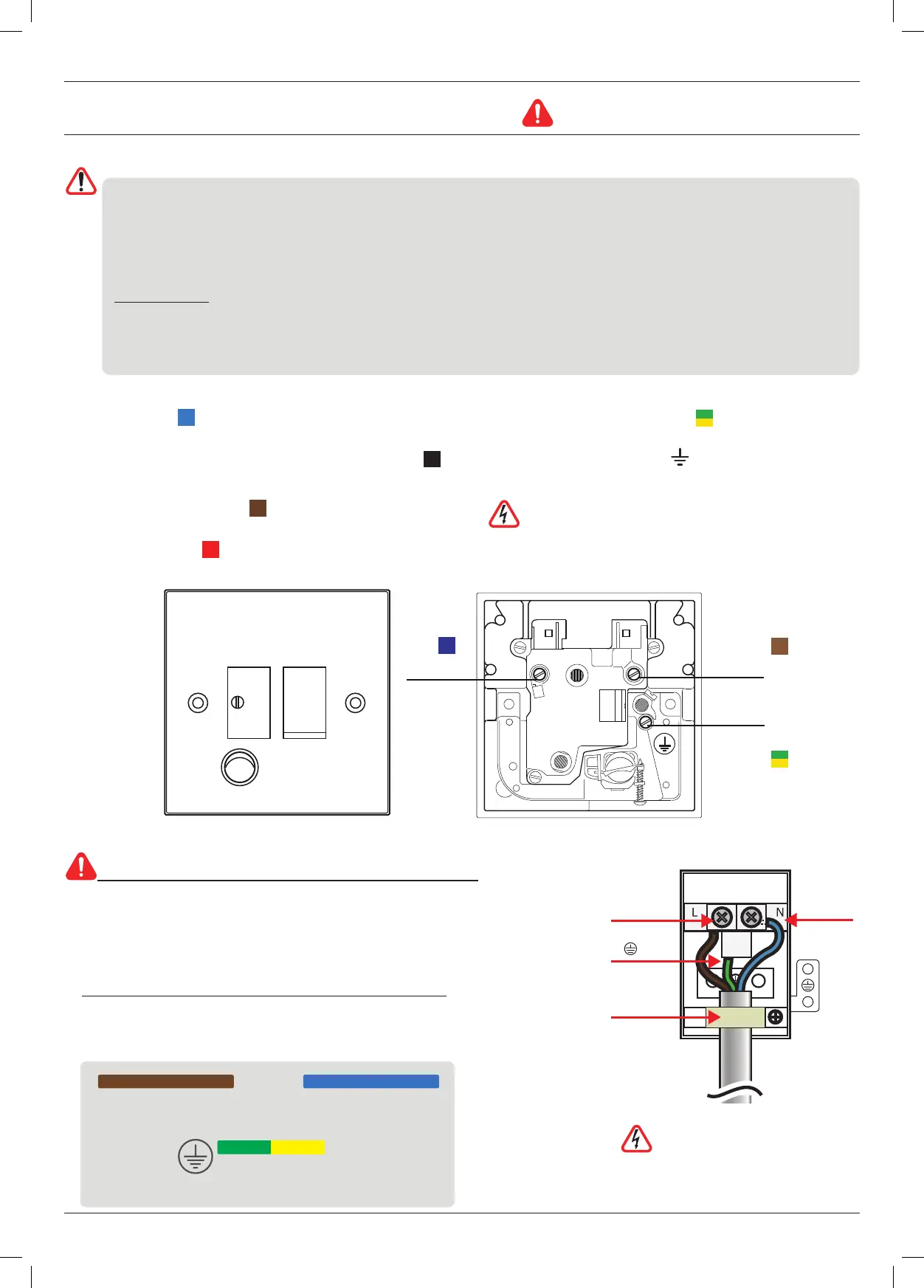

Built-in Combination Microwave Oven
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
13A 250V~
FUSE
ON
Blue
(Neutral)
Brown
(Live)
Green & Yellow
(Earth)
Power cable connection to the appliance
• If the power cord is damaged, it must be replaced by a qualified
electrician. Otherwise there is a risk of an electric shock, short
circuit or fire.
• The power cable must be connected to the product by following
these instructions. The power cable must not be longer than 2m
for safety reasons. Connect to supply power as shown.
L
Cable clamp
E
N
Electrical Connections (continued)
BROWN/ BLACK = L (Phase) BLUE = N (Neutral)
GREEN /YELLOW = E
(Ground)
Ensure live connections
are safely insulated.
IMPORTANT: The wires in the mains power cable are coloured in accordance with the code below:
As the colours of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your spur box, proceed as follows:
Terminology
• Connections labelled SUPPLY pertain to the internal house wiring.
• Connections labelled LOAD are for linking to the appliance.
The blue wire
Must be connected to the terminal which is
marked with the letter ‘N’ or coloured BLACK
The brown/black wire must be connected
to the terminal marked with the letter ‘ L’ or
coloured RED
The green and Yellow wire
must be connected to the terminal which is
marked with the letter ‘E’ or symbol (ground).
Ensure live connections are safely insulated.
Do not power on until correctly installed.
