LAM7006 / LAM7007
For best ventilation
use the Low Option
as shown in the
latest howdens
kitchen installation
manual.

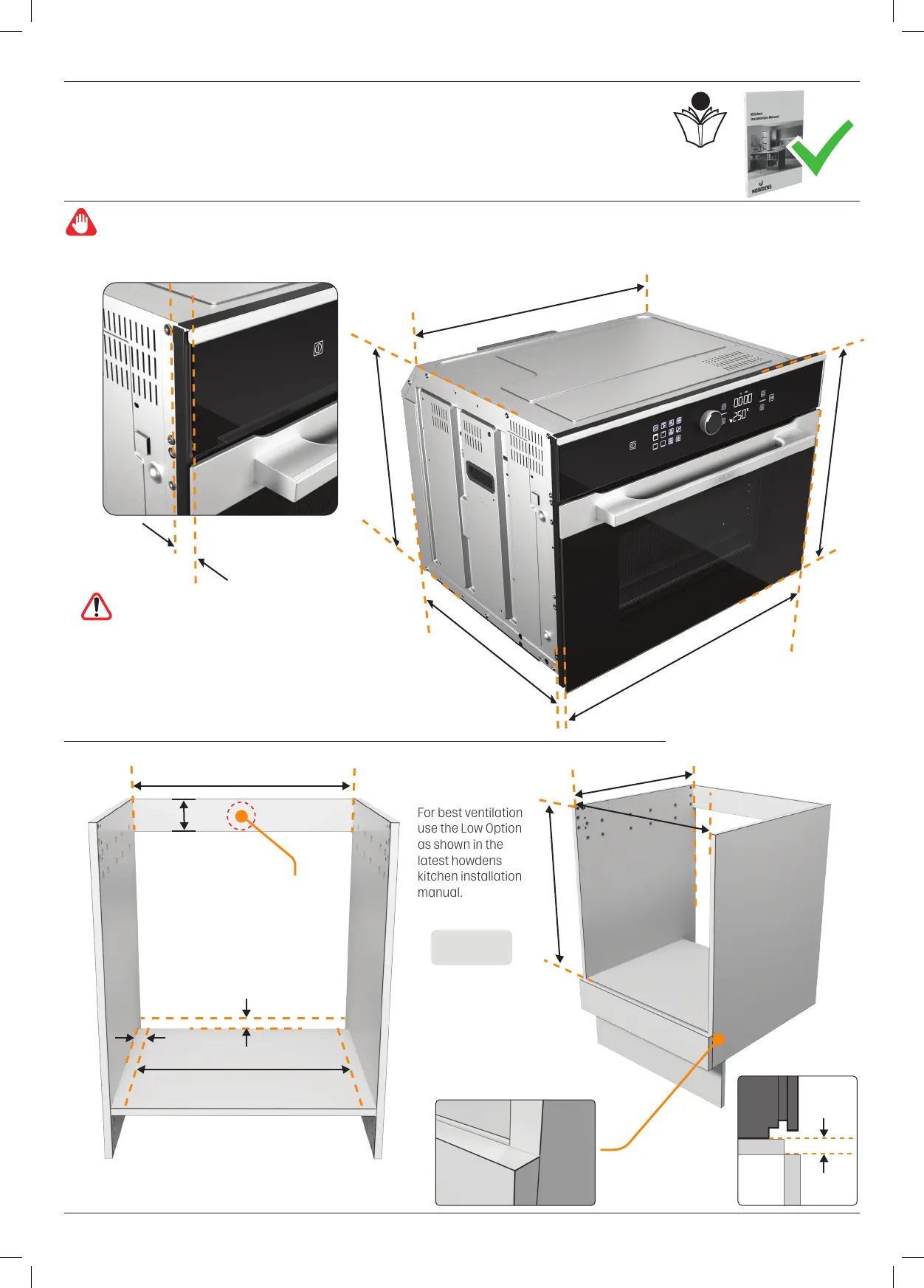

Minimum Clearances (mm)
Built-Under Oven Housing (Low Option recommended)
Installation
445
555
547
455
20
594
Ensure furniture is fixed before installing.
• Do not install heat insulation strips inside the
interior of the furniture that the oven is to be installed in.
• Do not install behind a decorative door to avoid overheating.
• All dimensions are in (mm).
• All cut edges should be sealed with a water proof varnish or PVA.
Electrical connections
must be in this area or
outside the installation.
560 (min)
500 (min)
100
35 (min)
30
601
550
(min)
560 (min)
3mm
Area (A)
Figure 1
Standard
BUOH
Installation furniture surfaces must be a minimum of 100°C heat resistant.
Do not power on until correctly installed.
