Connecting the VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher
19
6.8.2 Connecting the ETHERNET Port via a Network Hub (Straight-
Through Cable)
You can connect the Ethernet port of the VS-44HDxl to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45
connectors.
6.8.3 Configuring the Ethernet Port
After connecting the Ethernet port, you have to install and configure it.
For detailed instructions on how to install and configure your Ethernet port,
see the “ Ethernet Configuration (FC-11) guide.pdf” on our Web site:
http://www.kramerelectronics.com.
6.9 Controlling via the REMOTE Connector
Connecting the REMOTE terminal
block connector to a dry contact
switch enables you
to route an input
to an output by remote control.

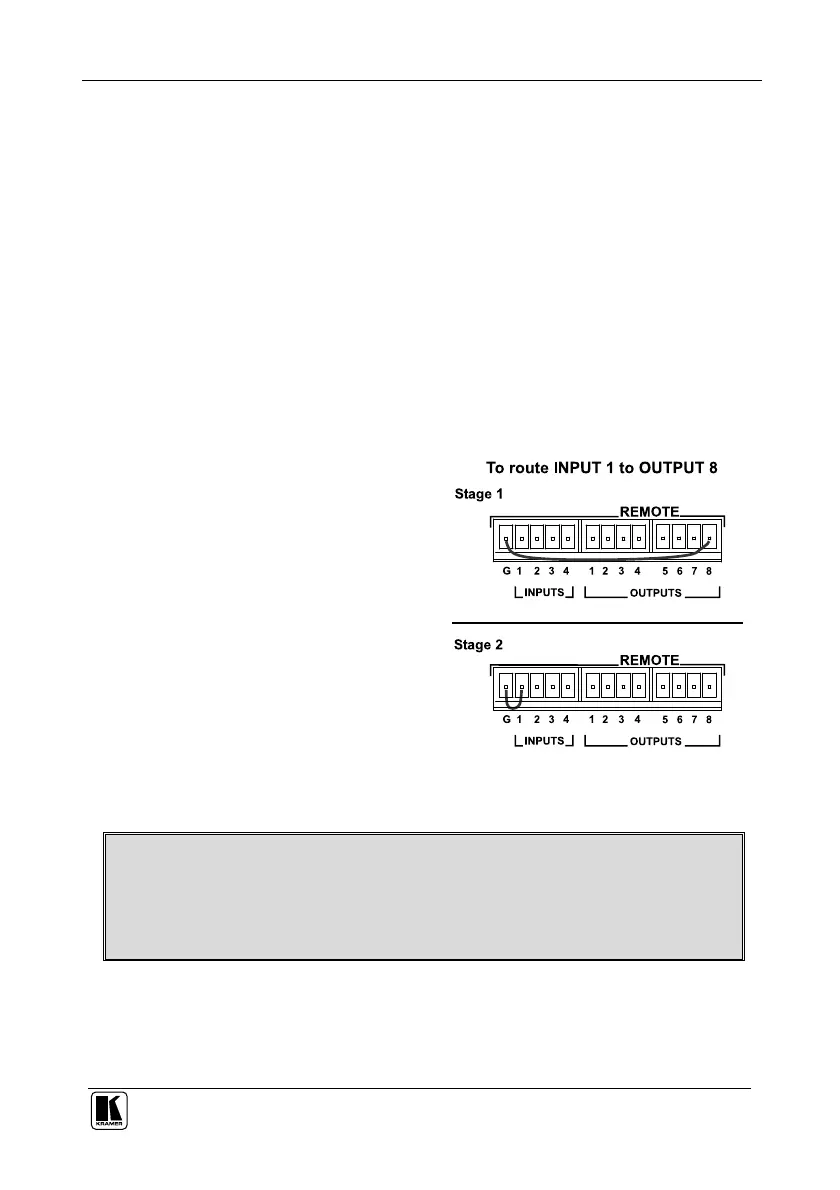

To route input 1 to output 8 as an
example (see Figure 9):
1. Momentarily touch output # 8 to
Ground (G)
2. Momentarily touch input # 1 to
Ground (G)
Figure 9: Using the Remote Connector
In the dual-link mode, only inputs 1 and 2 and outputs 1 to 4 are used (as are
the INPUT and OUTPUT selector buttons, respectively). Remote input PINs 3
and 4 and Input Selector buttons 3 and 4 are not used, as well as Remote
output PINs 5 to 8 and Output Selector buttons 5 to 8.
