Connecting Your VS-44HDxl 3G HD/SD-SDI 4x4 Matrix Switcher
19
To route input 1 to output 4, as the
example in Figure 9 illustrates,
momentarily touch, firstly, output #
4 to the Ground, and then secondly,
input # 1 to the Ground.
Temporarily connect
PIN 4 to
PIN G (Ground)
OUTPUT
Stage 1
Temporarily connect
IN PIN 1 to
PIN G (Ground)
PUT
Stage 2
To route INPUT 1 to OUTPUT 4

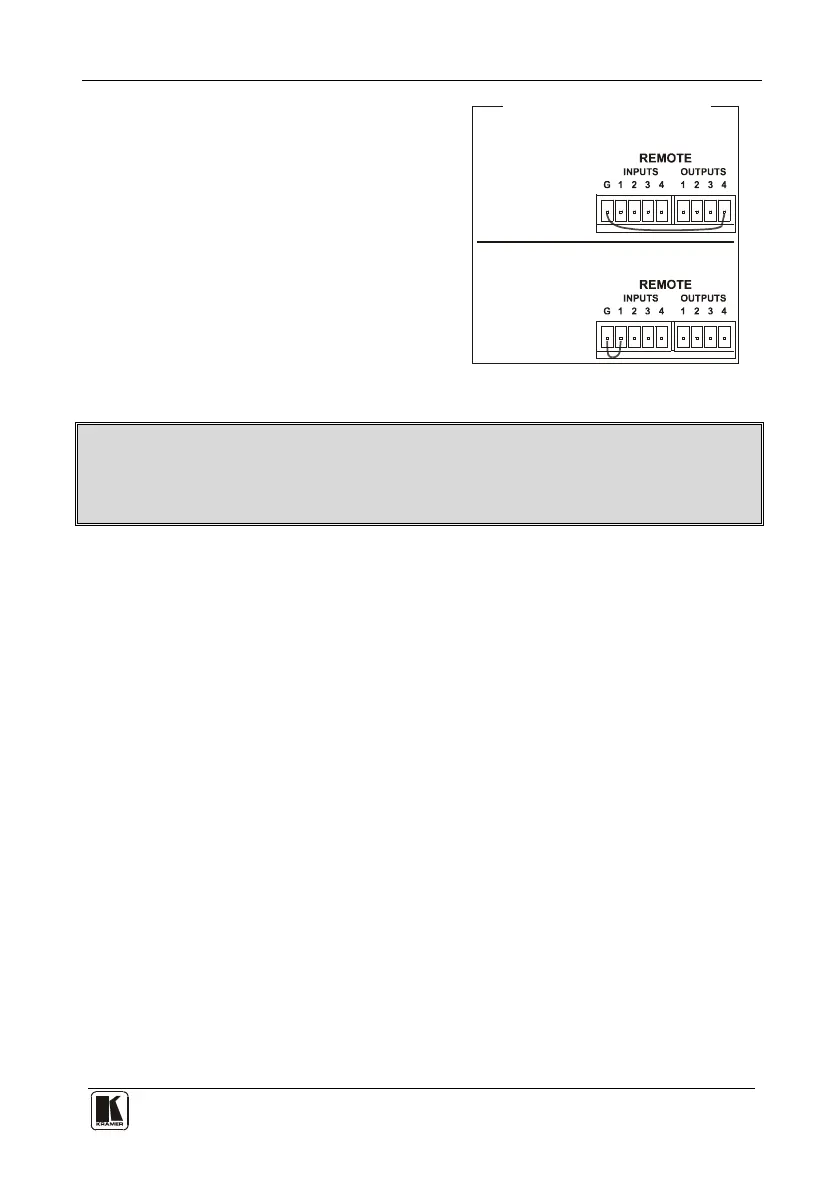

Figure 9: Using the REMOTE Connector
In the dual-link mode, only inputs and outputs 1 and 2 are used (as are the INPUT
and OUTPUT selector buttons). Remote PINs 3 and 4 and Selector buttons 3 and
4 are not used.
