KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting Your VS-44HDxl 3G HD/SD-SDI 4x4 Matrix Switcher
18

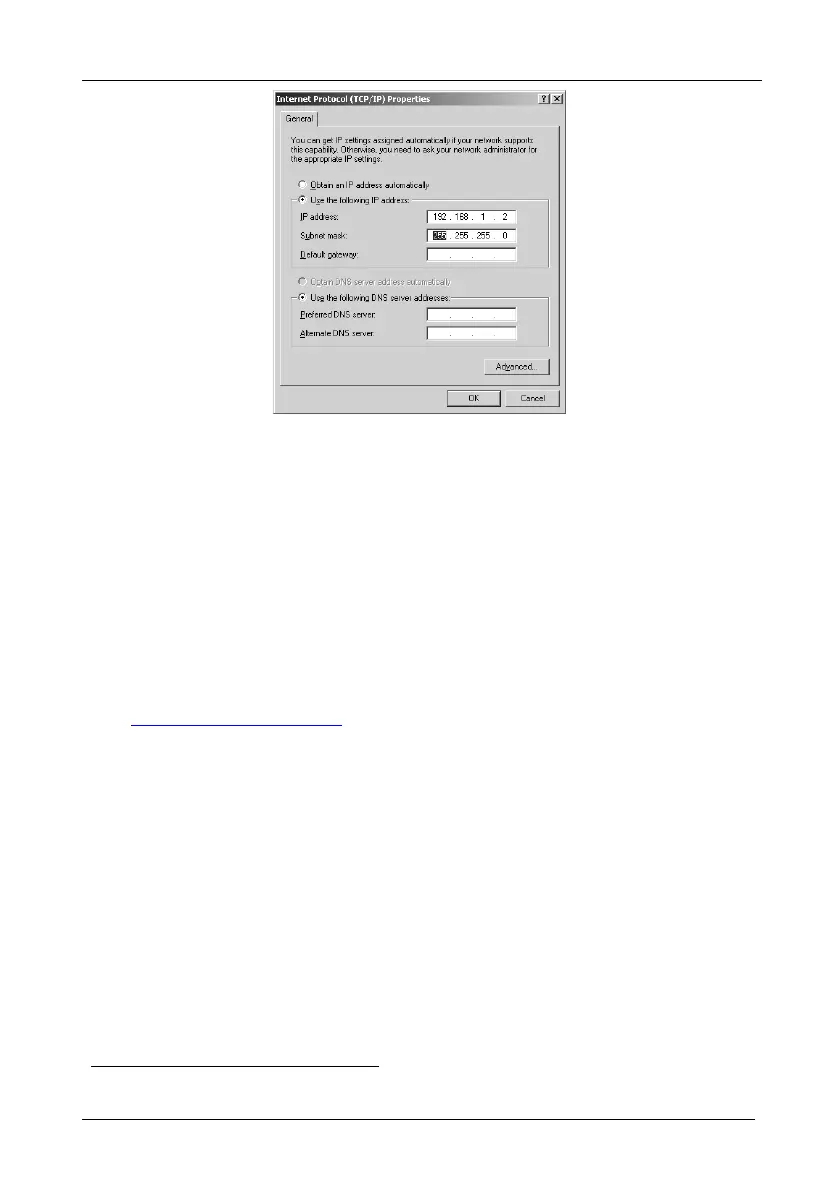

Figure 8: Internet Protocol (TCP/IP) Properties Window
6.8.2 Connecting the ETHERNET Port via a Network Hub (Straight-
Through Cable)
You can connect the Ethernet port of the VS-44HDxl to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45
connectors.
6.8.3 Configuring the Ethernet Port
After connecting the Ethernet port, you have to install and configure it.
For detailed instructions on how to configure your Ethernet port, refer to the
Ethernet Configuration (Lantronix) Guide on our Web site:
http://www.kramerav.com
.
6.9 Controlling via the REMOTE Connector
You can force the routing of one of the four inputs to any of the four outputs
1
by
remote control. To do so, connect the appropriate REMOTE input terminal block
connector pins to a contact closure switch.
1 In the dual-link mode, you can force the routing of any of the two inputs to any of the two outputs
