Kramer Electronics Ltd.
MTX3-16-M, MTX3-34-M – Defining MTX3-16-M 16x16 8K Modular Matrix
7
Defining MTX3-16-M 16x16 8K
Modular Matrix
This section defines MTX3-16-M.

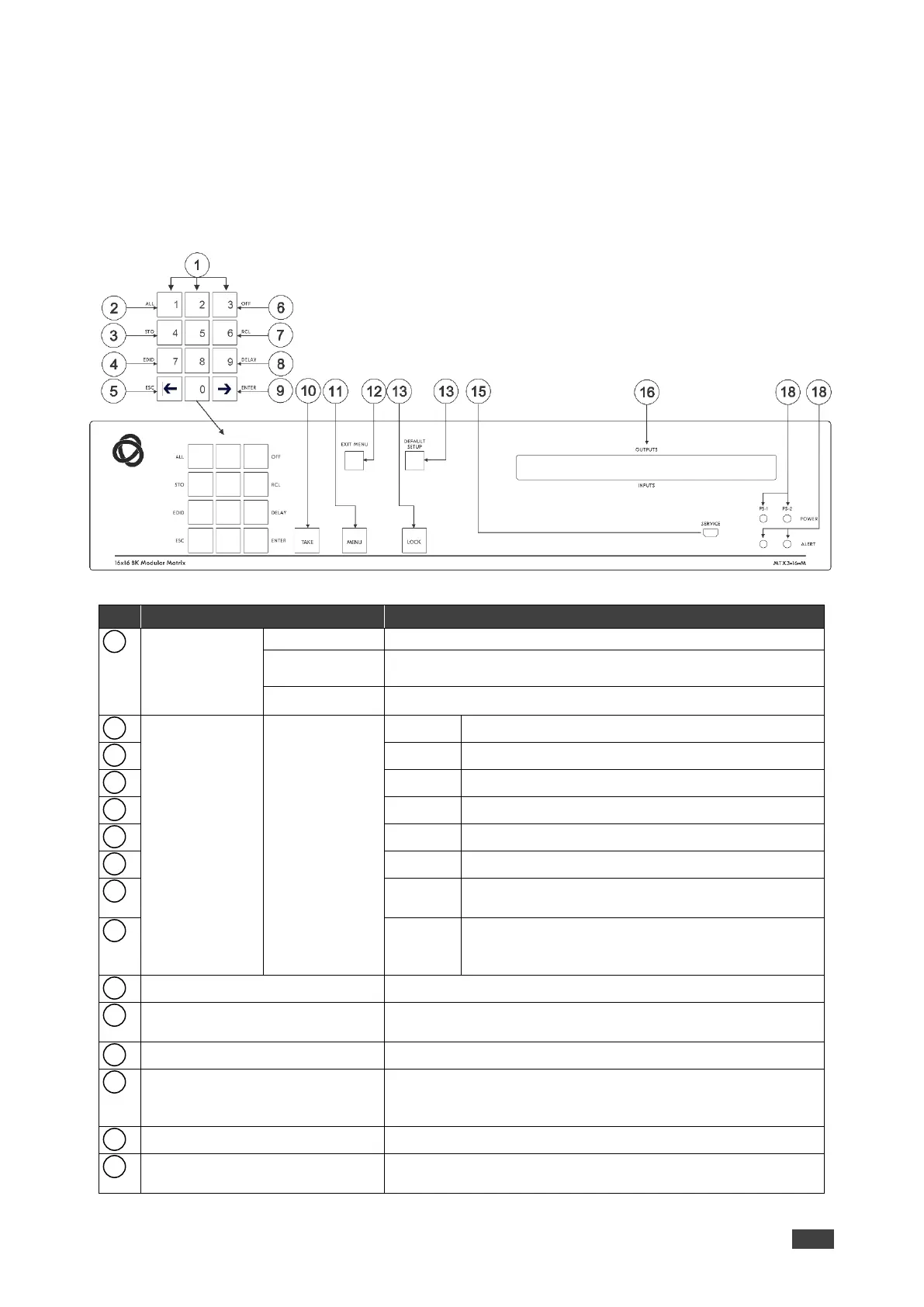

Figure 1: MTX3-16-M 16x16 8K Modular Matrix Front Panel
#
Feature
Function
Numeric
Keypad
Numbers
1 to 0
←
(Move left)
Move the LCD display left (when the display is extended).
→
(Move right)
Move the LCD display right (when the display is extended).
Double-Function
Selector
Buttons.
Enabled and lit
after pressing
the MENU
button 4 times.
Menu Button
Functions
ALL
Connect an input to all outputs.
STO
Store the current setup in a preset.
EDID
Assign EDID channels.
ESC
Exit the current operation.
OFF
Turn off an output.
RCL
Recall a preset.
DELAY
Set the delay between confirming an action and the
execution of the action on an output port.
ENTER
Confirm the input-output setup when using a one-
digit number instead of two digits. For example, to
enter input 5, you can press either 05 or 5, ENTER.
TAKE Button
Confirm action.
MENU Button
Enable the ALL, STO, EDID, ESC, OFF, RCL, DELAY and
ENTER buttons. Press again to enter the configuration menu.
EXIT MENU Button
Press to exit a menu or return to switching mode.
LOCK Button
Press and hold for approximately 2 sec to lock/unlock the front
panel buttons.
A short press returns the LCD display to the default window.
DEFAULT SETUP Button
Press to open the reset menu on the display.
SERVICE Mini USB Connector
Connect to a PC to send PK3000 commands to the matrix
switcher.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
