40
© 2021 KOSTAL Solar Electric GmbH
Installation
Connecting mains cable
1. Disconnect the power supply from the mains.
2. Secure AC connection against being switched on
again.
3. Switch the DC switch on the inverter to OFF.
4. Correctly lay the mains cable from the power distrib-
utor to the inverter.
5. Install the necessary safety devices - line circuit
breakers, earth leakage circuit breakers - in the
mains cable.
ϑ
120 mm
D
PIKO CI 30
PIKO CI 50/60
10 - 25 mm²
30 - 50 mm²
A
22 - 32 mm
D
35 - 40 mm
L1+2 mm
M6
A
L1

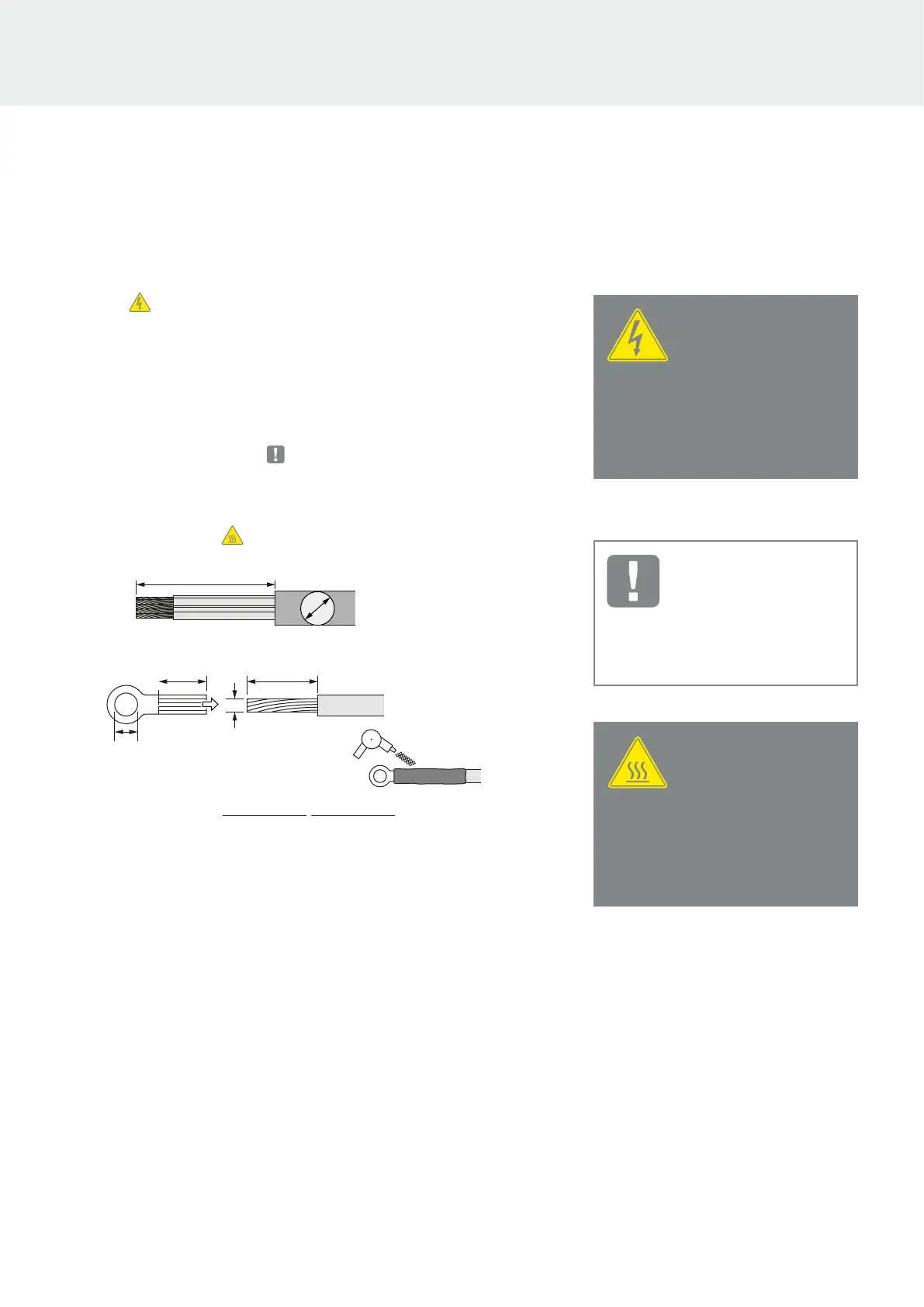

Fig. 16: Preparing AC cable
6. Strip 120 mm of insulation o the mains cable.
7. Fit suitable heat-shrinkable sleeves onto the wires.
Strip insulation o ends of conductors and crimp the
cable ring lug onto the ends of conductors.
DANGER
RISK OF DEATH DUE TO ELECTRI-
CAL SHOCK AND DISCHARGE!
De-energise all devices and secure
them against being switched on
again.
IMPORTANT
INFORMATION
Whenever working on the inverter,
only ever use insulated tools to
prevent short-circuits.
WARNING
RISK OF FIRE DUE TO OVER-
CURRENT AND HEATING OF THE
MAINS CABLE!
Install line circuit breaker to secure
against overcurrent.
3
2
3
4
5
6
7
8
9
10
1
