Installation
8. PIKO CI 30:
Remove connection cover screws.
Lead mains cable through connection cover.
PIKO CI 50/60:
Remove screws on the bottom cover and take o the
cover.
Lead the mains cable through the feed-through into
the terminal compartment of the inverter.
Connect the mains cable to the AC terminal as
instructed on the label.
ϑ
8 Nm
1,5 Nm
12 Nm
3 Nm
PIKO CI 30 = 3 Nm
PIKO CI 50/60 = 12 Nm
5 Nm
L1 L2 L3 N PE

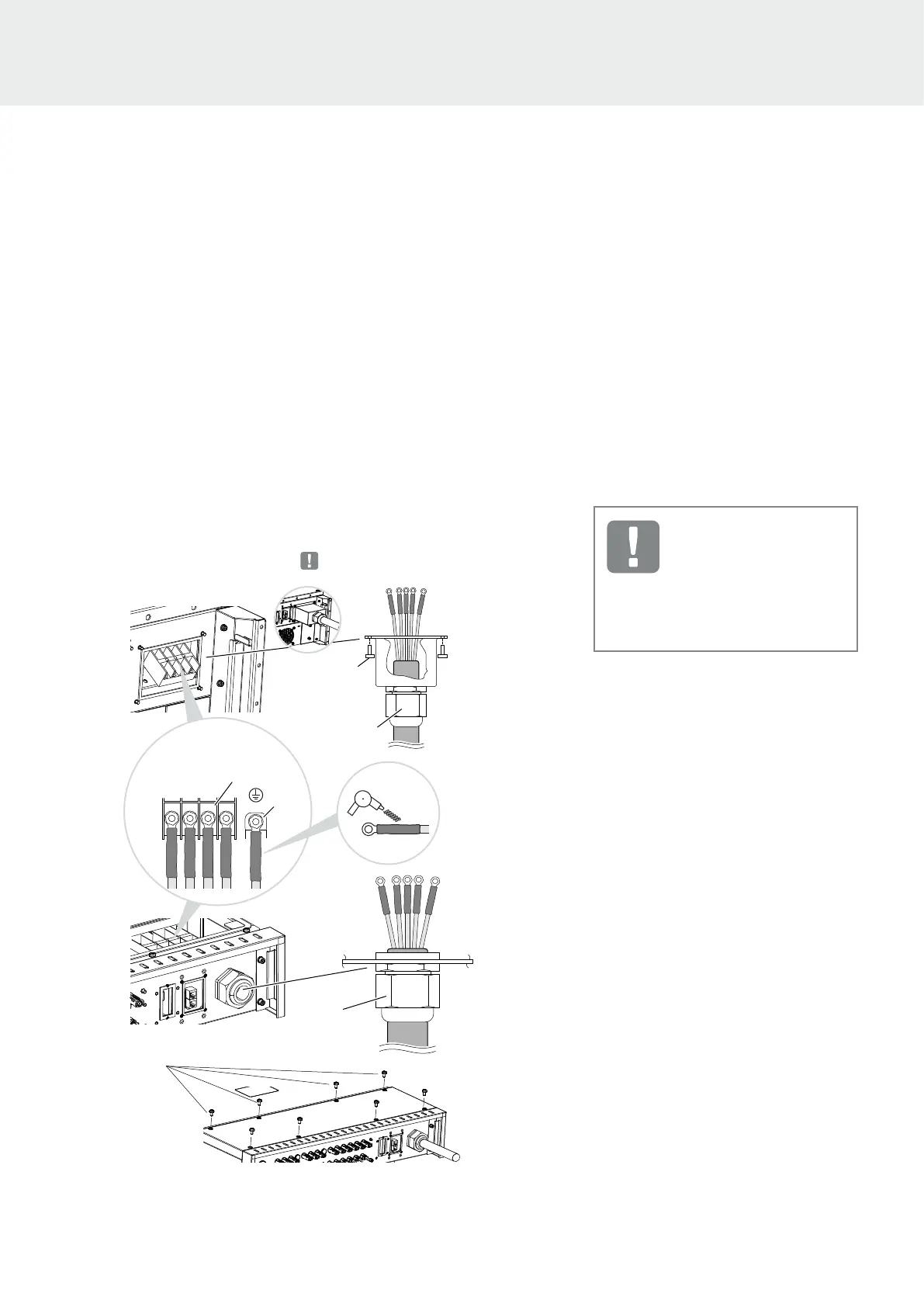

Fig. 17: Sealing AC connection
IMPORTANT
INFORMATION
Make sure that the phases of the
AC terminal and in the mains sup-
ply match.
3
2
3
4
5
6
7
8
9
10
1
