Step 4: Install Wiring

1. Use a Phillips screwdriver to unscrew the wiring cover, grasp and press it down

gently to remove it.

2. Unscrew the cable clamp and take it down.

3. According to the wiring diagram pasted inside the wiring cover, connect the

connecting wires to the corresponding terminals and ensure all connections are

firmly and securely installed.

4. Reinstall the cable clamp and wiring cover.

Note: When connecting the wires of indoor and outdoor units, the mains power should

be cut off.

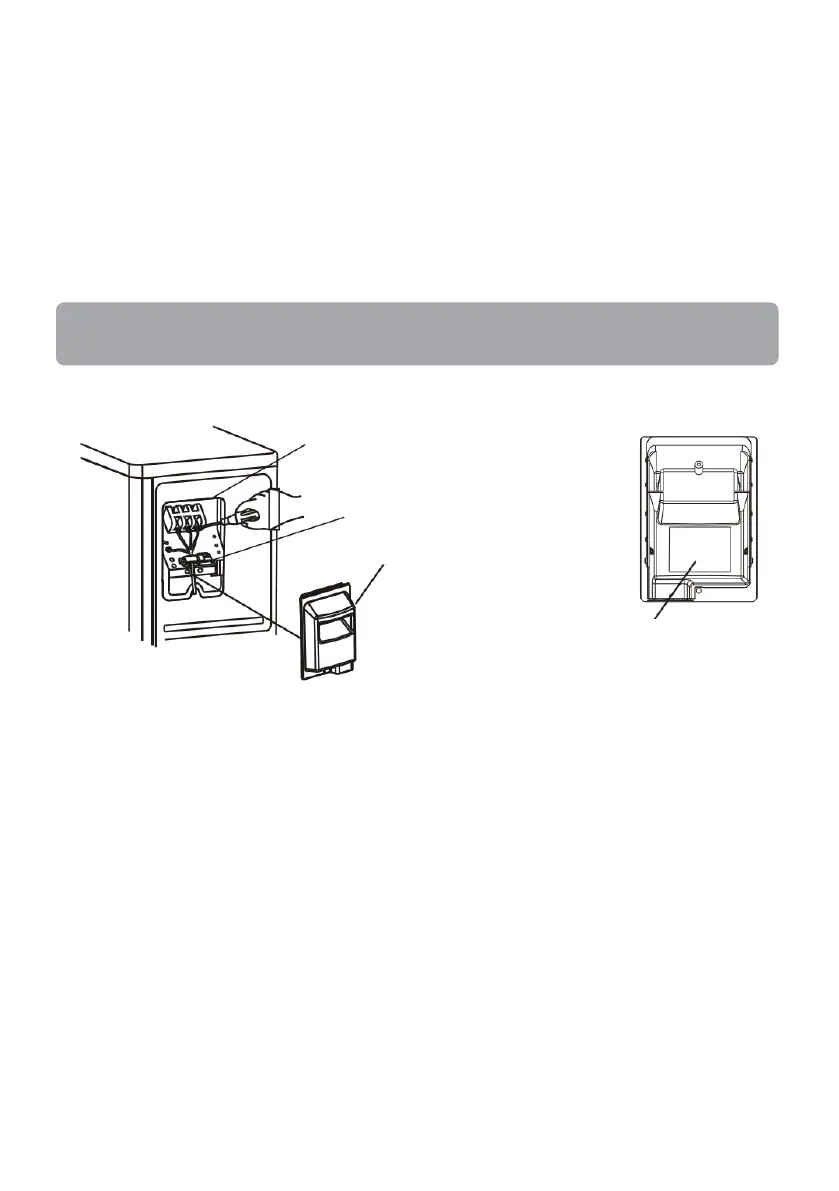

Wiring cover

Cable clamp

Wiring diagram

Terminal block
