Step 2: Install Drainage Hose: This step is only

for heating pump models.

1. Insert the drainage joint to the hole at

the bottom of the outdoor unit.

2. Connect the drainage hose to the joint

ensuring a tight connection.

Step 3: Fix Outdoor Unit

1. According to the outdoor unit installation dimensions, mark the installation

position for the expansion bolts.

2. Drill holes and clean the concrete dust and place the bolts.

3. If applicable install 4 rubber stops on the hole before place the outdoor unit

(Optional). This will reduce vibrations and noise.

4. Place the outdoor unit base on the bolts and pre-drilled holes.

5. Use wrench to fix the outdoor unit firmly with bolts.

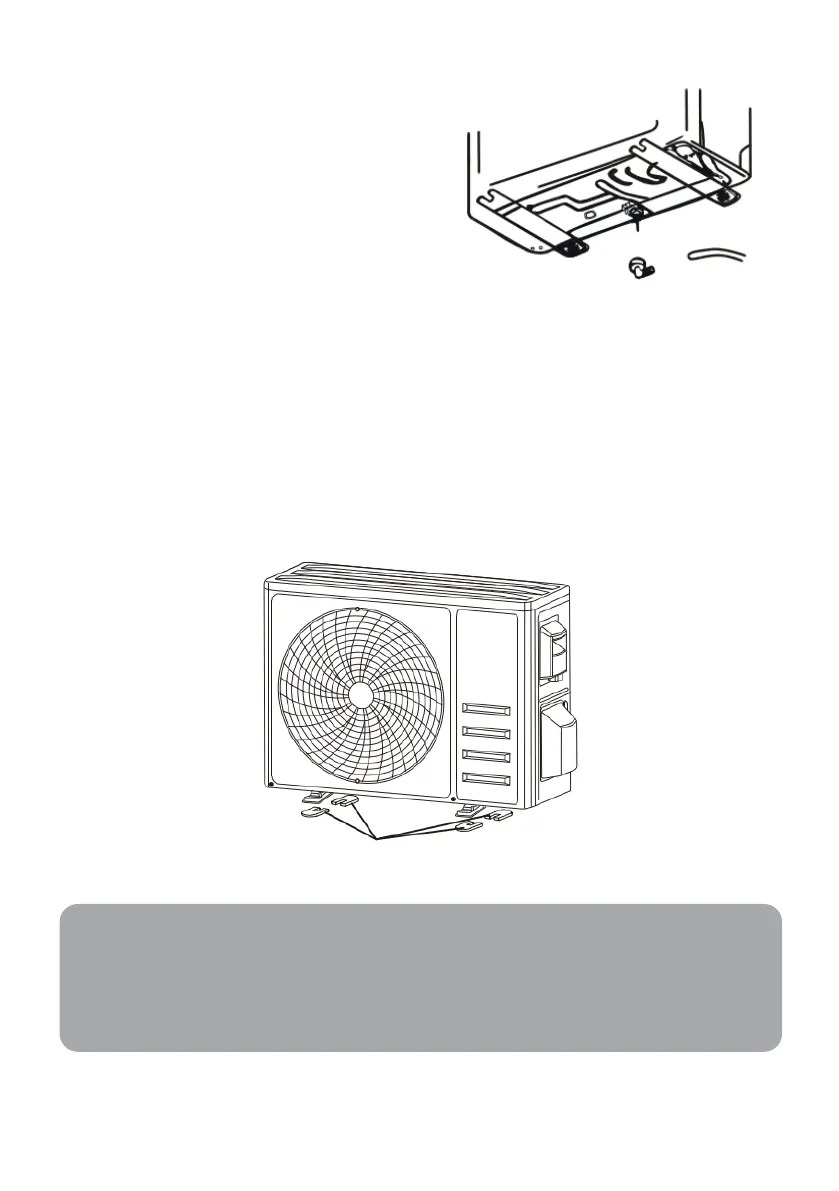

Drainage hose

Drainage joint

Install 4 rubber stops (Optional)

Note:

The outdoor unit can be fixed on a wall-mounting bracket. Follow the instruction of

the wall-mounting bracket to fix the wall-mounting bracket on the wall and then

fasten the outdoor unit on it and keep it horizontal. The wall-mounting bracket must

be able to support at least 4 times of the weight of the outdoor unit.
