Step 3: Drill the Wall Hole
A hole in the wall should be drilled for refrigerant piping, the drainage pipe and connecting
cables.

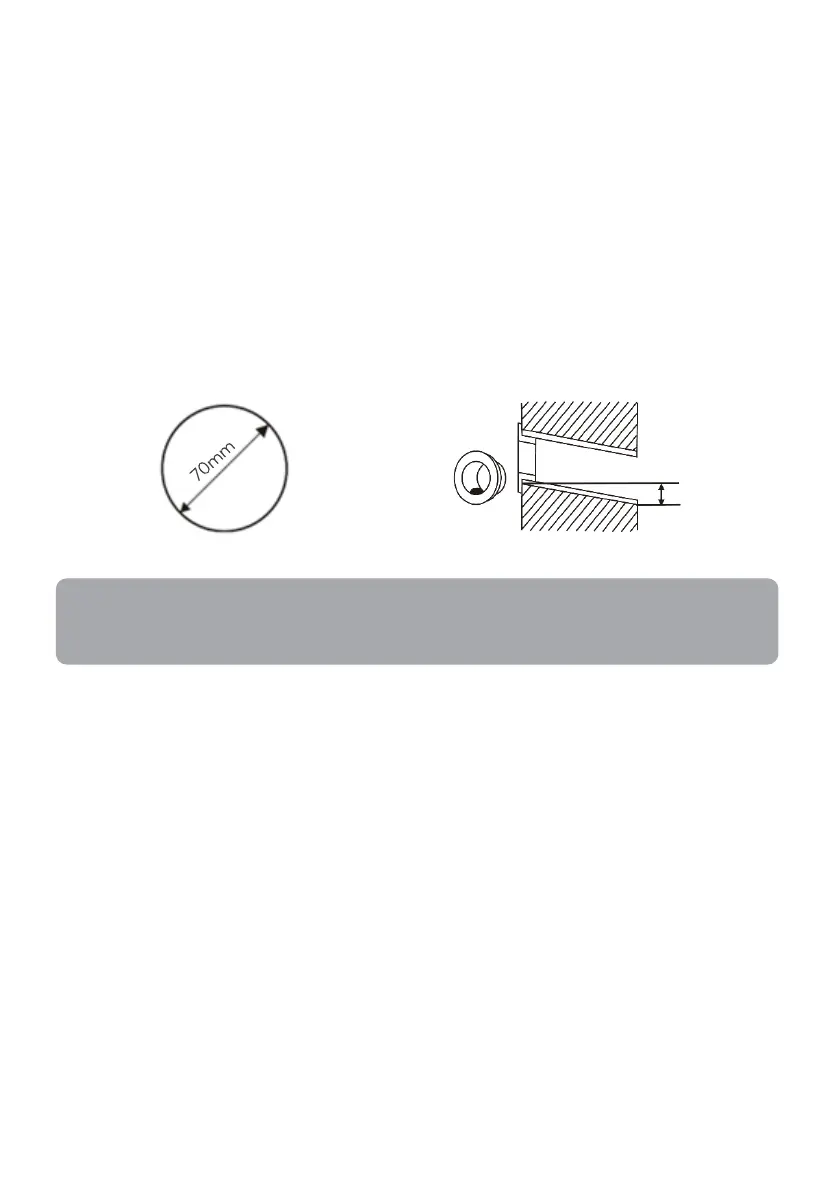

1. Determine the location of the wall hole based on the position of the mounting
plate.
2. The hole should have a diameter of at least 70mm and a slight oblique angle to
facilitate drainage.
3. Drill the wall hole using a 70mm core drill, maintaining a slight oblique angle, with
the indoor end being about 5mm to 10mm lower.
4. Place the wall sleeve and wall sleeve cover (both are optional parts) to protect the
connection points.
Wall sleeve cover
(optional)
Wall sleeve
(optional)
Indoor
Outdoor
5-10mm
Small oblique angle
Caution:
When drilling the wall hole, avoid wires, plumbing and other sensitive components.
