Installation
Instructions
Page 16
2
3
Plastic
Frame
Window Filler
Panel
Side Retainer
5 16 long
hex-head
/
Shipping Packaging
Plastic tie
Top
View
Air Conditioner
Cabinet
Plastic
Frame
" " Section
Window
Filler
Panel
Locking
Screw
Hole
Window
inner Sill
Sill
Angle
Window
outer Sill

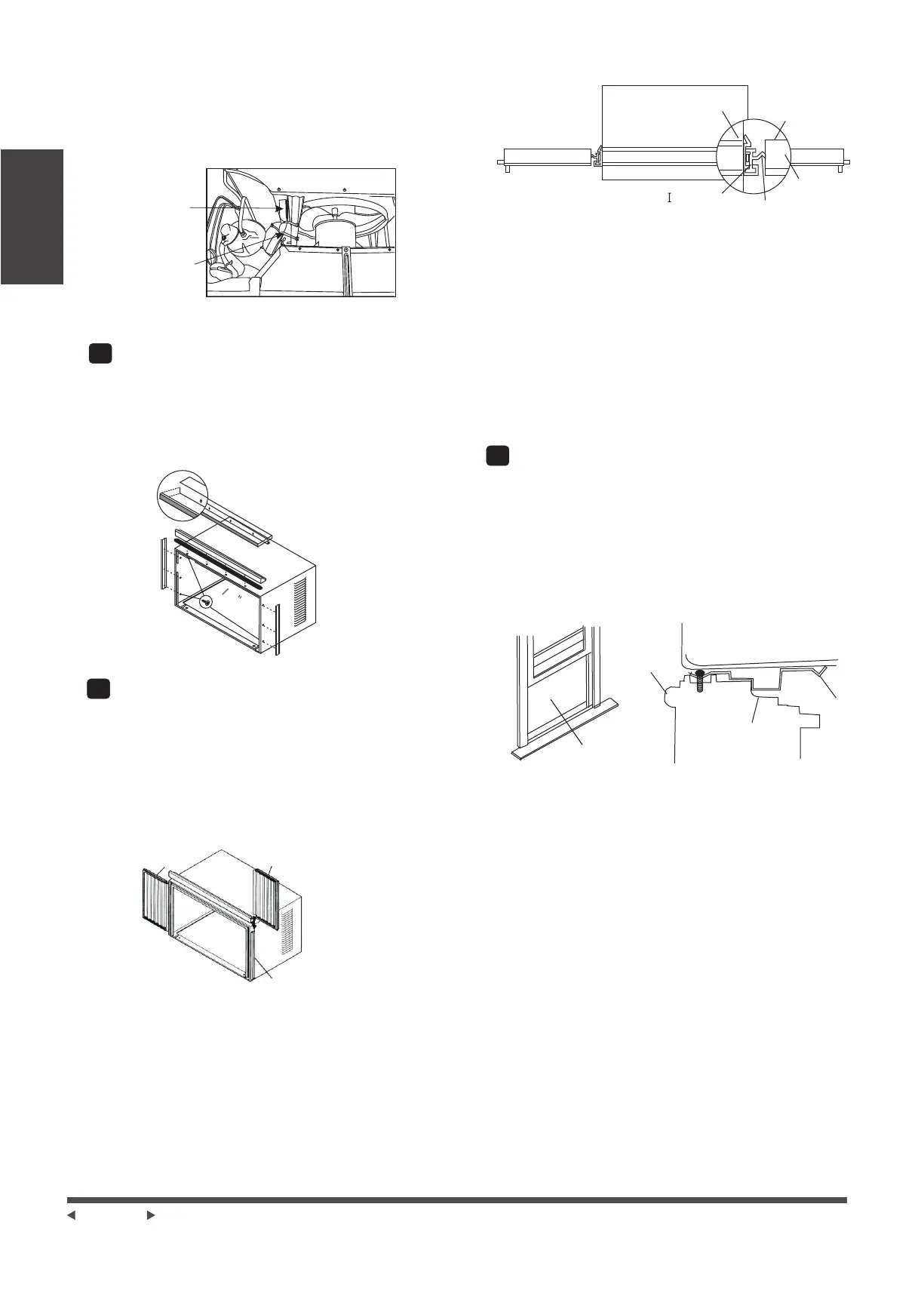

10. Your unit may come with internal packaging.
This packaging must be removed prior to installing
the air conditioner back into the cabinet.(see Fig .7).
1. Attach foam gasket to top angle above holes as
shown in Fig.6.
2. Install top angle and side retainers to cabinet as
shown in Fig.8(10 screws).
3. Insert top and bottom legs of window filler
panel frame into channel in the top angle and
bottom rail. Do both sides.
4. Insert washer head locking 7/16” screws (2)
into holes in top leg of filler panel frame (see
step 6). Do not totally tighten. Allow leg to slide
freely. Screwswill be tightened after section 6.
1. Open window and mark center of window inner
sill as shown(Fig.11).
2. Place cabinet in window with bottom sill angle
firmly seated over window sill as shown. Bring
window down temporarily behind top angle to
hold cabinet in place(Fig.12).
3. Shift cabinet left or right as needed to line up
center of cabinet on center line marked on inner
sill.
4. For wooden window: Fasten cabinet to window
inner sill with two screws into holes (Fig.13) (You
may wish to pre-drill pilot holes).
For Vinyl-Clad window: Place two safety locks into
the holes located in the bottom of the cabinet and
drive two #10X1/4" pan-head Phillips locking scr-
ews through the safety locks into the cabinet as
shown (Fig.13B).
5. Remove protective strip from adhesive side of
Bottom Rail Foam Seal.
Apply Seal over screws fastening bottom rail to
window inner sill.
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11 Fig.12
Install top angle and side Bracket
Assemble Window Filler Panels
4
Place Cabinet in window
Do both sides.
Fig.9 & Fig.10).
side retainer on the side of the cabinet (see
2. Slide "I" section of window filler panel into
1. Place cabinet on floor, a bench, or a table.
