BRIEF DESCRIPTION
The cooker hood was designed to re-
move kitchen fumes. It requires installa-
tion of a conduit discharging used air to
the outside. The conduit (usually a pipe Ø
150) shall not be longer than 4 – 5 m. The
hood can operate as an odour absorber
after installation of an charcoal f
ilter. In
such case a conduit discharging used air
to the outside is not necessary, but it is
recommended to install an air exhaust
guide.
The cooker hood is an electrical appli-
ance manufactured according to class II
of shock protection.
It has its own lighting and an exhaust fan
which can be set to one of four rotational
speeds.
The hood was designed for permanent in-
stallation on a vertical wall over a gas or
electric cooker.

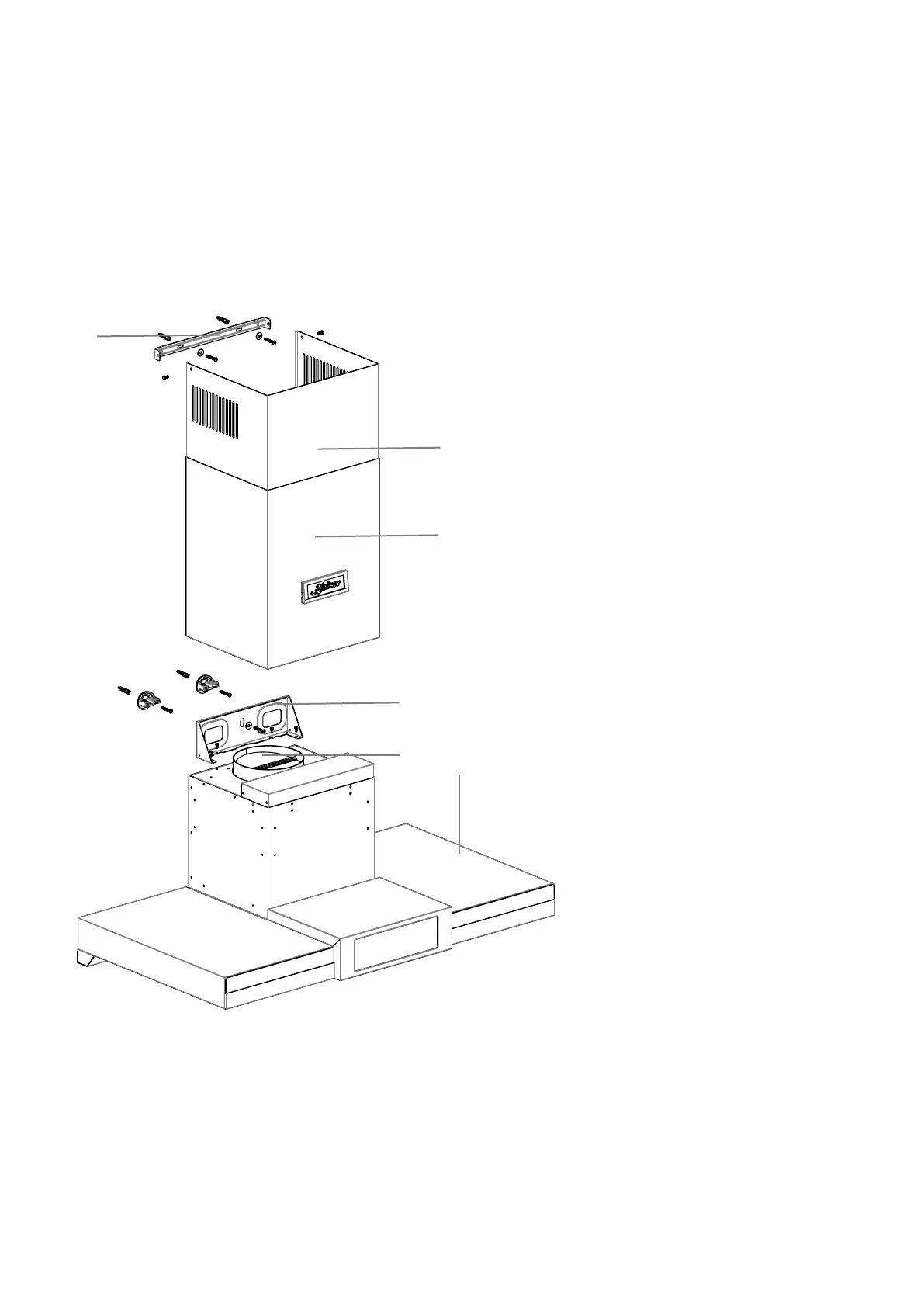

LOCATION DRAWING
Arrangement of the functional elements:
1. Hood body, equipped with lights, en-
gine unit and electronic programma-
ble control.
2. Masking cover of the hood body.
3. Wall hanger of the hood body.
4. V-flap for the extracting conduit.
5. Top telescopic masking column.
6. Wall hanger of the masking column.
1
2
5
6
3
4
