4 Conguration, conductor lengths

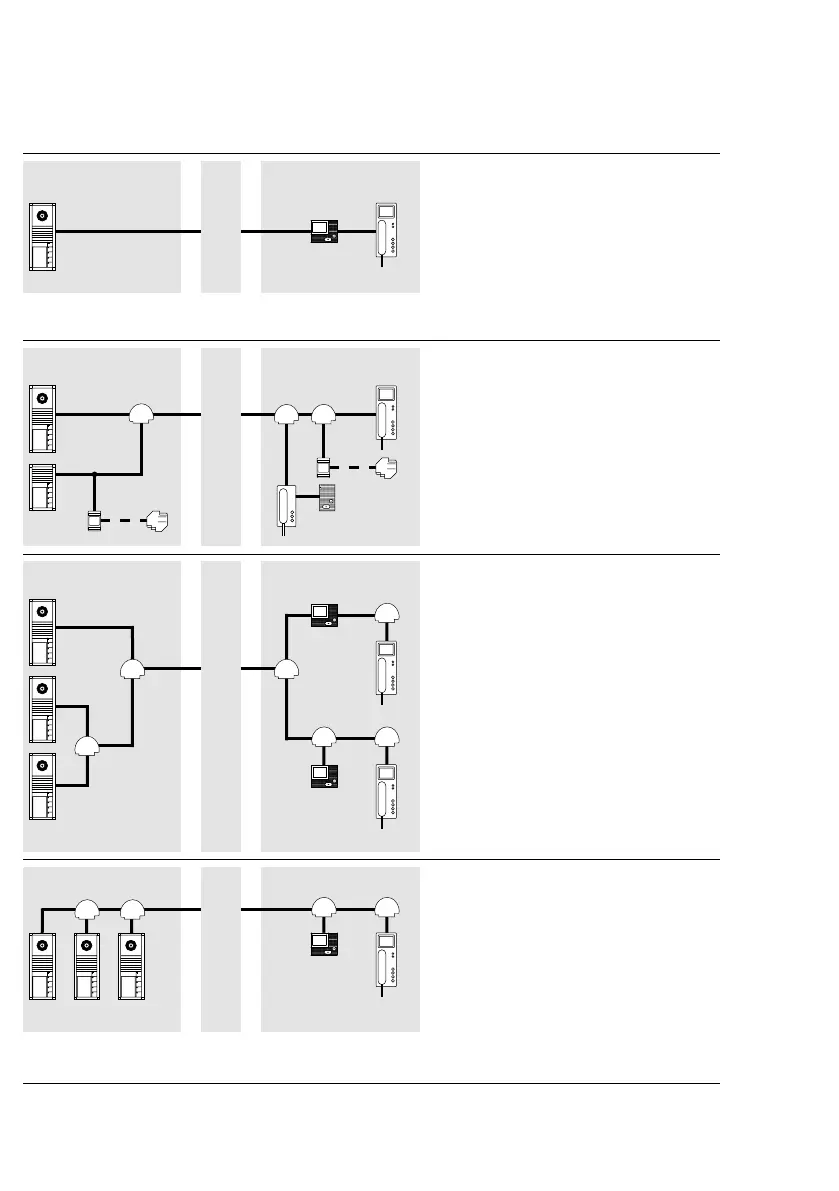

Bus distributor for ush mounted junction boxes
Camera branch Monitor branch
Distributor
Camera branch:
No bus distributor required with a door
station.
Monitor branch:
No bus distributor required when looping
through from bus telephone to bus telephone.
The integrated bus distributor in the bus tele-
phones is used.
Attenuation:
No attenuation to be considered.
BAA 650-... BAA 650-...
Distributor
BAA650-… in the camera branch:
Connection of audio users (e.g. BTLM650-…
or BTLE050-…) or users for switching and
control functions.
BAA650-… in the monitor branch:
Connection of audio users (AIB150-…, BTS/
BTC/BFC850-…, DCA650-…) or users for
switching and control functions.
Attenuation:
No attenuation to be taken into consideration
if decoupled.
BVVS 650-... BVVS 650-...
BVVS
BVVU
BVVUBVVU
Distributor
BVVS650-… in the camera branch:
More than one video door station in the
camera branch with “star shaped“ conductor
routing.
BVVS650-… in the monitor branch:
Within the In-Home bus: Video more than one
side circuit is required.
Attenuation:
The attenuation from BVVS650-…,
BVVU650-… and the conductor length must
be taken into consideration.
BVVU 650-... BVVU 650-...
Distributor
BVVU650-… in the camera branch:
More than one video door station in the
camera branch with “loop through“ con-
ductor routing.
BVVU650-… in the monitor branch:
Connection of a bus telephone with monitor
to a side circuit with “looped through“ con-
ductor routing.
Attenuation:
The attenuation from BVVU650-… and the
conductor length must be taken into consid-
eration.
14
