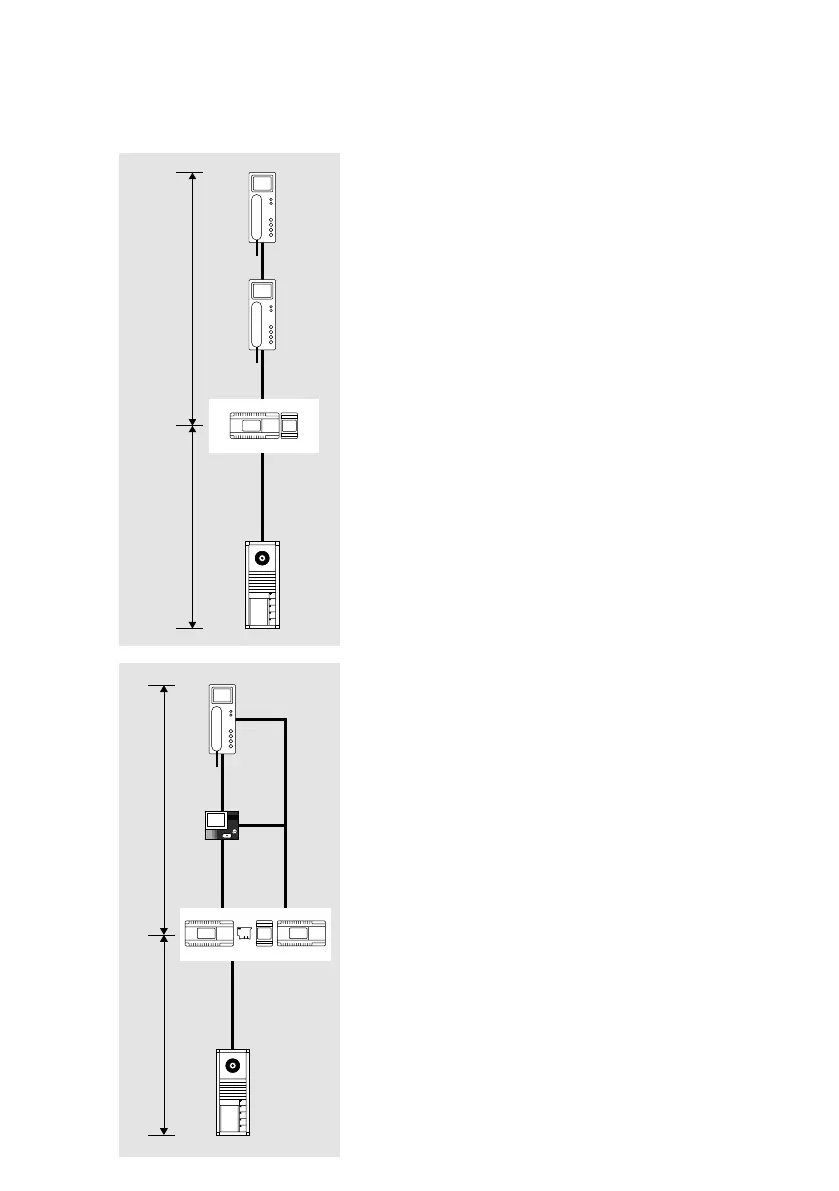

Installation with YR
Installation with J-Y(ST)Y, increased range
Camera branch
max. 150 m/492 ft/45 dB
Monitor branch 1
max. 200 m/656 ft/55 dB
Camera branch
max. 100 m/328 ft/45 dB
Monitor branch
max. 100 m/328 ft/45 dB
Installation with YR
Systems can also be congured with
using conductor material YR with a
core diameter of 0.8mm. However,
this will signicantly reduce oper-
ating ranges. Even if parts of the
system are congured using YR
0.8mm core diameter conductors,
the reduced range will still come
into effect.
Conductor material YR cable with
0.8mm core diameter:
• max.100m from the bus video
line rectier to the most distant user
in the monitor branch
• max.100m from the bus video
line rectier to the most distant user
in the camera branch
If it is necessary to use bus distrib-
utors within the installation, the
attenuation of the conductor mate-
rial and the bus distributor must be
taken into consideration.
With a core diameter of 0.6mm, the
range is halved.
Installation is also possible in a
multiple line system with 0.8mm
conductor material.
Installation with J-Y(ST)Y,
increased range
The ZBVNG650-… must be plugged
into the BVNG650-…!
When using cable material J-Y(ST)Y
with 0.8mm, it is possible to
increase the distance from the
bus video line rectier to the bus
telephones with colour monitor. In
this case, each bus telephone with
colour monitor must be provided
with an additional power supply
(e.g. video line rectier VNG602-…).
At the bus video line rectier
BVNG650-… the operating mode
switch must be set to 2.
Conductor material J-Y(ST)Y cable
with 0.8mm diameter:
• max.200m from the bus video
line rectier to the most distant user
in the monitor branch.
In a multiple line system this
facility can be used to increase the
range in every line.
In the case of a parallel call to sev-
eral bus telephones with video, the
admissible conductor length of the
power supply must be noted.
For more information, see
page128
Within the line, the maximum length
of the conductor material must not
exceed 1,500m.
Installation is also possible in a
multiple line system with 0.8mm
conductor material.
13
