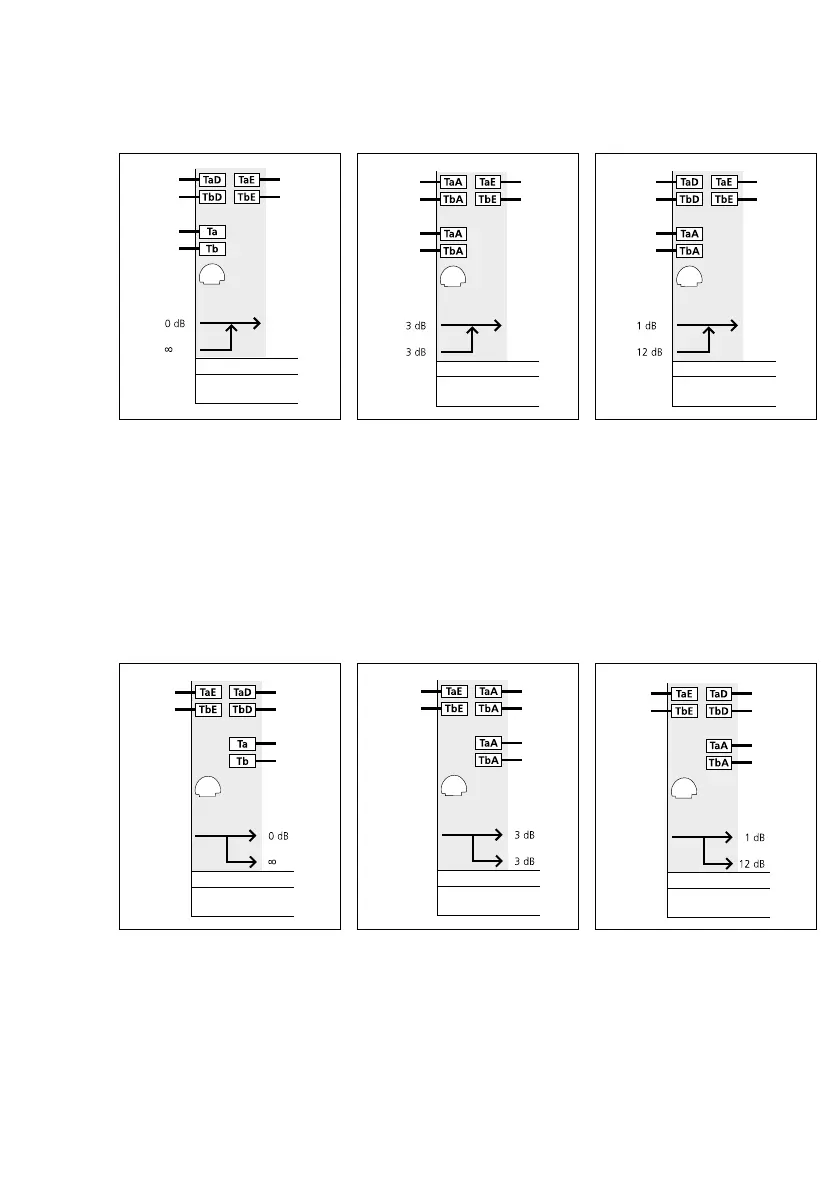

BAA 650-...
Direction
Distributor
Audio user
Video
doorstation
Attenuation
In the camera branch
BAA 650-...
Direction
Distributor
Audio user
Attenuation
Bus tele-
phone with
monitor
In the monitor
branch
BVVS 650-...
Direction
Distributor
Video
doorstation
Video
doorstation
In the camera branch
Attenuation
BVVS 650-...
Direction
Distributor
Direction
Distributor
Direction
Distributor
In the monitor
branch
Attenuation
BVVU 650-...
Direction
Distributor
Video
doorstation
Video
doorstation
In the camera branch
Attenuation
BVVU 650-...
Direction
Distributor
Attenuation
Bus tele-
phone with
monitor
Bus tele-
phone with
monitor
In the monitor
branch
BAA650-… in the
camera branch
Connection of a door station
without video (e.g. BTLM650-…/
BTLE050-…) or switching and con-
trol devices (BSE/BSM/BEM650-…)
at the Siedle In-Home bus: Video.
For more information, see
page72
BVVS650-… in the
camera branch
When more than one video door
station is operated within a camera
branch.
For more information, see
page60
BVVU650-… in the
camera branch
When more than one video door
station is operated within a line.
BAA650-… in the
monitor branch
Connection of pure audio users
(AIB150-…, BTS/BTC/BFC850-…,
DCA650-…) or users for switching
and control functions (BSE/BSM/
BEM650-…) within an Siedle
In-Home bus: Video.
For more information, see
page68
BVVS650-… in the
monitor branch
When more than one rising main/
side circuit is required within the
Siedle In-Home bus. At the outputs,
additional distribution is required via
BVVU650-… or BAA650-… Direct
device connection is not admissible.
BVVU650-… in the
monitor branch
Decoupling a video user from a side
circuit into the apartment.
For more information, see
page50
Attenuation values
15
