3. ASSEMBLY AND
NETWORK CONNECTION
The eNet server is designed to be
installed in the distributor. It can
also be used on a mobile device for
commissioning on the construc-
tion site, in the workshop or at the
desk – using the enclosed plug-in
power supply unit.
For communication with eNet ac-
tuators and transmitters, the eNet
server has an internal antenna
and a bus line connection for wired
communication with eNet DRA
components.
Connection via a router to a local
network can take place either us-
ing a wired network connection

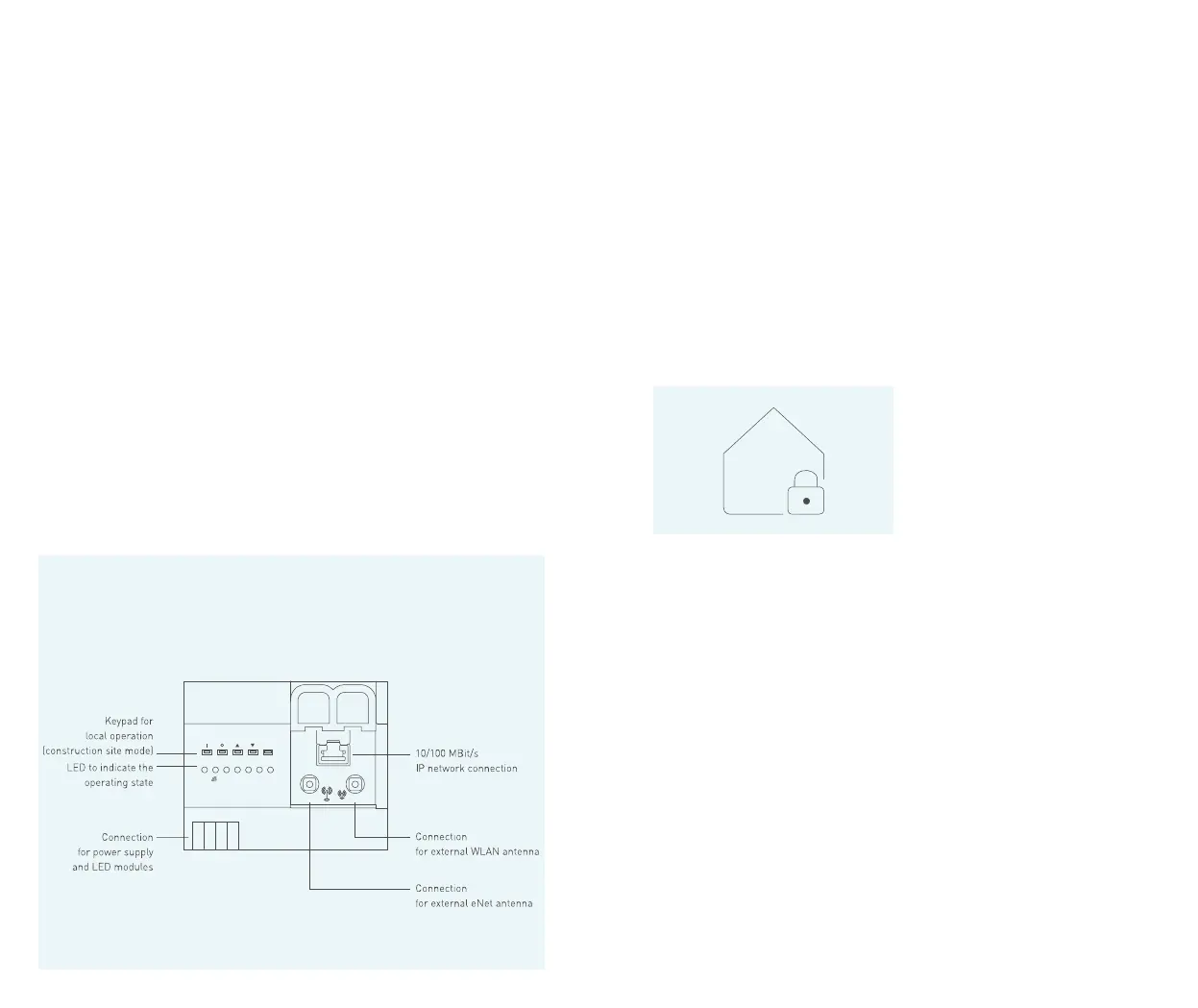

View of the eNet server
(LAN) or via the integrated
WLAN module and the internal
WLAN antenna – the choice is
yours.
Connections for an external eNet
and an external WLAN antenna
ensure operation in sub-distribu-
tors with metallic casings. These
antennae are positioned outside
the distributor.
A wired network connection (LAN)
via a router is provided for com-
missioning the eNet server for the
first time; the server is assigned
an IP address automatically via
DHCP during this process.
It is also advisable to use a network
cable for normal operation once
commissioning is complete, so as
not to be affected by any faults in
the WLAN network. Alternatively,
the eNet server can be connected
to a router via WLAN. Once the net-
work name (SSID) and the network
key have been entered, the eNet
server connects to the local WLAN
network as a client.
4. DATA SECURITY
A smart home offers many ad-
vantages. Intelligent building
technology enables convenience,
security and improved energy effi-
ciency both at home and at work.
Networking throughout the home
automates processes. An extreme-
ly wide range of devices and func-
tions can be integrated and adapted
to individual requirements.
Due to extensive networking and
individual adaptation to user be-
haviour, personal data protection
and technical data security are
particularly important issues that
have to be dealt with appropriate-
ly. This applies to all the network
devices and servers used in a
smart home.
Networked devices can constantly
exchange signals and data. This
traffic must be protected against
unauthorised viewing and access.
Sensitive and personal data – like
the number of occupants, the
times they are at home and away,
and user behaviour, for example –
becomes an issue as soon as a
network is set up within or around
a building. The system itself, as
well as the login data, must also
be protected against unauthorised
access and manipulation.
5. eNet SMART HOME secure
eNet SMART HOME protects the
system with a complete package of
measures.
Encryption
All wireless traffic between devices
in the eNet SMART HOME system
is encrypted. This is true for both
data traffic in the local network and
controlling via the remote access
solution.
This prevents interception of trans-
mitted data.
Server location
All internet services are carried out
exclusively through servers based
in Germany.
113112 eNet _ Server
