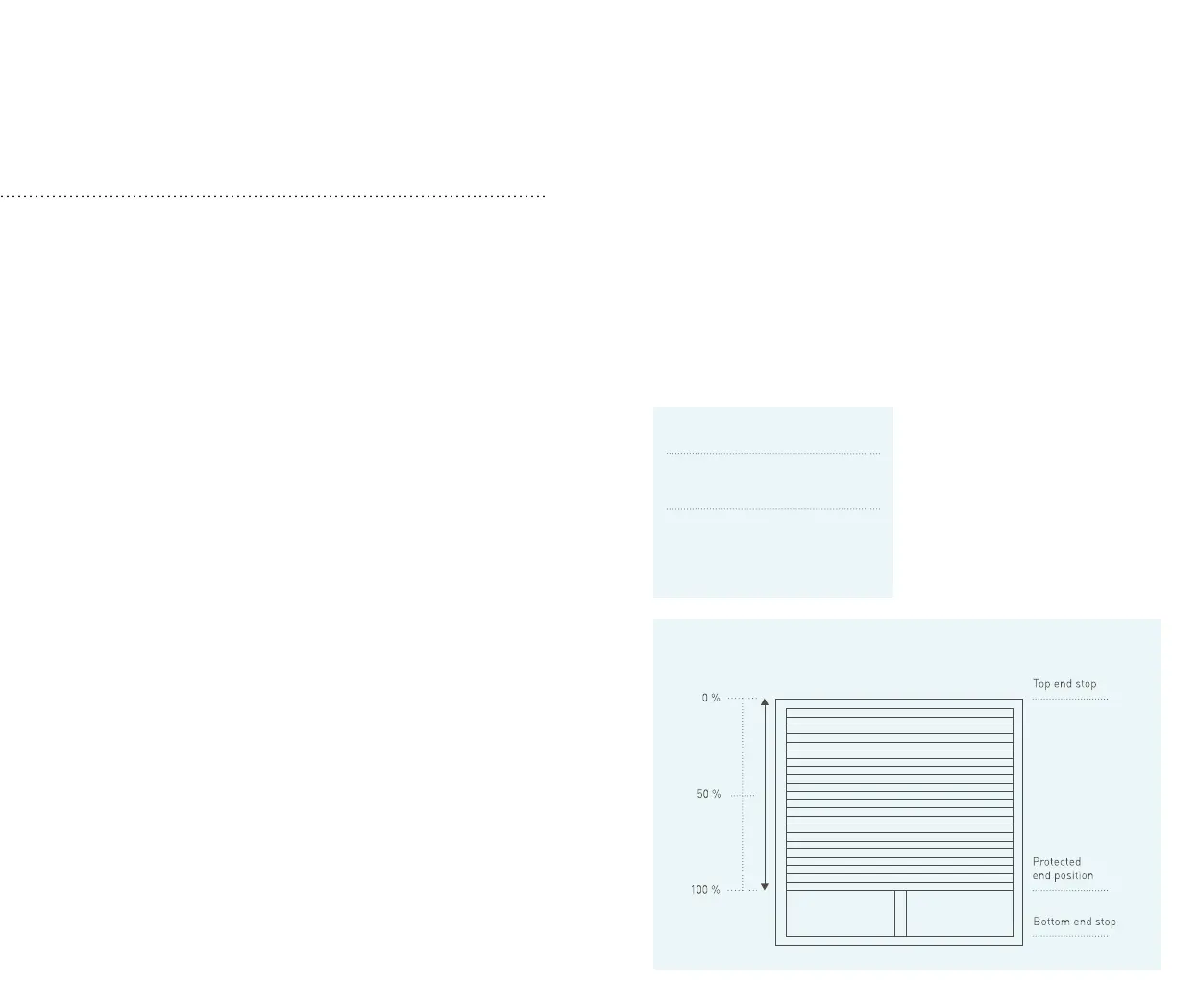

Top end stop
0 %
50 %
100 %
Protected
end position
Bottom end stop
SHADING SOLUTION POSITIONS
0 %
Top end stop/retracted
100 %
Bottom end stop/extended
BLINDS, ROLLER SHUTTERS
AND AWNINGS
1. FUNCTION
Blind actuators control electrical-
ly operated slatted blinds, roller
shutters, awnings and other shad-
ing solutions. Their main job is to
supply the motor with power for
the desired direction – “upwards”
or “downwards”. To prevent dam-
age to the motor, it is impossible to
supply both the actuator outputs
with power at the same time.
Blind actuators contain two relays
and therefore have three switching
states:
• No output switched on: The
shading solution remains sta-
tionary.
• “Upwards” output switched on:
The shading solution moves up-
wards. When the shading solu-
tion reaches its end stop, the
end stop switch integrated in the
motor reacts and interrupts the
electricity flow.
• “Downwards” output switched
on: The shading solution moves
downwards. When the shading
solution reaches its end stop, the
end stop switch integrated in the
motor reacts and interrupts the
electricity flow.
All the eNet blind actuators can
move the connected shading solu-
tions into defined positions. But for
this to happen, the actuators must
be adapted to the shading solu-
tion’s running times.
End stop and end position
A shading solution’s top and bot-
tom end stop is fixed by the running
length. The solution is switched off
by the end stop switches, which
switch off the drive when the top or
bottom end stop is reached – pro-
vided that the solution is adjusted
correctly. The end stop switches
work independently of the switching
device. A blind switch can thus re-
main in the switching position and
supply the drive with power even
after an end stop has been reached.
The shading solution posi-
tions are managed using the
switch-on times for mov-
ing upwards and downwards.
During the commissioning pro-
cess, the control must therefore
save the shading solution’s running
time for travelling from the top to
the bottom.
Optimum use can be made of sunlight by automating blinds, roller
shutters and awnings. The technology simply adapts to the lighting
conditions. If it gets too bright, the slats adjust and dim. If it gets
darker, the blinds raise again. That way, users enjoy healthy, natu-
ral light and save on electricity too.
2. SHADING SOLUTION
POSITIONS
The switching device’s switch-
ing state says nothing about the
shading solution’s position. So
that shading solutions can be re-
liably moved to a given position – if
possible automatically and from
any other position – the outputs’
switch-on times are permanently
tracked during operation.
Shading solution positions
7978 eNet _ Blinds, roller shutters and awnings
