− 42 −

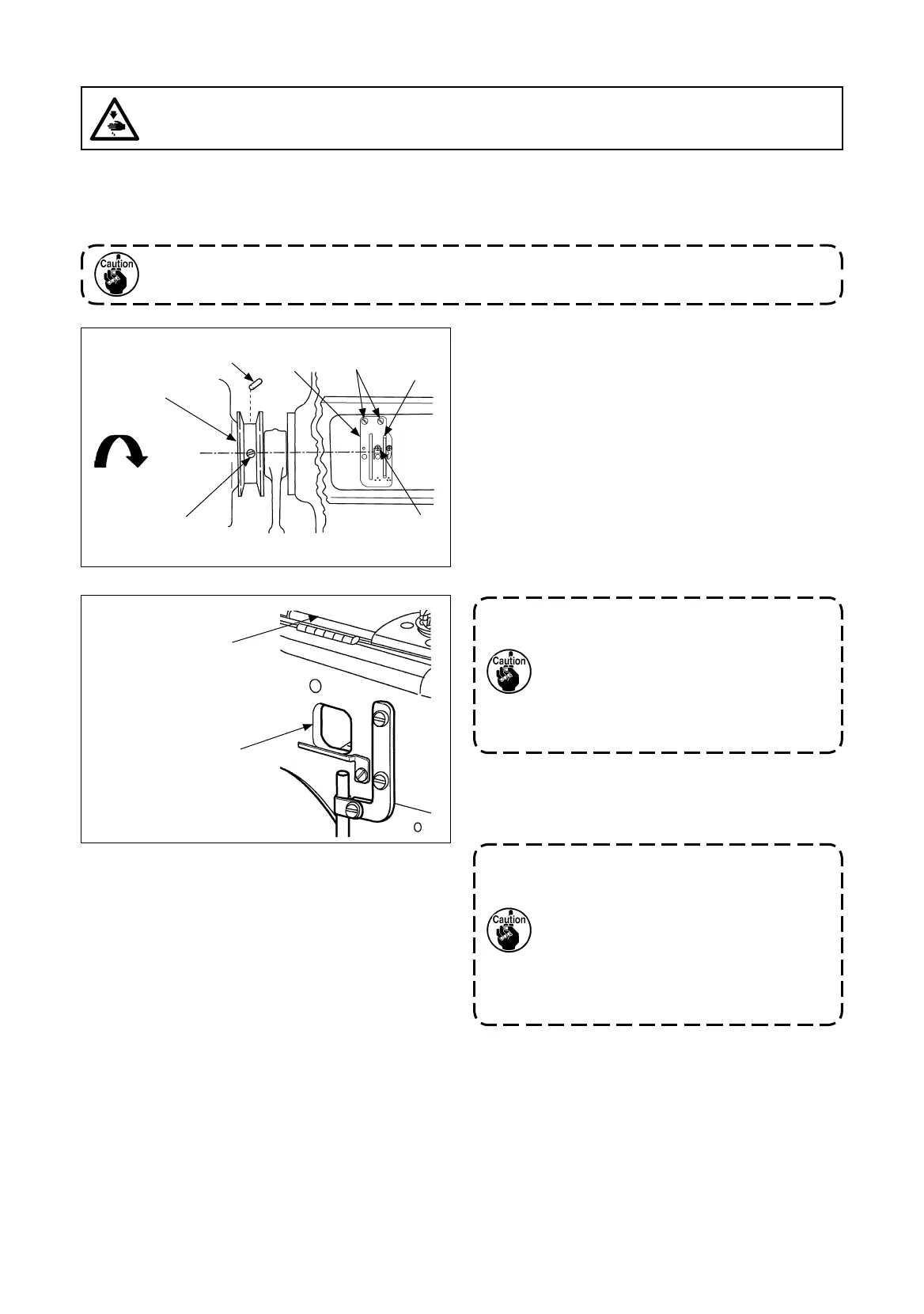

12. Adjustment of looper thread cam
(1) Adjustment of looper thread cam
The standard positioning is secured when the pulley
1
is turned counterclockwise and the fi rst setscrew
3
of the looper
thread cam
2
and another fi rst setscrew
4
of the pulley
1
are aligned to the same line.
When two main shaft setscrews
4
and
5
of the pulley
1
are turned counterclockwise, the fi rst screw
functions as the main shaft contact setscrew
4
.
(2) Adjustment of looper thread cam
1) Open the center top cover
6
, loosen the setscrew
7
, and remove the cam thread path base
8
.
2) Turn the pulley
1
counterclockwise and confi rm
whether the fi rst looper thread cam setscrew
3
stays
on the same line with the fi rst setscrew
4
of the
pulley
1
.
If the looper thread cam setscrew
3
seems to be
displaced, loosen two setscrews
4
and
5
and turn
the looper thread cam
2
forward and backward for
adjustment. Then, tighten the setscrew
4
.
Subsequently, tighten another setscrew
5
.
1. The looper thread cam
2
can be adjust-
ed through the peep window. However,
since the inside is dark, a proper light
(pen light or the like) should be used
during adjustments.
2. If the standard position is not secured
for the looper thread cam
2
, this can
be a cause of stitch skipping.
3) Install the cam thread path base
8
so that it does not
touch the right and left faces of the looper thread cam
2
. Then, tighten the setscrew
7
.
At the time of looper thread cam
2
adjust-
ments, do not move the looper thread cam
2
to the right and left.
If it is moved to the right and left, the looper
thread cam
2
may come in contact with the
right/left side face of the cam thread path
base
8
groove.
Rotating
direction
Same
line
Looper thread cam
adjustment and peep
window
6
WARNING :
Perform the work after turning OFF the power to prevent accidents caused by the abrupt start of the
sewing machine.
1
5
4
8
2
3
7
