− 43 −

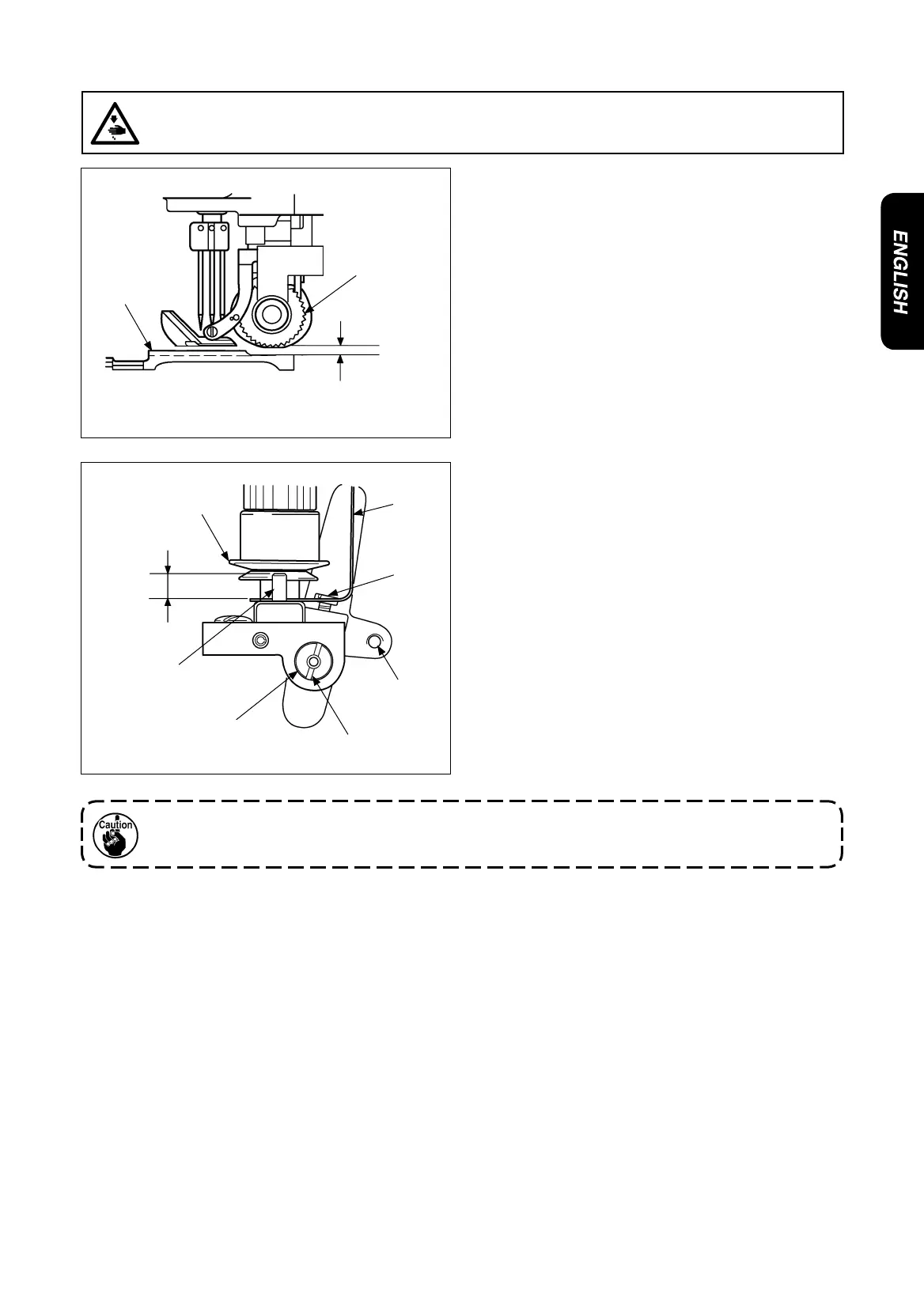

13. Adjustment of tension disk fl oating
(1) Adjustment of tension disk fl oating
The standard positioning is such that tip of the disk fl oating
pin
3
comes in contact with the upper tension disk
4
when the upper feed roller
1
rises by 1.0mm above the
upper face of the throat plate
2
and that the upper tension
disk
4
keeps fl oating when the upper feed roller
1
rises
further.
The standard size is 6.5mm between the tip of the disk
fl oating pin
3
and the upper face of the thread guide
5
.
(2) Adjustment of tension disk fl oating
1) Insert a screwdriver in the groove of the tension
fl oating shaft
8
and loosen the setscrew
7
of the
lift lever
6
. Then, turn the tension fl oating shaft
8
clockwise.
2) Adjust height of the disk fl oating pin
3
to 6.5mm and
tighten the setscrew
7
.
1
2
1.0mm
Top surface
of the throat
plate
6.5mm
4
5
7
6
Groove
3
If proper positioning is not secured for the disk fl oating pin
3
, the needle thread and/or the looper
thread cannot be pulled out when this action is needed.
WARNING :
Perform the work after turning OFF the power to prevent accidents caused by the abrupt start of the
sewing machine.
8
