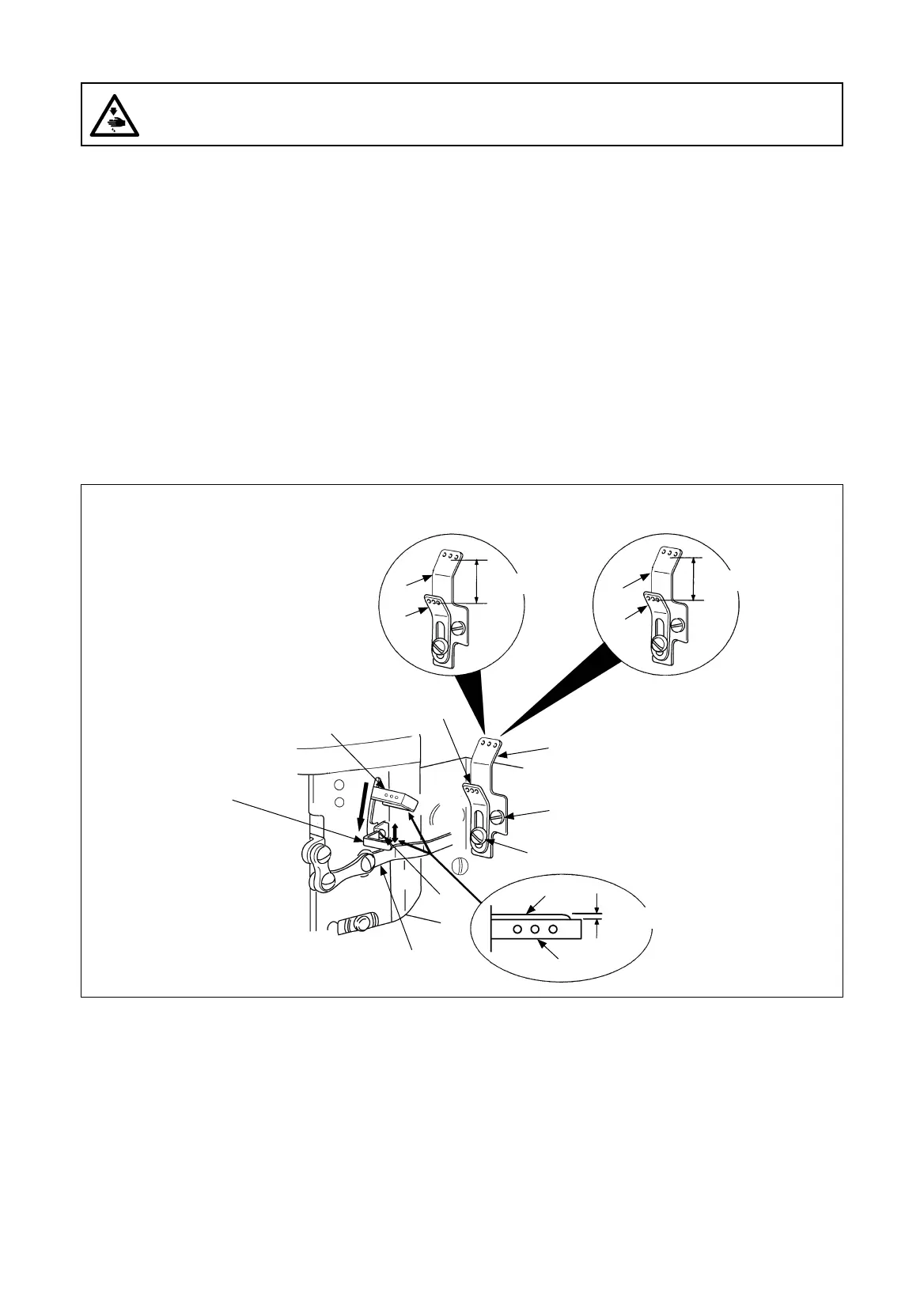

11. Adjustment of needle thread path
(1) Adjustment of needle thread path
The needle thread adjusting thread path
1
is installed just under the needle thread guide
3
so that there
is no sag of the needle thread that passes through the lever thread path
2
from the needle thread adjusting thread path
1
when the needle bar is positioned at the upper dead point.
(2) Height of needle thread adjusting path
The standard dimension from point "A" under the hole in needle thread path guide
3
to point "B" under the hole in needle
thread adjusting path
1
is 27 mm.
To especially tense the needle thread, adjust the distance from point "C" under the hole in needle thread path guide
3
to
point "D" under the hole in needle thread adjusting path
1
to approximately 36 mm.
(3) Height of needle thread support adjust plate
When the needle bar rests at its lower dead point, the standard dimension from the upper end "F" of needle thread lever
thread path
2
to the upper end "E" of needle thread support adjust plate
4
is 1.6 mm.
Standard dimension for
tightening the needle thread
Standard dimension
27mm
36mm
A
B
C
D
3
1
3
1
6
5
3
1
2
4
7
Needle thread rocking
thread take-up lever
4
2
E
1.6mm
F
Needle bar at the
upper dead point
Needle bar at the
lower dead point
WARNING :
Perform the work after turning OFF the power to prevent accidents caused by the abrupt start of the
sewing machine.
