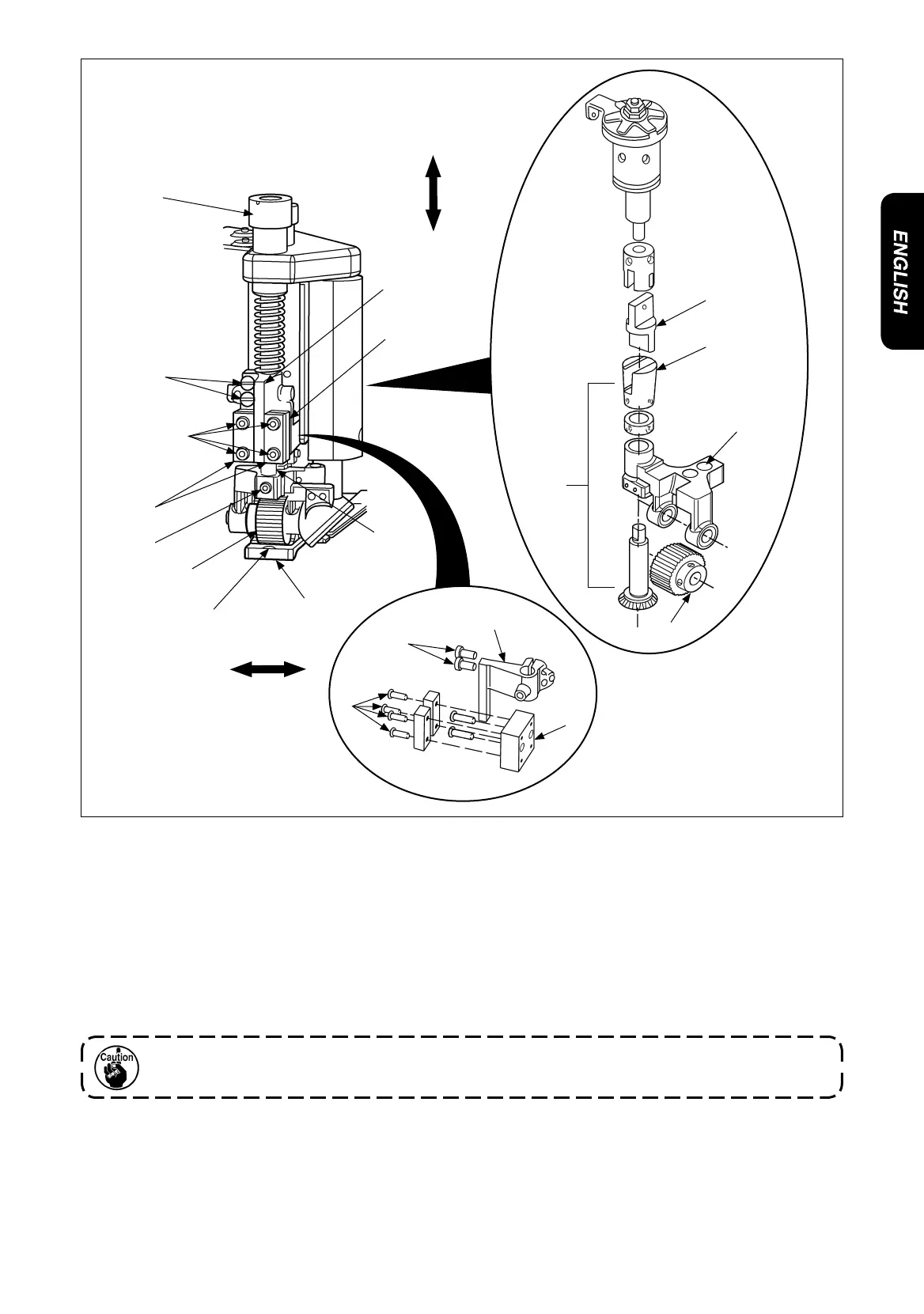

(5) Adjustment to eliminate right and left rattling in the upper feed roller
If there is a lateral play in upper feed roller
1
, loosen setscrews
!3
and adjust so that roller bar guide plate
!1
is securely
held with right and left guide plates
!4
, while eliminating the lateral play. Then, tighten setscrews
!3
.
(4) Adjustment of parallelism between upper feed roller and feed dog
Loosen setscrews
!0
. Turning pressing shaft
4
clockwise or counterclockwise, check to be sure that an equal clearance is
provided between upper feed roller
1
and the front, rear, right and left sides of feed dog
3
. Then, tighten setscrews
!0
.
The right/left clearance between the upper feed roller
1
and the feed dog
3
shall be confi rmed while
the feed dog
3
is positioned at the highest level.
(3) Clearance adjustment between upper feed roller and throat plate
1) If the adjusted standard clearance is not correct, loosen two setscrews
!0
. Raise pressing shaft
4
to place a
clearance gauge between the top face of throat plate
2
and the bottom of upper feeder roller
1
. Then, lower
pressing shaft
4
.
2) Tighten two setscrews
!0
while keeping the bottom face of roller bar guide plate
!1
rest on the top face of lateral
guide plate
!2
.
3) In the state as seen from behind, confi rm that the vertical clearance of the upper feed roller
1
is maintained at the
standard level in conjunction with the throat plate
2
.
4) In the state as seen from behind, confi rm that the front and rear right/left clearances on the right side of the upper
feed roller
1
are uniformly maintained in conjunction with the feed dog
3
.
9
!0
!3
!4
6
1
Standard clearance
toward the throat plate
2
4
!2
!1
!3
!0
!1
!2
8
7
1
Frame shaft hole
of the upper feed
roller
Right and left directions
Vertical direction
5
