− 38 −

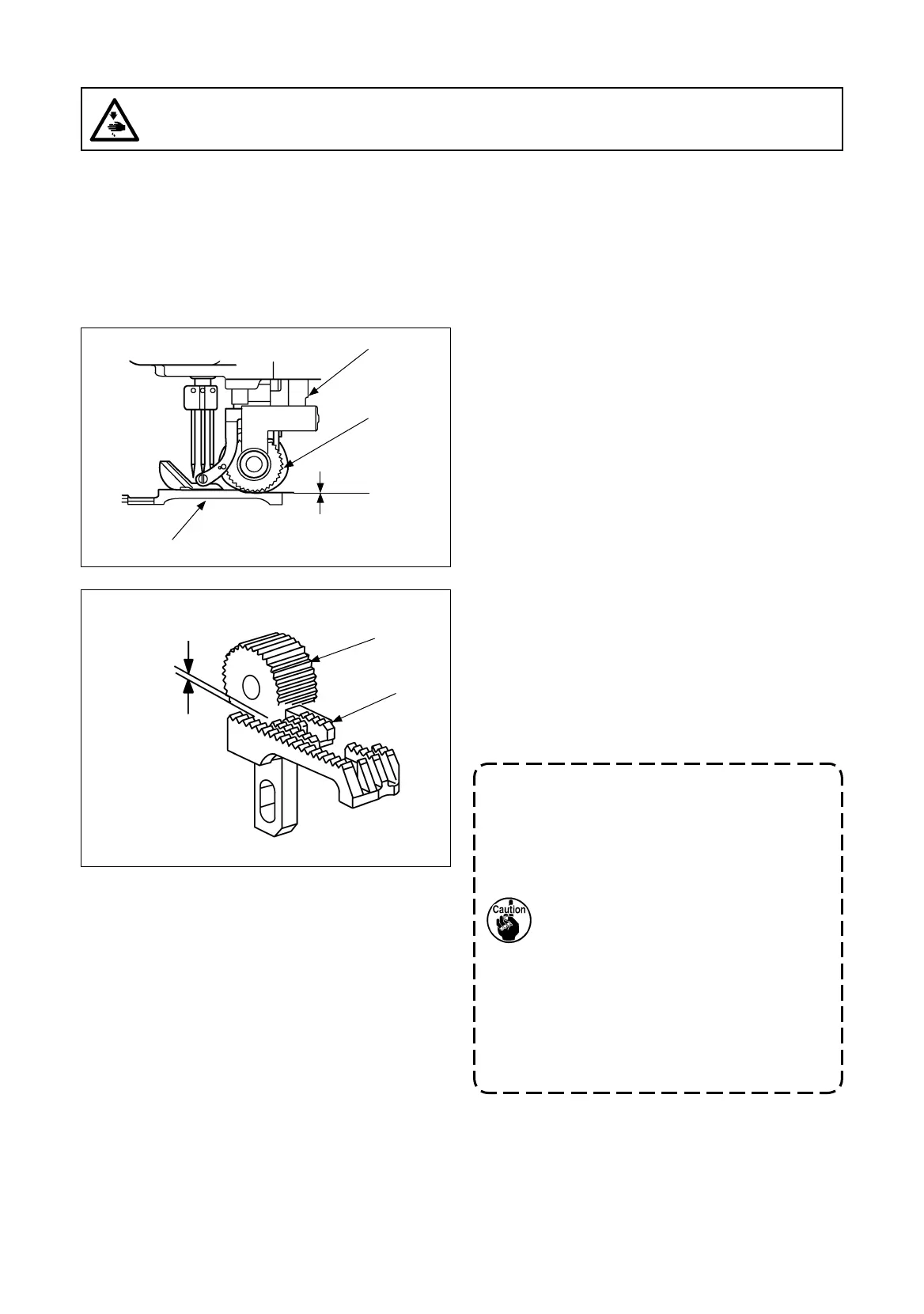

10. Adjustment of upper feed roller
(1) Adjustment of upper feed roller
1) The standard clearance is 0.08mm minimum to 0.13mm maximum between the lower position of the upper feed
roller
1
and the upper face of the throat plate
2
.
2) The standard front/rear and right/left clearances shall be uniform between the upper feed roller
1
and the feed dog
3
.
3) The standard positioning of the upper feed roller
1
shall be free from right and left rattling, permitting smooth
movement up and down.
(2) Installation of upper feed roller
1) Raise the upper feed roller pressing shaft
4
and
insert the upper feed roller pressing shaft
4
in the
frame shaft hole of the upper feed roller frame set
5
.
Then, tighten the setscrew
6
.
Simultaneously at that time, insert the lever
connecting section
8
in between the roller connecting
section
7
to join it.
2) Install the roller pressure adjusting screw
9
.
3) Confi rm that a standard clearance (Clearance gauge:
0.08mm to 0.13mm) is secured between the upper
feed roller
1
and the upper face of the throat plate
2
.
4) Confi rm that there is proper pressure at the upper
feed roller
1
, enough to feed the material cloth.
☆
Pressure adjustment
™
Turning the roller pressure adjusting screw
9
clockwise causes the pressure to increase.
™
Turning the roller pressure adjusting screw
9
counterclockwise causes the pressure to
decrease.
1. Confi rm that the upper feed roller press-
ing shaft
4
can be raised by both hands
when installing the roller pressure ad-
justing screw
9
.
2. If the upper feed roller
1
touches the
throat plate
2
and there is too much
pressure, this will be a cause of cutting
off the chain-off thread.
3. If the clearance is too much between the
upper feed roller
1
and the throat plate
2
, this will be a cause of failure in sup-
plying the chain-off thread.
4. If pressure of the upper feed roller
1
is
too weak for the material cloth, uneven
feeding may arise.
4
1
2
0.08 to 0.13mm
1
3
Unifi ed right and left
clearances
WARNING :
Perform the work after turning OFF the power to prevent accidents caused by the abrupt start of the
sewing machine.
