7.9 SHEAR PIN
This lift has a shear pin in the load-side pulley of the T-bar,
as shown in Figure 7-39. This shear pin is a safety device
designed to break in the event of an overload. Avoid break-
ingtheshearpinbyfollowingtheloadratingsspeciedin
Section 1.7 LOAD RATINGS.
An extra shear pin is included in the hardware package. In
the event of a shear pin failure, replace it immediately.
If you need to order additional shear pins, only use JET-ap-
proved parts as found in Section 10 Replacement Parts.

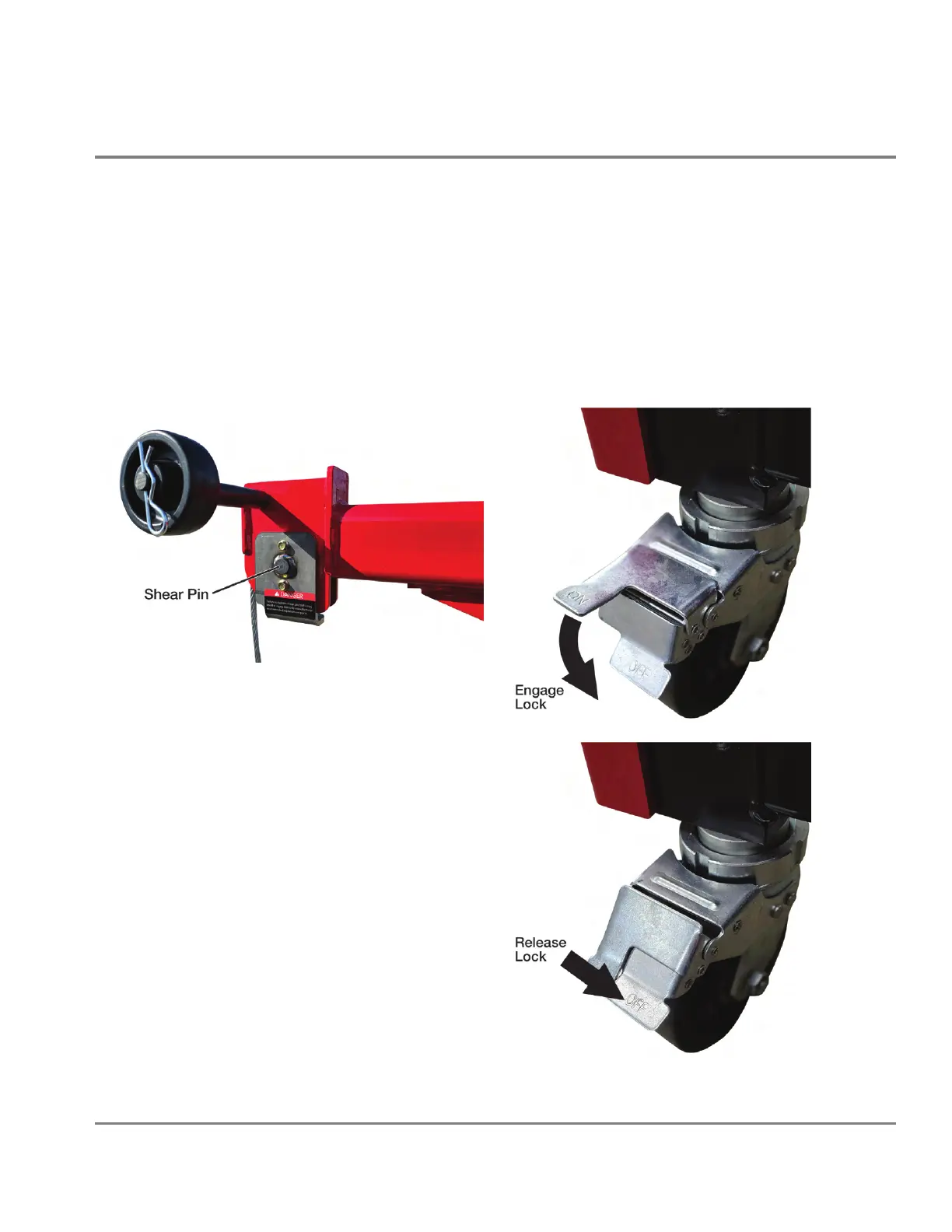

Figure 7-39: Shear Pin Location
7.10 LOCKING CASTERS
All four caster wheels have locking mechanisms designed
to keep the SkyHyker stationary and stable at the lifting
location. Always engage the locks on all four wheels before
performing any lift.
Each caster has two foot-operated levers. The left lever is
stamped “ON” and the right lever is stamped “OFF”. To en-
gage the lock, press down the “ON” lever (see Figure 7-40).
To release the lock, press down on the “OFF” lever and the
“ON” lever will raise (see Figure 7-40).
Figure 7-40: Engaging and Releasing Caster Locks
JET TOOLS • SKY25 SKYHYKER MATERIAL LIFT | 24
