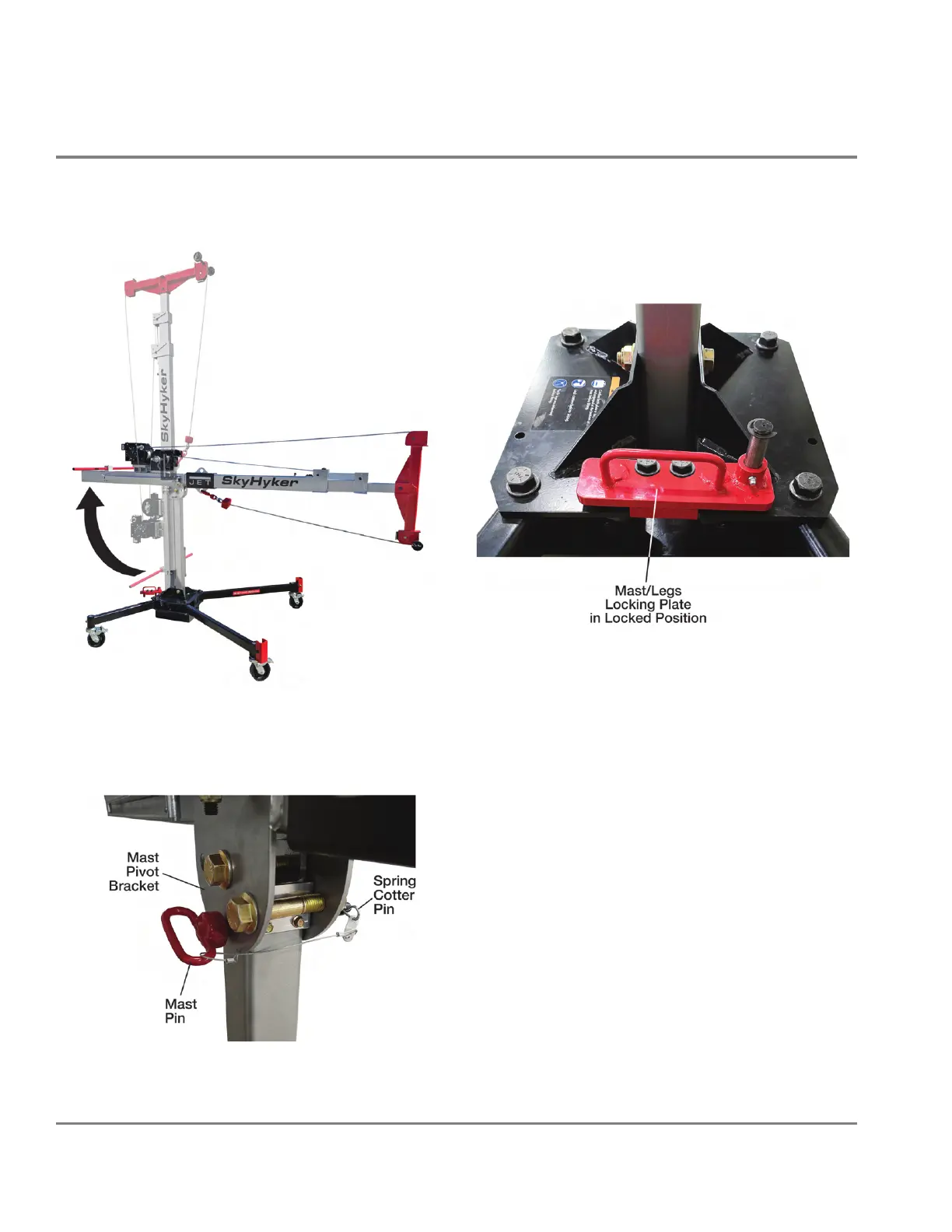

7. Using at least two people, grasp the mast handle and ro-
tate the mast bottom upward, bringing the mast assembly
slowlytothehorizontalposition(seeFigure7-36).
Figure 7-36: Rotating Mast to Travel Position
8. Secure mast in place by inserting mounting pin through
mast pivot bracket and square tube. Attach the spring cotter
pin to the mounting pin. See Figure 7-37.
Figure 7-37: Installing Mast Pin
9. Swing the red mast/legs locking plate back into place.
Make sure it drops into the locked position (see Figure
7-38).
10. Remove mast handle from mast handle housing and place
it back in the mounting brackets located on the square
tube.
Figure 7-38: Mast/Legs Locking Plate in Locked Position
23 | Chapter 7: Operation
