4. Attach the red mast handle to the mast. The mast handle is
located in mounting brackets on the square tube (see Fig-
ure 7-3). Slide mast handle through mast handle housing
at rear of mast. Pull spring pin up on mast handle housing
and slide handle into place so that the handle locking hole
aligns with the spring pin. Allow spring pin to snap into
locking hole to hold handle in place. See Figure 7-4.
5. Remove the spring cotter pin and mast pin from the mast
pivot bracket (see Figure 7-5).
6. Usingatleasttwopeople,graspthemasthandleandrotate
the rear of mast downward and into the square tube/mast
slotinthebase(seeFigure7-6).Makesurethemastis
touching the square tube and is completely vertical.

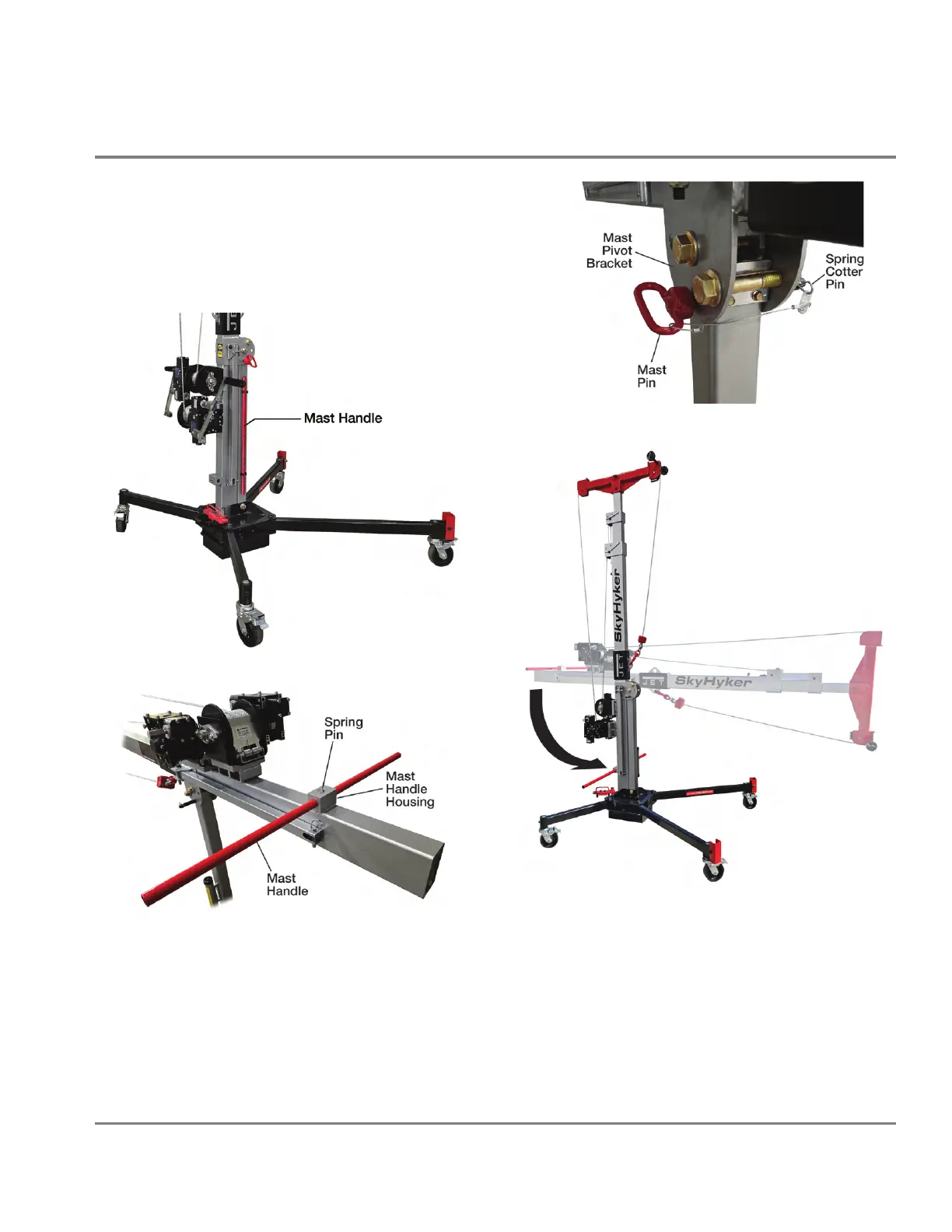

Figure 7-4: Installing Mast Handle
Figure 7-5: Removing Mast Pin
Figure 7-6: Rotate Mast to Load Position
Figure 7-3: Mast Handle Location
JET TOOLS • SKY25 SKYHYKER MATERIAL LIFT | 12
Continued
