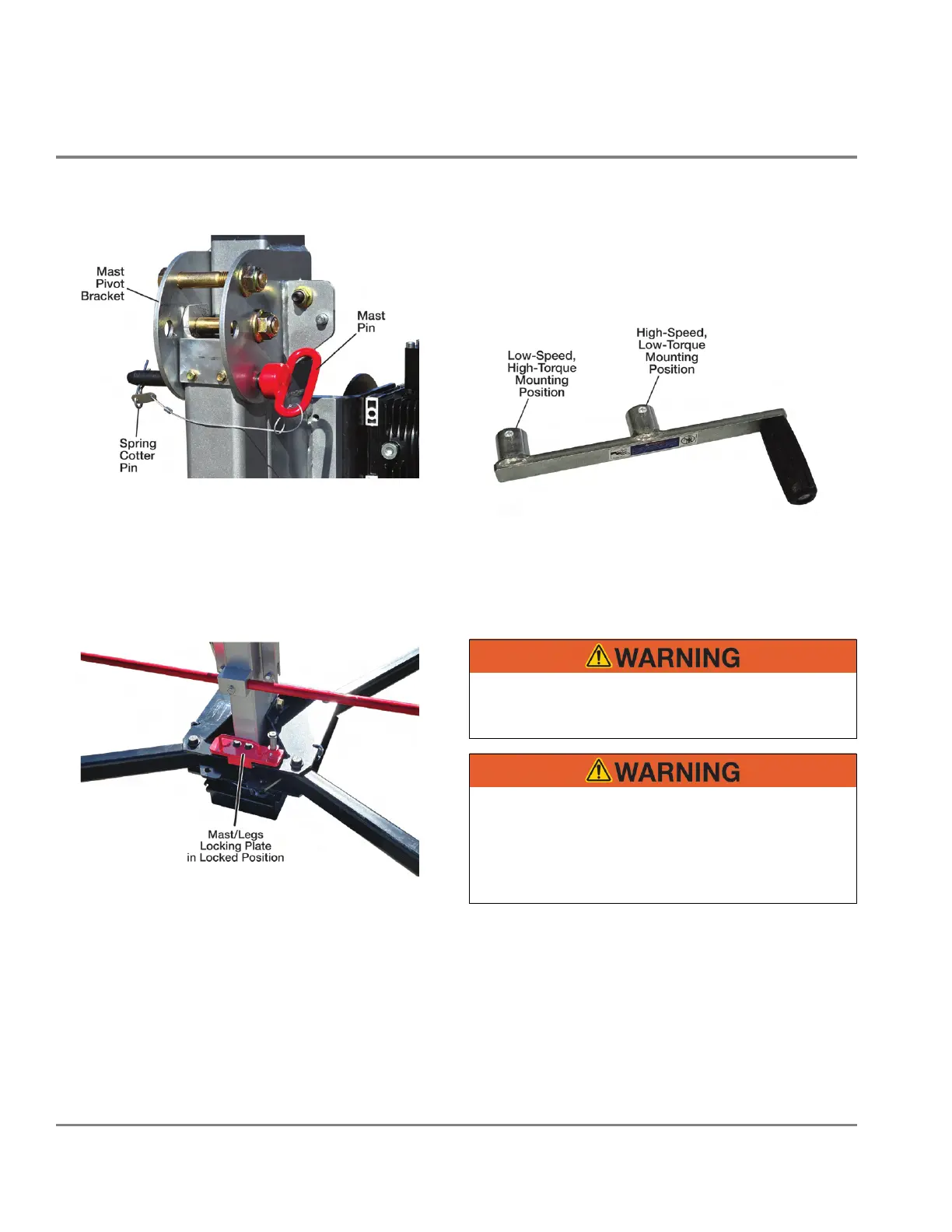

Figure 7-7: Installing Mast Pin
7. Insert mast pin through mast pivot bracket and square
tube. Attach spring cotter pin to the mast pin. See Figure
7-7.
8. Secure mast in place by swinging the red mast/legs locking
plate back into place. Make sure it drops into the locked
position (see Figure 7-8).
9. Remove the red mast handle from the mast handle housing
and place it back in the mounting brackets located on the
square tube.
Figure 7-8: Mast/Legs Locking Plate in Locked Position
The winch handles have two mounting positions; a high-
speed, low-torque position, and a low-speed, high-torque
position (see Figure 7-9). If changing the handle mounting
position, follow the instructions in Section 6.2 INSTALLING
WINCH HANDLES.
Figure 7-9: Two-Position Winch Handle
7.2 TWO-POSITION WINCH HANDLES
Follow the maximum load requirements for cable lifting
as shown in Section 1.7 LOAD RATINGS.
1. Move the material lift to the lift location and lock the cast-
er wheels by engaging caster locks on each wheel (see
Section 7.10 LOCKING CASTERS).
2. If the planned lift requires the mast T-bar to be higher than
20 feet, you must use guy wires to stabilize the mast. Follow
the instructions in Section 7.4 USING GUY WIRES to attach
guy wires and prepare the material lift.
7.3 LIFTING OR LOWERING A LOAD
USING THE LOAD WINCH
When lifting or lowering loads using the load
winch, and the T-bar height is below 20 feet, the
maximum load capacity is 2000 lbs.
When lifting or lowering loads using the load
winch, and the mast T-bar height is above 20 feet,
the maximum load capacity is 1500 lbs. You must
also use the supplied guy wires to add lateral sta-
bilization to the mast. See Section 7.4 USING GUY
WIRES.
13 |
Chapter 7: Operation
