The winch handles are located in the hardware package. The
winch handles have two mounting positions; a high-speed,
low-torque position, and a low-speed, high-torque position
(seeFigure6-9).Mounthandlestoeachwinchdrivespindle
(seeFigure6-10).Tightenthemountingbolttosecurethe
handle.

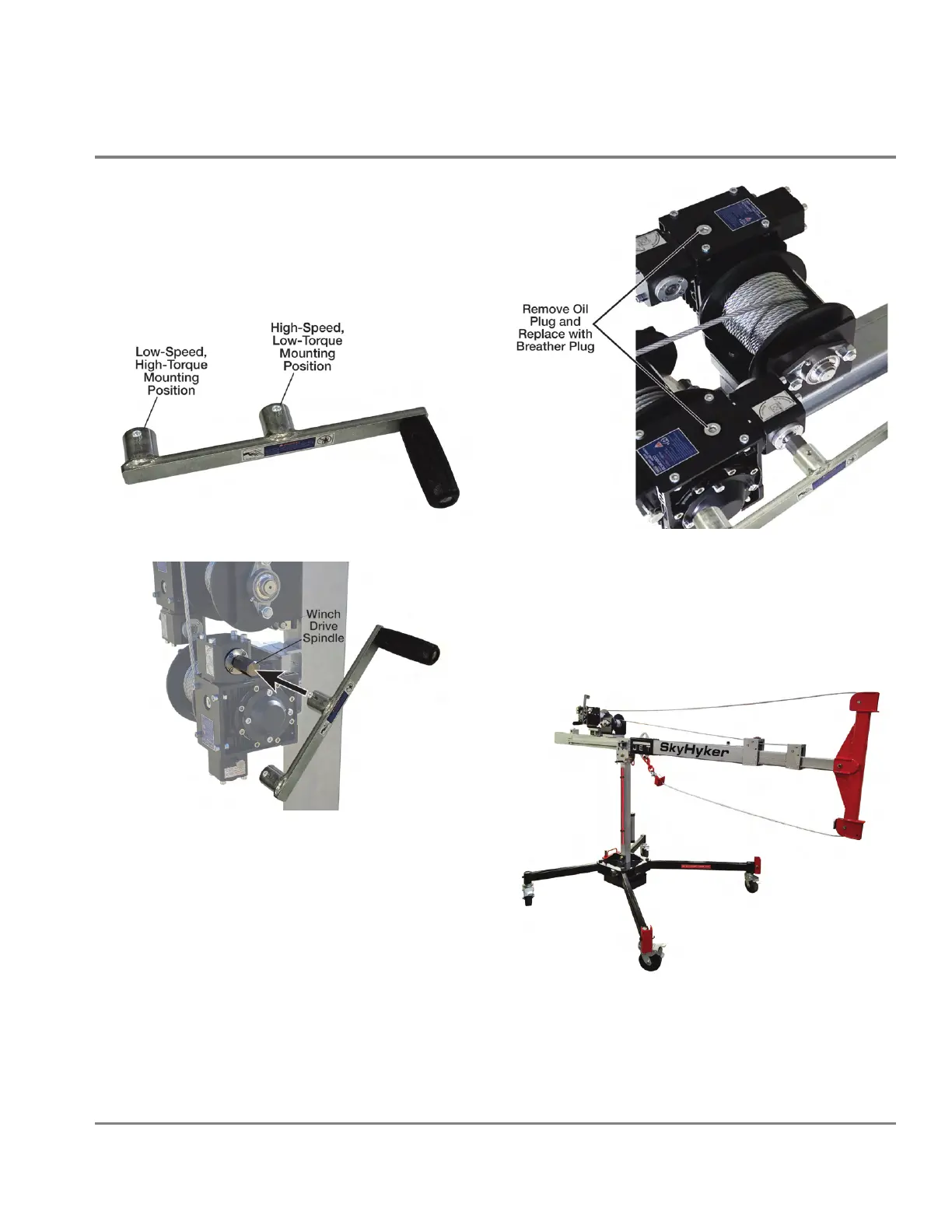

Figure 6-9: Winch Handle
Figure 6-10: Attaching Winch Handle
The SkyHyker material lift is now assembled and in the travel
(horizontal,non-load)position,asshowninFigure6-12.
6.4 COMPLETED INSTALLATION
Figure 6-12: SkyHyker in Travel (horizontal, non-load) Position
Both winches are shipped with oil plugs installed in the gear
boxes. Two winch gear box breather plugs are included in
the hardware package. Using a hex wrench, remove both oil
plugs and replace them with the two winch gear box breath-
erplugs(seeFigure6-11).
IMPORTANT: Only install the breather plug with the
SkyHyker in the travel (horizontal, non-load) position.
6.3 INSTALLING WINCH GEAR BOX
BREATHER PLUGS
Figure 6-11: Installing Winch Gear Box Breather Plugs
6.2 INSTALLING WINCH HANDLES
JET TOOLS • SKY25 SKYHYKER MATERIAL LIFT | 10
