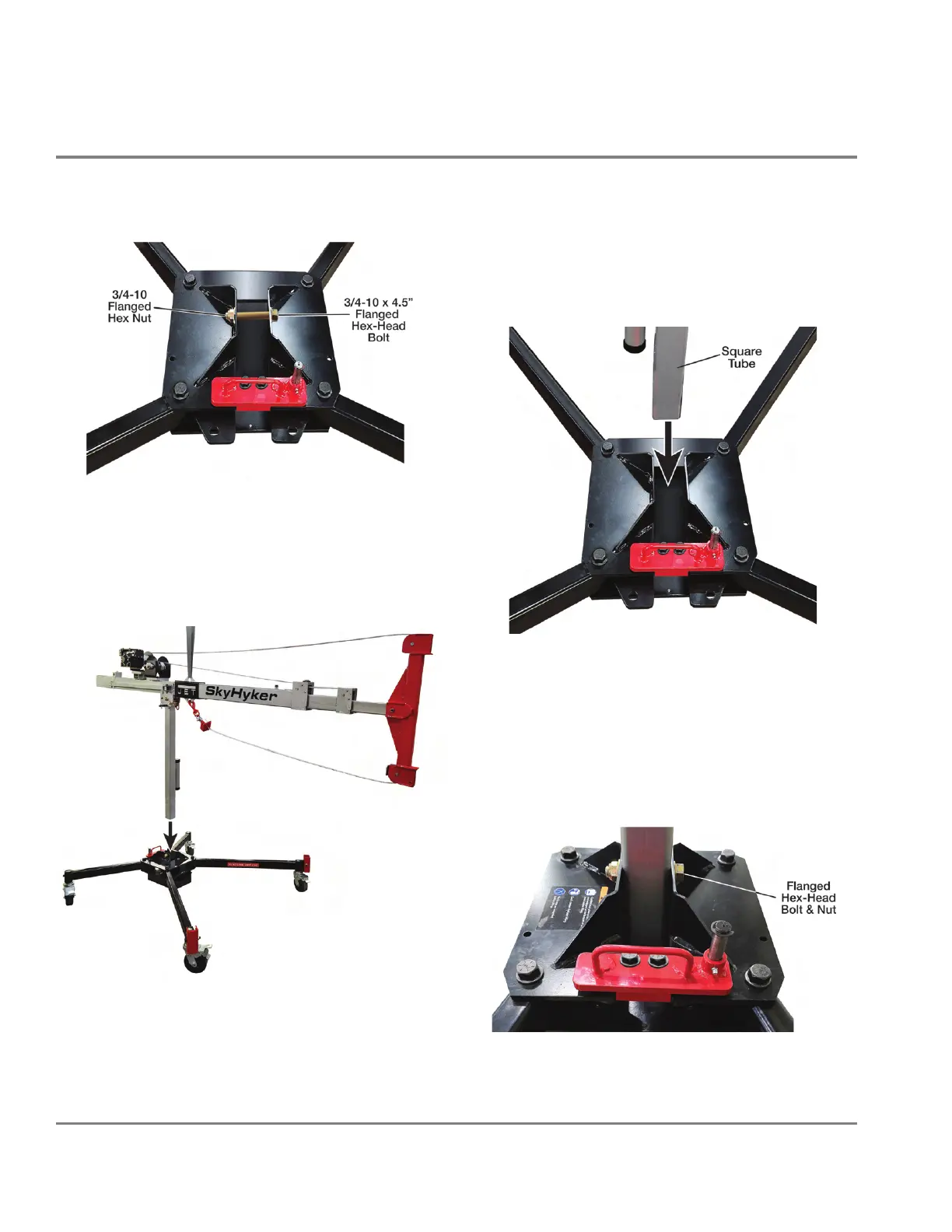

7. Removethepre-installed3/4-10x4.5”angedhex-head
boltand3/4-10angedhexnutfromthebase(seeFigure
6-5).
Figure 6-6: Positioning Mast Over Base
8. Move the base assembly under the elevated mast assembly
asshowninFigure6-6.Makesurethelonglegsofthebase
are positioned under the T-bar side of the mast assembly.
Figure 6-7: Square Tube to Base
10. Attach square tube to base using supplied 3/4-10 x 4.5”
angedhex-headboltand3/4-10angedhexnut(see
Figure6-8).Inserttheangedhex-headboltthroughthe
square tube anges and the square tube. Secure with
angedhexnut.
11. Remove the lifting strap from the travel mode lift point on
the mast assembly.
Figure 6-8: Attaching Square Tube to Base
Figure 6-5: Removing Flanged Hex-Head Bolt and Nut
9. Align the square tube of the mast assembly with the square
tubemountingangesandsquaretubemountingholein
thebase(seeFigure6-7).Slowlylowerthemastassembly,
guiding the square tube between the square tube mounting
angesandintothesquaretubemountinghole.Continue
lowering the mast assembly until the end of the square
tube rests on the plate at the bottom of the square tube
mounting hole.
9 |
Chapter 6: Assembly
