15

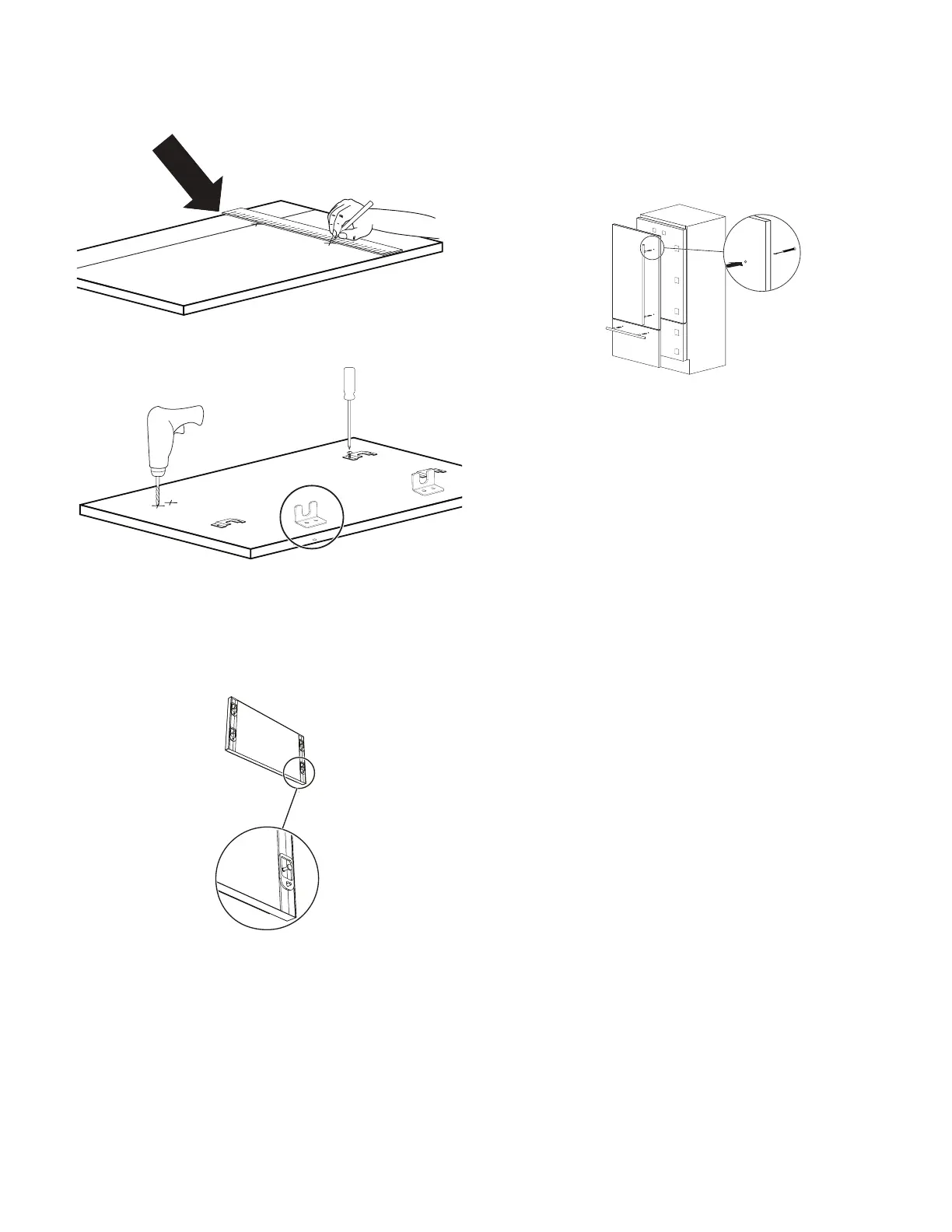

Drawer Panel

� When preparing the Drawer Panel, follow the same

instructions as per the door panel, but make sure

measurements are taken starting from the top edge.

The height-adjustment support brackets are oriented the

opposite way.

� Prepare the refrigerator door (and drawer(s) if applicable) for

panel mounting by threading the shoulder bolts into the

recessed receivers and the set screws into the other hole.

Ensure the end with the hex key socket is threaded into the

door and not on the visible end. Thread this in far enough that

it is flush with refrigerator door face so as not to interference

with hanging the panel. You will adjust these later from the

inside of the door and drawer.

Attaching Door Handles

NOTE: Handles will have to be mounted on the panels before they

are applied to the refrigerator.

Follow the instructions:

� Drill two holes on the back of the panels.

� Depending on the style of panel, it may be necessary to create

tapered countersinks for the screw heads.

NOIR™ Style Door Handle

BEFORE YOU BEGIN: The handle and handle mounting

hardware must be installed before installing the custom wood

panel. A qualified cabinet maker must perform the installation.

IMPORTANT:

� This kit is designed to be used only with custom wood

panels with thickness of 3/4" (18 mm) to 1

1

/

8

" (28 mm).

� To avoid handle damage, lift the door and drawer panel(s)

by the edges.

TOOLS NEEDED: Gather the required tools and parts before

starting installation. Read and follow the instructions provided

with any tools listed here.

� Tape measure

� Pencil

� Cordless drill

� 1/4" Drill bit

� 11/32" Drill bit

� 3/4" forstner bit

� Torx T30

✝

bit

� 11/32" socket driver

� Torque Wrench

PARTS SUPPLIED WITH HANDLE:

� Handle - freezer drawer

� Screws - 1/4-20 x 0.791"

� Handle - refrigerator

door

*

� Hex nuts - #8-32 x 0.124"

Install the Refrigerator Handle(s)

IMPORTANT:

� Verify panel dimensions before drilling any holes.

� For hole locations and the spacing requirements of NOIR™

handle mounting, refer Figure 1.

NOTE: Figure 1 represents a Side by Side (left) freezer panel,

a French door (left) refrigerator panel, a bottom mount left

swing refrigerator panel, and column refrigerator/freezer panel.

Mirror the hole pattern on the opposite door panel as required.

1. Mark the hole locations as shown in Figure 1.

2. Clearance is required for the handle fasteners on the back

side of the panel. Flip the panel over to reveal the backside

of the panel. Using a 3/4" forstner bit, drill a 9/32" (7 mm)

deep counterbore at the top and bottom hole locations as

shown in Figure 2 - Detail X.

3. Drill a 5/16" (8.2 mm) holes at the top and bottom locations

shown in Figure 2 - Detail X.

✝TORX and T30 are trademarks of Acument Intellectual Properties, LLC.

*Numbers may vary depending on refrigerator model and handle type.
