16
4. Using a 3/4" forstner bit, drill a 7/16" (11.2 mm) deep
counterbore at the middle three locations shown in
Figure 2 - Detail Y.
5. Drill a 1/4" (6.2 mm) hole at the middle three locations as
shown in Figure 2 - Detail Y.
NOTE: Confirm hole depth by temporarily placing fastener
into the hole.
6. Place the handle on the front of the panel. Using Torx T30
screwdriver, secure the handle to panel by tightening the
two 1/4" screws on handle ends. Recommended screw
torque is 28 lb-in. Fasten three #8-32 nuts to the middle
three locations. Nuts should be snug.
NOTE: Do not overtighten. Do not use impact driver.
7. If you have two refrigerator doors or a side-by-side doors,
repeat steps 1 through 6 to install the other handle.
A
D
E
B
F
C
G
H
J
M
L
K

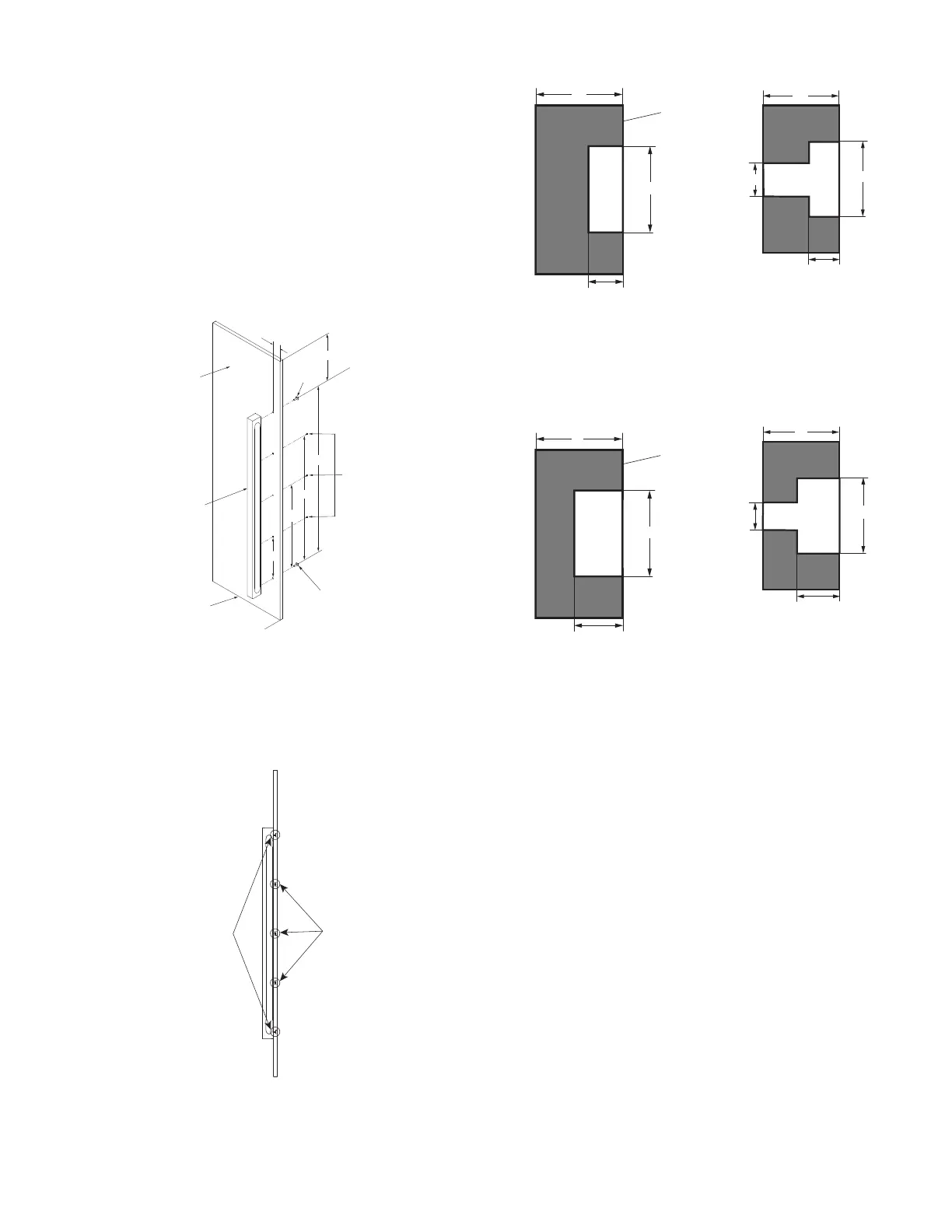

Figure 1 - Refrigerator/freezer door
A. Door panel
B. NOIR™ handle
C. Bottom surface of door
panel
D. 1/4-20 X 0.791" Screw (1)
E. #8-32 X 0.124" Hex nut (3)
F. 1/4-20 X 0.791" screw (1)
G. 1
13
/
16
" (46 mm)
H. 5
5
/
8
" (142 mm)
I. 38
1
/
8
" (968 mm)
J. 28
5
/
18
" (726 mm)
K. 19" (241 mm)
L. 9
1
/
2
" (241 mm)
A
B
Figure 2 - Cross sectional view
A. 2X refer detail 'X' B. 3X refer detail 'Y'
Detail ‘X’
C
D
A
B
D
C
B
A
Step ‘2’ Step ‘3’
A. Backside of panel
B. 3/4" (19.05 mm)
C. 3/4" (19.05 mm)
D. 1/4" (7 mm)
A. 5/16" (8.3 mm)
B. 3/4" (19.05 mm)
C. 3/4" (19.05 mm)
D. 1/4" (7 mm)
Detail ‘Y’
C
D
A
B
D
C
A
B
Step ‘4’ Step ‘5’
A. Backside of panel
B. 3/4" (19.05 mm)
C. 3/4" (19.05 mm)
D. 7/16" (11.2 mm)
A. 1/4" (6.2 mm)
B. 3/4" (19.05 mm)
C. 3/4" (19.05 mm)
D. 7/16" (11.2 mm)
Install the Freezer Drawer Handle
IMPORTANT:
� Verify panel dimensions before drilling any holes.
� Verify before drilling that the hole pattern is at center.
1. Clearance is required for the handle fasteners on the
backside of the panel. Flip the panel over to reveal the
backside of the panel. Using a 3/4" forstner bit, drill a 9/32"
(7 mm) deep counterbore at the left and right hole
locations as shown in Figure 4 - Detail X.
2. Drill a 5/16" (8.2 mm) hole at the left and right locations as
shown in Figure 4 - Detail X.
3. Using a 3/4" forstner bit, drill a 7/16" (11.2 mm) deep
counterbore at the middle three locations as shown in
Figure 4 - Detail Y.
4. Drill a 1/4" (6.2 mm) hole at the middle three locations as
shown in Figure 4 - Detail Y.
NOTE: Confirm hole depth by temporarily placing fastener
into the hole.
5. Place the handle on the front of the panel. Using Torx T30
screwdriver, secure the handle to panel by tightening the
two 1/4" screws on the handle ends. Recommended screw
torque is 28 lb/in. Fasten three #8-32 nuts to the middle
three locations. Nuts should be snug.
