14

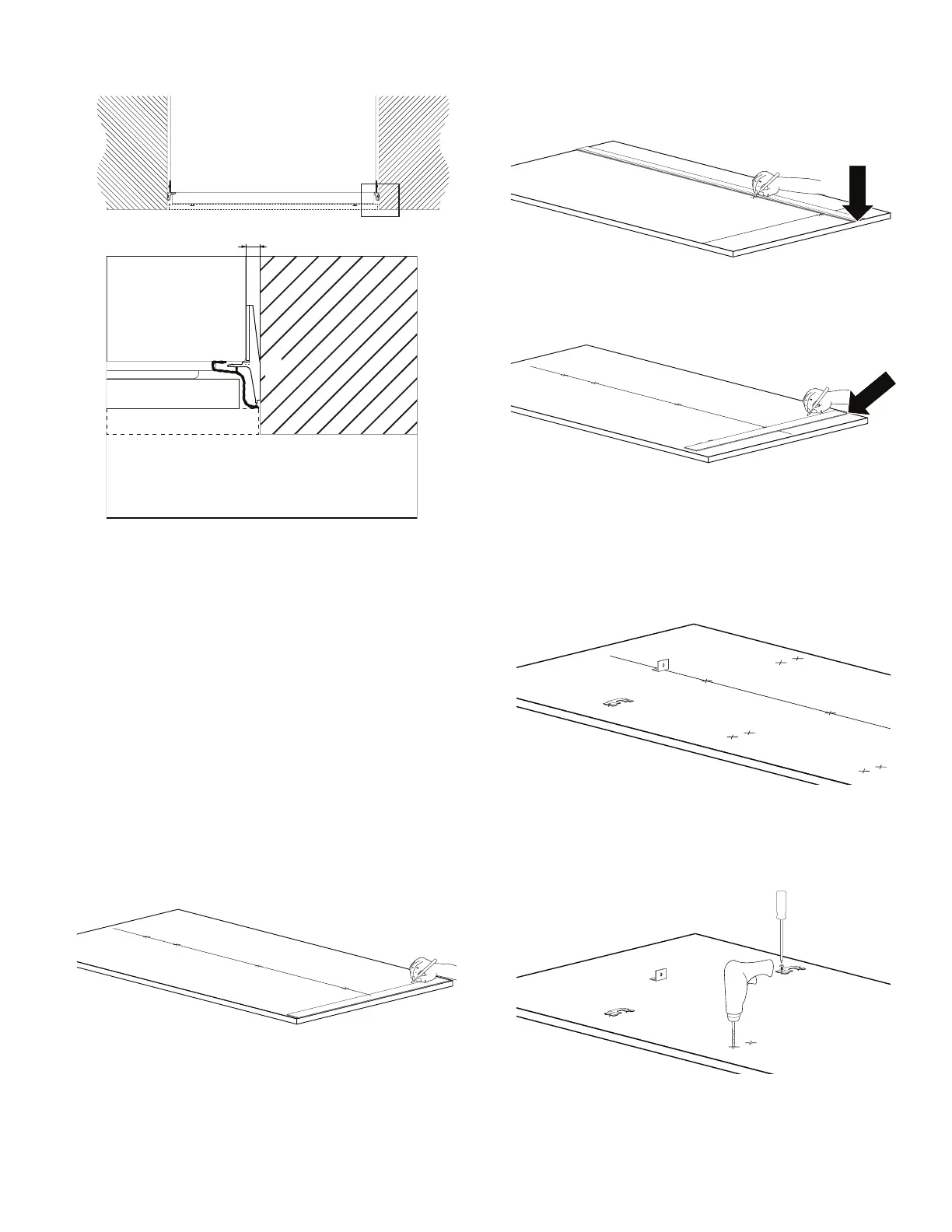

A
B
A. Lateral Connection Kit B. 1/2" (13 mm)
The dimensions of the panels are indicated in the table and
drawings on below pages.
According to the requirements for aligning with other kitchen
structures, the door panel can be higher than the upper edge of
the refrigerator door, and the drawer panel can be lower than the
edge of the drawer.
The panels must be mounted using special brackets which attach
to adjustable devices provided on the door and drawer and with
brackets that anchor and adjust the panel’s vertical direction.
Brackets and fixing screws are provided with the refrigerator and
must be applied to the panel as indicated.
Follow the instructions:
To prepare the panels to be mounted on the refrigerator, follow
these steps, working on the back of the panel.
Door Panel
� Draw a vertical center line on the panel from top to bottom.
� Starting from the bottom edge of the panel, mark the position
of the brackets.
� Mark the external and then the internal hole.
� Position the brackets on each set of marks to make sure they
are aligned, if you choose to drill small pilot holes for the
screws pay special attention to not pass through the panel
entirely.
� Screw the brackets in place.
