19
www.janitza.com 800-CT8-LP module
ATTENTION
Improper handling may cause damage to the
module and result in material damage!
The contacts of the bus connectors (JanBus interface)
can bend or break off and destroy the bus connector.
· Never touch or manipulate the contacts of the
bus connector!
· Never force the bus connector into the module!
· When handling, transporting and storing the
module, protect the contacts of the bus con-
nector!
click!
Bottom bolts
DIN rail
800-CT8-LP module
With bus connector

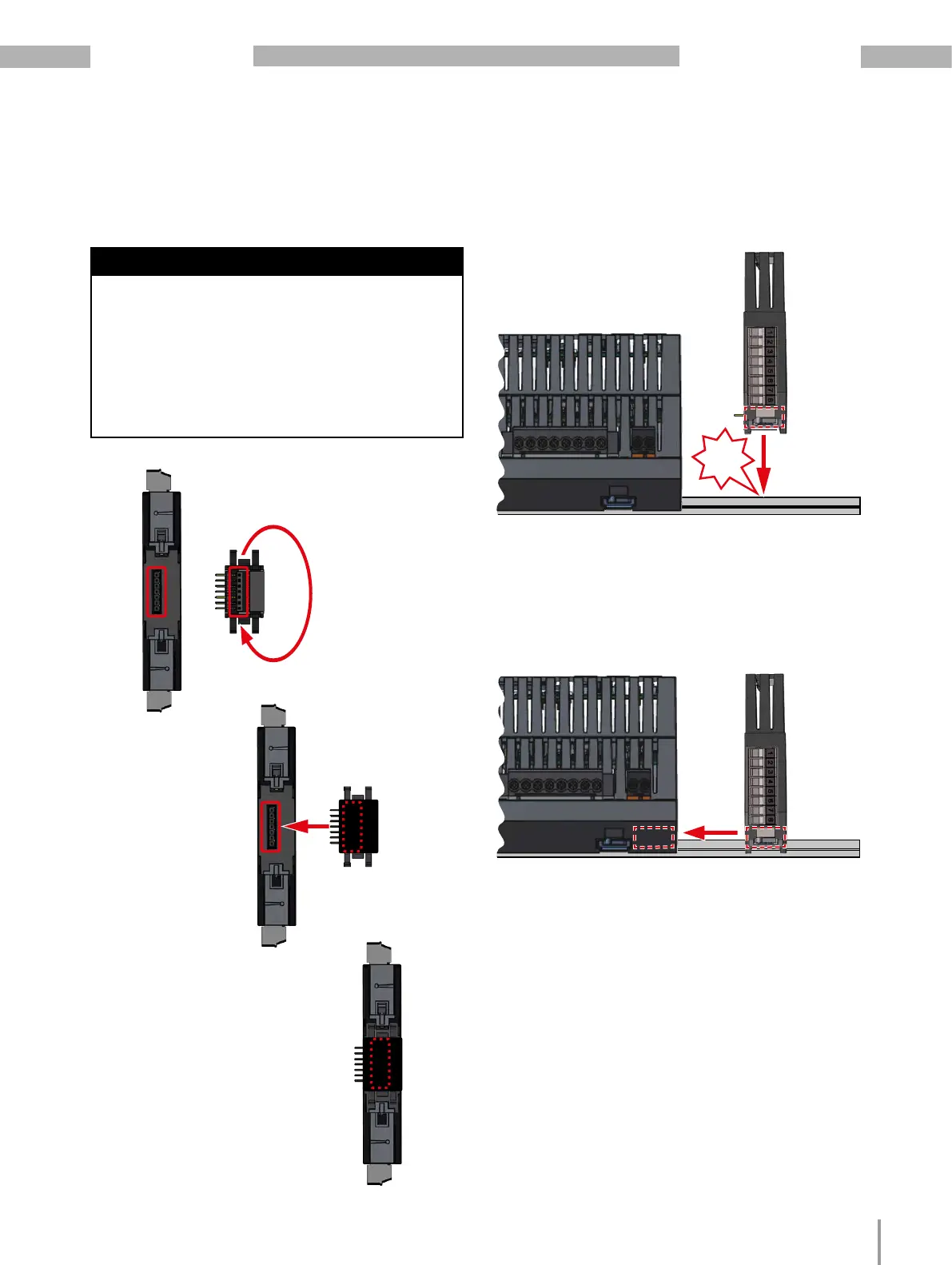

Fig.: Side view of basic device and 800-CT8-LP module
3. Press the module with the bus connector onto
the DIN rail (for suitable DIN rail types, see Sect.
“13. Technical data” on p. 47) until the bottom
bolts engage (click).
Basic device
4. To couple the bus connectors (devices), push
the contacts of your module bus connector into
the sockets of the basic device bus connector
(or into the sockets of the connected module).
Internal bus connector
800-CT8-LP module
DIN rail
Fig.: Side view of basic device and 800-CT8-LP module
2. If this has not yet been done, press the bus con-
nector (JanBus interface) included in the scope
of delivery into the sockets on the rear of your
module.
Fig.: Module rear views
Bus connector
Bus connector
Twisted
Press the bus connector
contacts
into the module sockets
press
Basic device
