800-CT8-LP module www.janitza.com
DIN rail
End bracket
Basic device

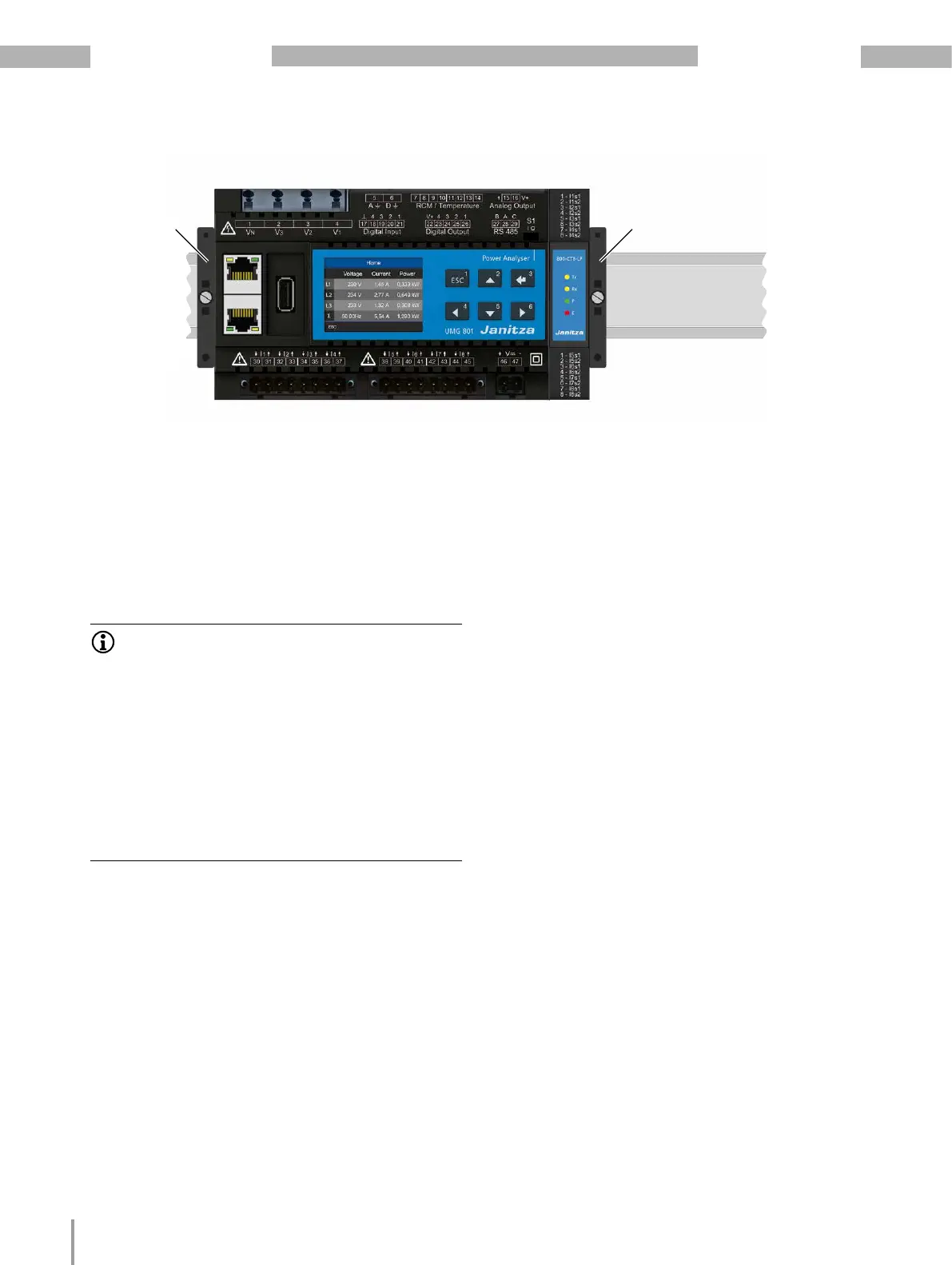

Fig.: Front view of the basic device, here a UMG801 with coupled module 800-CT8-LP
(Installation example - view without terminals)
5. After successfully coupling the bus connectors
(of the devices), mount end brackets to the se-
ries of meters and modules.
6. Wire the module and apply power to the basic
device (your system).
The basic device automatically recognizes the
module during the power-up procedure!
800-CT8-LP module
End bracket
INFORMATION
Please note the following for the setup and dimension-
ing of your measurement device and module topology:
· 1 module of the type 800-CT8-LP has 8 current
measuring channels with current measurements
exclusively via low-power current transformers
0-400mV.
· For remote series of measurement devices and
modules, please note the maximum JanBus bus
length (cable lengths) in the usage information for
the transfer modules!
· Use end brackets to set up your measurement
device and module series on the DIN rails.
