www.janitza.com
19
Module800-CON-RJ45

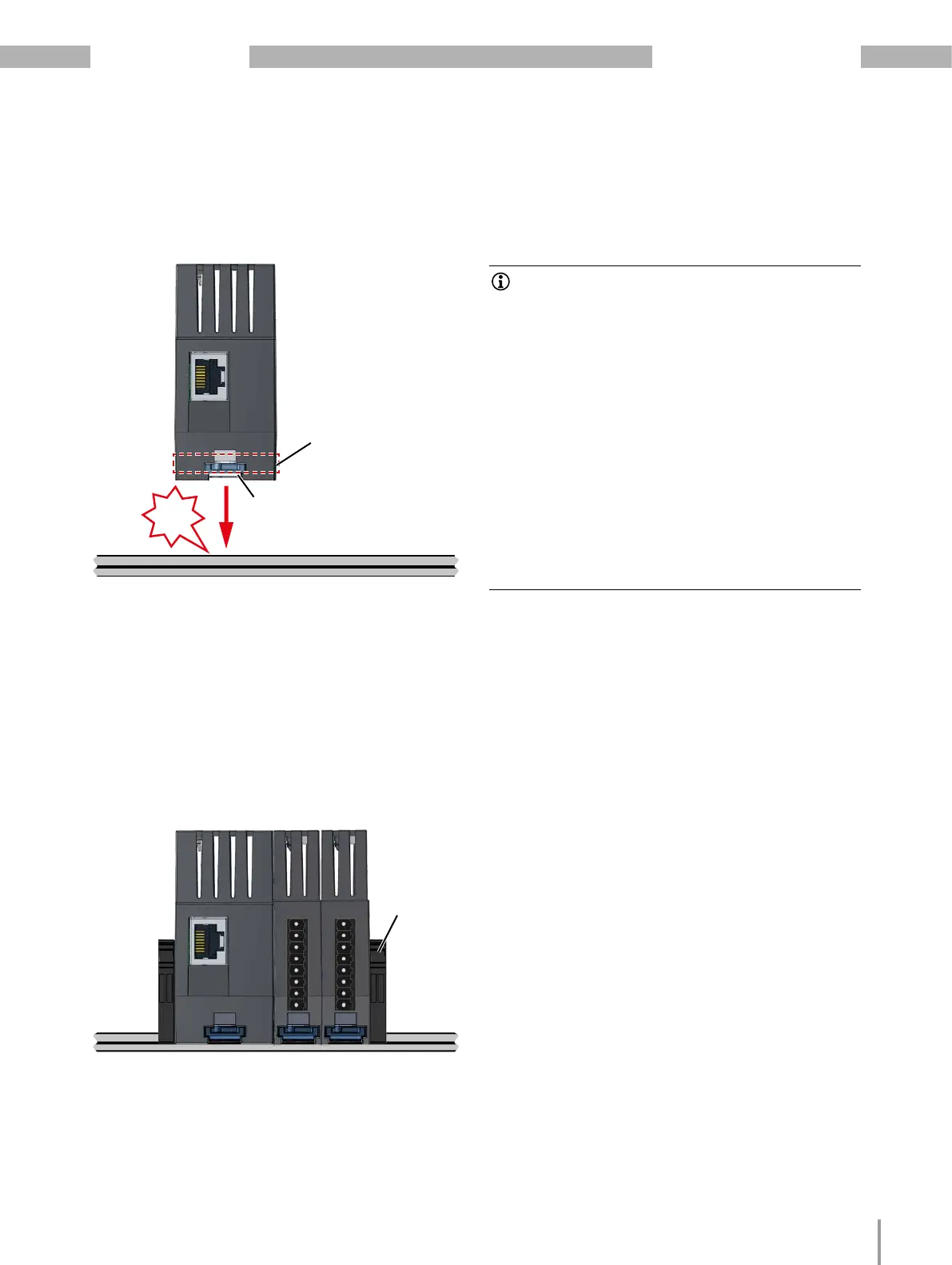

3. Press the transfer module with input bus con-
nector onto the DIN rail until the bottom bolts
audibly engage.
Bottom bolts
Transfer module 800-CON-RJ45
with input bus connector
click!
Input
bus connector sockets
DIN rail
4. Mount further modules (e.g. current measur-
ing modules, digital input modules) and push
their contacts into the sockets of the input bus
connector so that the devices are coupled to the
transfer module.
5. Check the fit of your device and module series
and mount end brackets.
6. Finally, wire your series of measurement devices
and modules, observing the usage information of
all integrated devices and modules.
7. Apply voltage to the basic device (system). The
basic device detects the modules automatically.
End
bracket
Transfer module 800-CON-RJ45
with input bus connector
e.g. current measuring or
digital input modules
DIN rail
INFORMATION
· Always install the 800-CON-RJ45 transfer mod-
ule with input bus connector at the beginning of
your remote measurement point (for further module
series see Sect. “6. Installation” on p. 22).
· In addition to the usage information of the basic
device and the 800-CON-RJ45 transfer module,
please also note any other usage information of
the modules and components integrated in your
JanBus topology.
· For recommended data cables, refer to Sect. “6.3
Data cable for connecting the 800-CON-RJ45
transfer modules” on p. 27.
· The maximum bus length (JanBus - proprietary)
for setting up measurement device and module
topologies can be found in Sect. “8. Technical data”
on p. 29.
· Use end brackets to set up your measurement
device and module series on the DIN rails.
