3.6 Installing the Sensor
1. Mount the slip sensor vertically in a static pipe.
See Figure 8.
NOTE Glue1"fittingswith793IPSbrandABS/PVC
glue.Donotglue2"fittings.
NOTE Sensorwiresmustbecontinuousandnot
spliced.Solderalllowvoltagewireconnections
whenpossibleandalwaysusegrease-filled
wirenutsonlowvoltageconnections.
2. Connect the sensor wires as follows. Refer to
Figure 7, Control Box Wiring, page 10 and
Table 1, Sensor Wire Connections, shown below.
a. Connect the black wire from the Sensor
Common probe to the yellow wire in the
control box using a wire nut.
b. Connect the red wire from the Fill Sensor
probe to the yellow wire with the blue stripe
in the control box using a wire nut.
c. Connect the white wire from the High Water
Sensor probe to the yellow wire with the red
stripe in the control box using a wire nut.
Table 1. Sensor Wire Connections
Sensor Wires Control Box Wires
Black(SensorCommonProbe) Yellow
Red(FillSensorProbe) Yellow/BlueStripe
White(HighWaterSensorProbe) Yellow/RedStripe

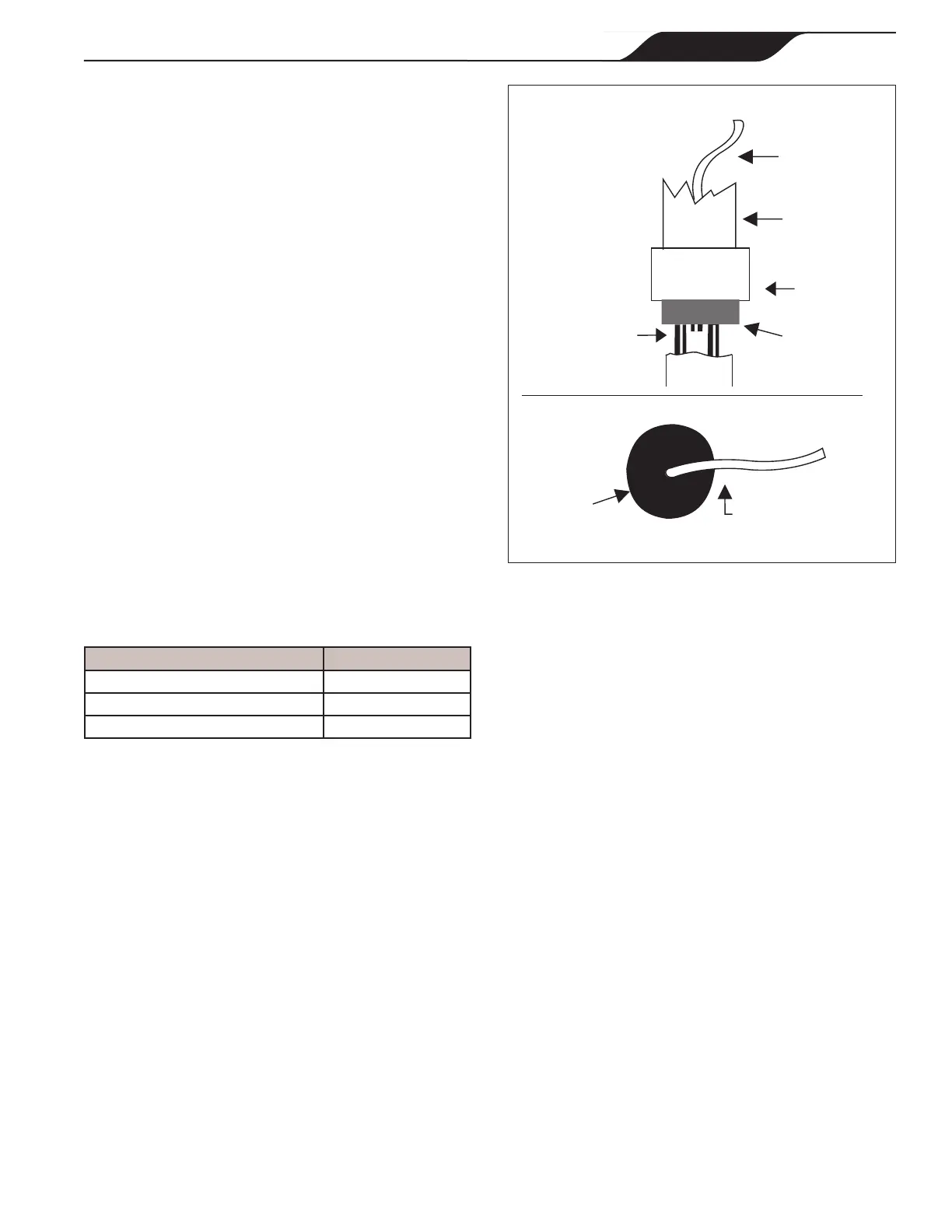

Figure 8. Slip Sensor on Static Pipe
Cable
Sensor
Sensor
Water Level
Do Not Submerge
Sensor Under
Water
TOP VIEW
SIDE VIEW
1" Coupling
Extension
Pipe
Cable
Sensor Tips
Page 11
ENGLISH
Jandy Pro Series Levolor
®
II Electronic Water Leveler
Models K-2000
|
Installation and Operation Manual
