Transformer
HWS (Yellow/Red)
Five (5) Status Lights
Fill Sensor (Yellow/Blue)
Red and Gray Wires to High Level DC Relay (24VDC)
Blue Wires to Fill Valve
Black Wire to Power (24VAC)
Yellow Wire/Blue Stripe to Fill Sensor
Yellow Wire/Red Stripe to High Water Sensor (HWS)
Black Wire to Power (24VAC)
High Level DC Relay (Red +)
Fill Valve (Blue)
Yellow Wire to Sensor Common
Sensor Common (Yellow)
Black Wire/Red Stripe
Black Wire/White Stripe
Black Wire/Yellow Stripe
Black Wire
Green Wire (Ground)
Fill Valve (Blue)
Sensor Common
High Water Sensor
Fill Sensor
White
Black
Red
24VAC
24VDC
High Level DC Relay (Gray -)

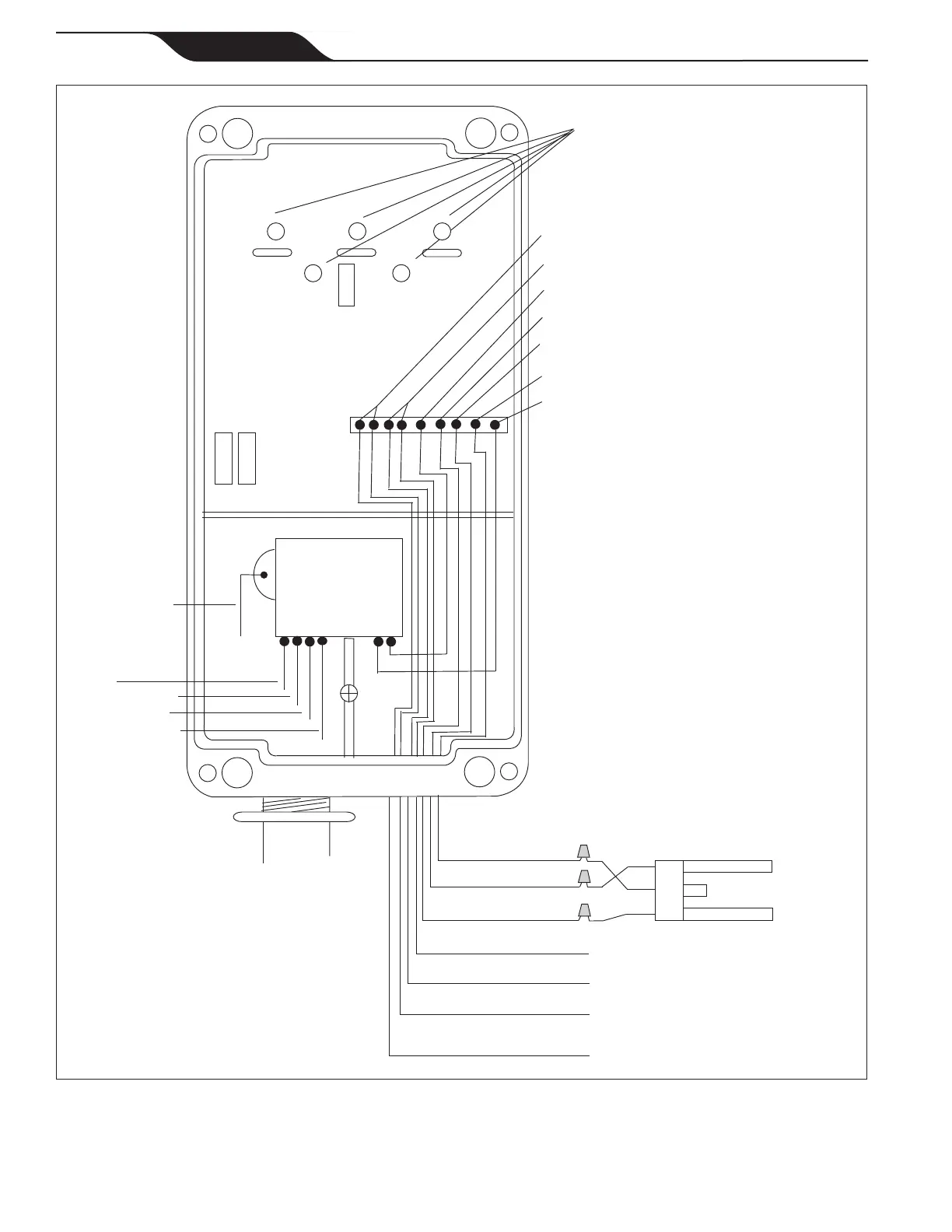

Figure 7. Control Box Wiring
Page 10
ENGLISH
Jandy Pro Series Levolor
®
II Electronic Water Leveler
Models K-2000
|
Installation and Operation Manual
