Page 10
Jandy
®
Pro Series Ozone Generator
Step 3. Plumb the Injector Manifold
The injector manifold (Jandy Pro Series PN: CDIM) draws the ozone/
air gas mixture out of the ozone generator and mixes it into the water
leaving behind some undissolved gas bubbles. These bubbles can
affect certain pool system components, so care must be taken to
install the injector manifold in the right location.

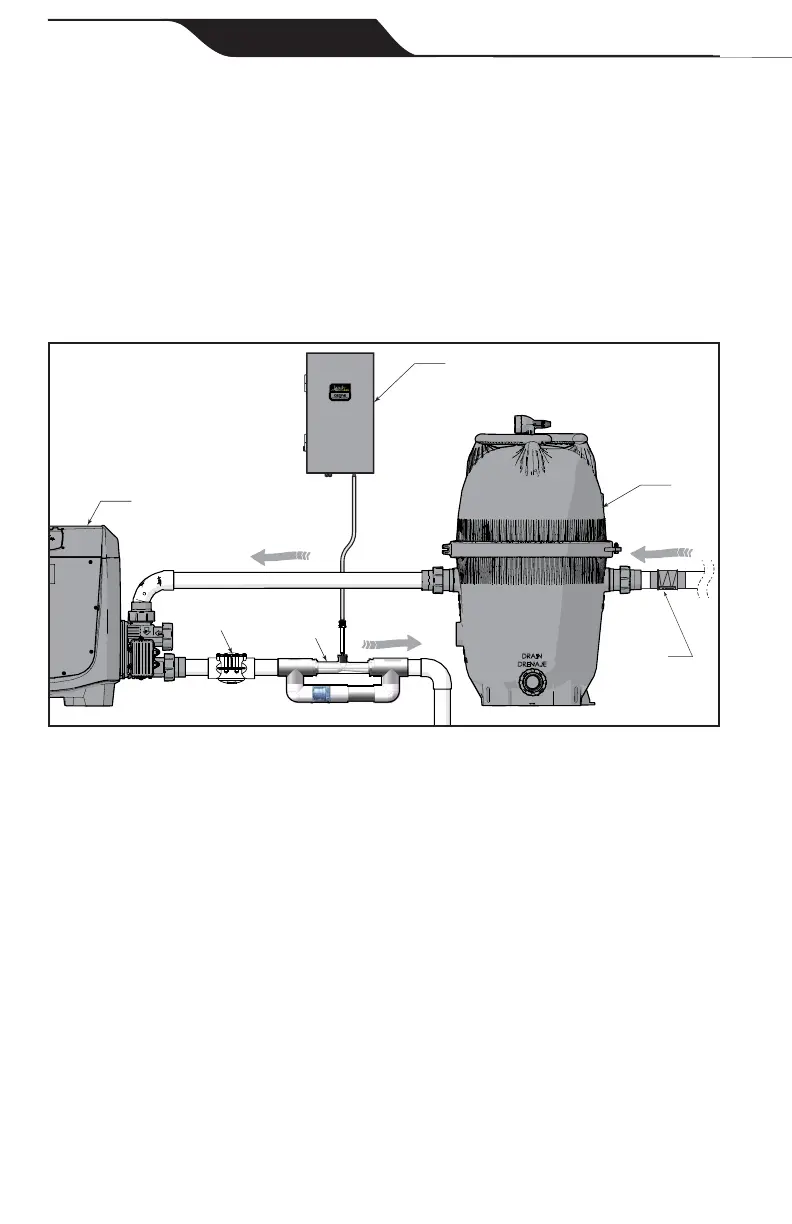

Standard Configuration with Injector Manifold
Heater
Filter
Ozone Generator
Injector
Manifold
Check
Valve
To Pool
Check Valve
(Required if equipment
is above water level)
From Pump
Figure 4. Plumbing Connections with Injector Manifold
In most standard pool equipment configurations, the injector
manifold is installed in the pool’s main return line after all other
pool equipment (pump, filter, heater, and cleaner). See Figure 4.
For alternate configurations, such as in-floor cleaning system, salt
chlorinator, etc. see Figure 6.
Injector Manifold Orientation
The preferred installation for plumbing the injector manifold is
horizontal with the ozone check valve facing upward (Figure 4).
If there is not sufficient space, the injector manifold may be installed
either vertically or horizontally with the ozone line check valve facing
downward.
