One: Programming the PE953 Hand-Held Controller 17
Providing a brighter solution.™
NOTE: Other options available will depend on how the system is
congured (e.g., reman enabled or not, booster enabled or not, etc).
7. Press the <ENTER> button again to return to the Main screen.

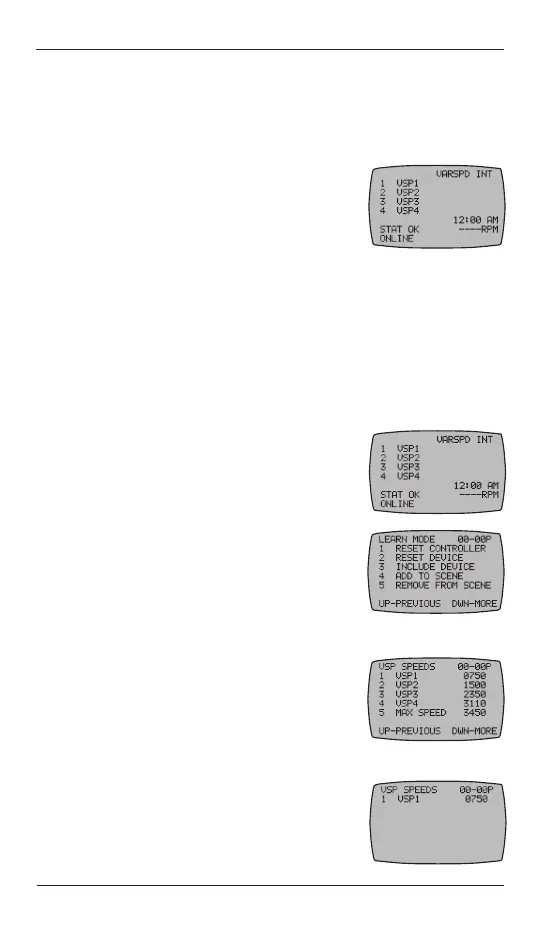

Conguring for a Variable Speed Pump (optional)
Ifavariable-speedpumphasbeeninstalledforthe
lterandcleanerpumpfunctions,theHand-Held
Controller can be toggled between the PE653 screen
andthisvariablespeedcontrolscreen(VARSPDINT)
by pressing and releasing the <ENTER> button.
This screen controls the variable speed pump,
andcanbeconguredtodisplaythefunctionalitiesyouhaveselectedfor
various pump speeds (for example, slowest speed for the cleaner, next faster
speed for a booster pump, etc.).
Buttons <1> through <4> on the Hand-Held Controller choose between the
4 speeds, allowing you to toggle them from ON to OFF and vice-versa.
Youcanchangethefourvariablespeedpumpspeedsettingsfromthe
factory default values by following these steps on the Hand-Held Controller.
Oncecongured,Buttons<1> through <4> will switch between the
variable speeds according to your settings.
1. Ifnecessary,pressandreleaseanybuttonontheHand-HeldControllerto
wake it from sleep.
2. Press the <ENTER> button to display the variable
speedscreenVARSPDINTasshown.
3. Press and hold the <P/S>buttonrst,thenpress
and hold the <ENTER> button within 2 seconds.
The LEARN MODE screen is displayed.
NOTE: If you don’t press and hold the <ENTER>
button within 2 seconds then the displayed
time may highlight, and the LEARN MODE
screen will NOT display. Release both the
<P/S> and the <ENTER> buttons, then press
<ENTER> to un-highlight the displayed time.
Repeat this procedure from the beginning until the LEARN MODE
screen is displayed.
4. Press the DOWN arrow button until you see the
VSP SPEEDS screen, as shown.
NOTE: The MAX SPEED setting is the highest
speed the pump can safely operate without
damaging the plumbing system.
5. Press and release the <1> function button to set
the speed for that button. The screen displays that speed.
6. Press the UP or DOWN arrow button to raise or
lower the speed setting.
7. Repeat Steps 5 and 6 to set speeds for button <2>
through <5>.
8. Press the <ENTER> button again to return to the
VARSPDINTscreen.
