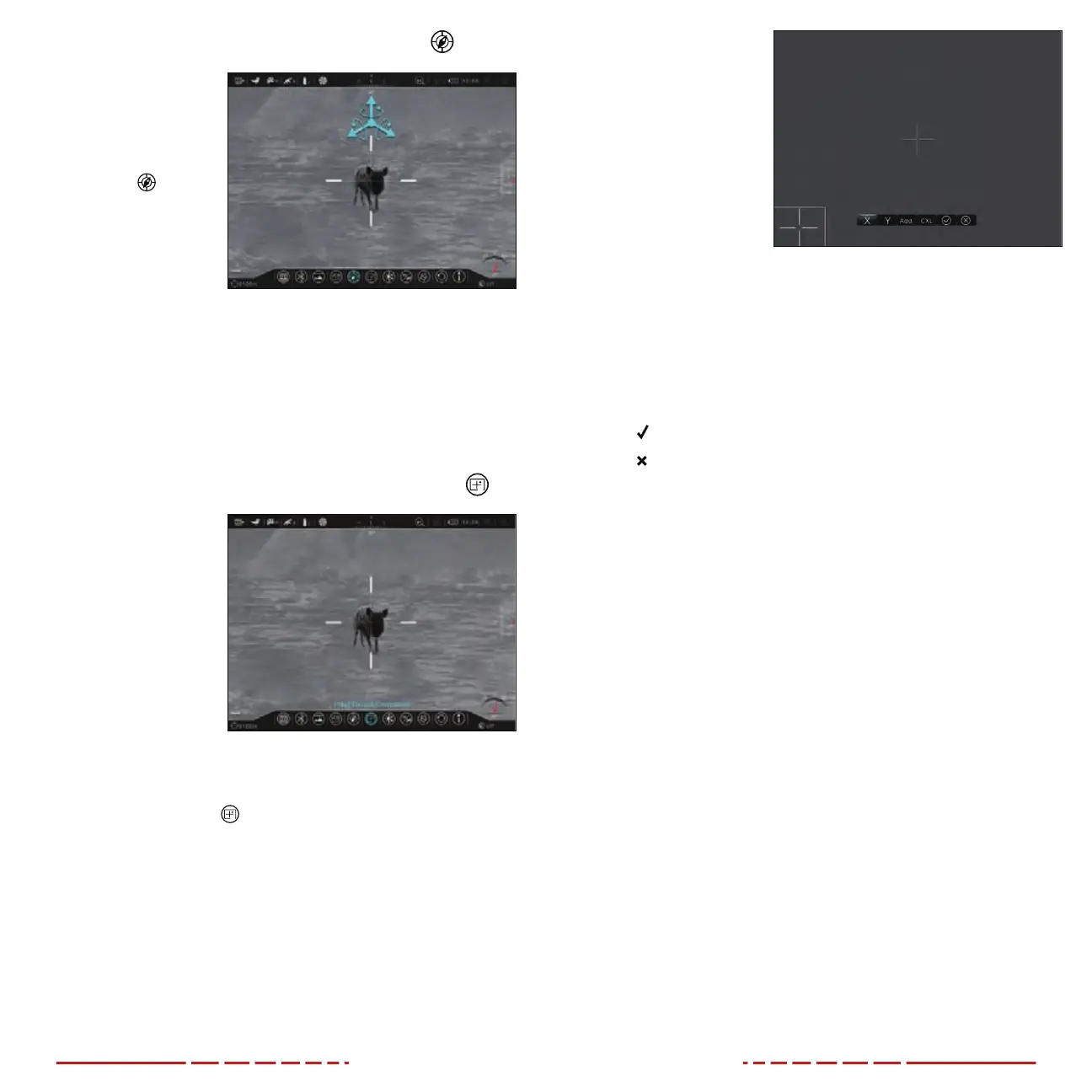

ADVANCED MENU > COMPASS CALIBRATION

Calibrate the compass

1. In the advanced

menu, rotate the

Rotary Encoder to

select the compass

calibration

menu

item.

2. Short press the

Rotary Encoder

to begin compass

calibration.

3. A triaxial coordinate

icon prompt will appear on the screen.

4. Follow the icon prompt to rotate the RICOHYBRID at least

360degrees along each axis, X, Y, andZ. Rotations must be

completed within the 15-second calibration time.

5. After 15 seconds, the calibration is finished and the

RICOHYBRID will automatically return to the home screen.

ADVANCED MENU > PIXEL DEFECT CORRECTION

Select and correct

defective pixels

Defective pixels are

pixels that do not change

correctly compared to the

other image pixels—they

are either brighter or

darker than surrounding

pixels. The RICOHYBRID

has a tool that corrects

defective pixels on the

sensor using its internal

software.

1. In the advanced menu, rotate the Rotary Encoder to select the

pixel defect correction

menu item.

2. Short press the Rotary Encoder to enter the defective pixel

correction interface.

3. The interface has the

following features:

1

PIP Window:

The Picture in

Picture window

appears in the

lower-left corner.

2

Pixel Cursor:

Cursor appears

in the center

of the screen

in place of the

reticle. Move the cursor to the position of the defective pixel.

3

X Button: Move the cursor horizontally.

4

Y Button: Move the cursor vertically.

5

Add Button: Add a defective pixel to the “to be corrected”

list.

6

CXL Button: Clear pixels saved in the “to be corrected” list.

7

Button: Save and exit the interface.

8

 Button: Exit the interface without saving.

To select and correct defective pixels:

4. The button cursor position is indicated by a blue highlight at

the top of the button. The cursor is located on the XButton by

default.

5. Short press the Rotary Encoder to select the XButton and begin

moving the pixel cursor along the X-Axis. When selected the

entire button becomes highlighted in blue.

6. Move the pixel cursor along the selected axis to the location of

the defective pixel:

a. Rotate the Rotary Encoder clockwise to move in the positive

direction: X=Right and Y=Up.

b. Rotate the Rotary Encoder counterclockwise to move in the

negative direction: X=Left and Y=Down.

c. Rotate one click to move the reticle in the corresponding

direction by 1 pixel. One full rotation (20 clicks) is equivalent

to 20 pixels.

7. Short press the Rotary Encoder to deselect the X-Axis and the

XButton.

8. Rotate the Rotary Encoder to move to the YButton. Short press

the Rotary Encoder to select it and begin moving the pixel cursor

along the Y-Axis. The entire button becomes highlighted in blue.

9. Rotate the Rotary Encoder to move the pixel cursor along the

Y-Axis.
