03) Select the DMX channel mode in the Control Mode menu (see 6.7.4. Control Mode on page 39). Refer to03)
DMX Channels (see 6.8. DMX Channels on page 44) for a complete overview of all DMX channels.
To operate the device via sACN with a computer/lighting controller:
01) Select sACN as control mode in the Control Mode menu (see 6.7.4. Control Mode on page 39).01)
02) Set the DMX starting address of the device in the DMX Address menu (see 6.7.1. DMX Address on page02)
31).
03) Select the DMX channel mode in the Control Mode menu (see 6.7.4. Control Mode on page 39). Refer to03)
DMX Channels (see 6.8. DMX Channels on page 44) for a complete overview of all DMX channels.
6.3.
Control Panel

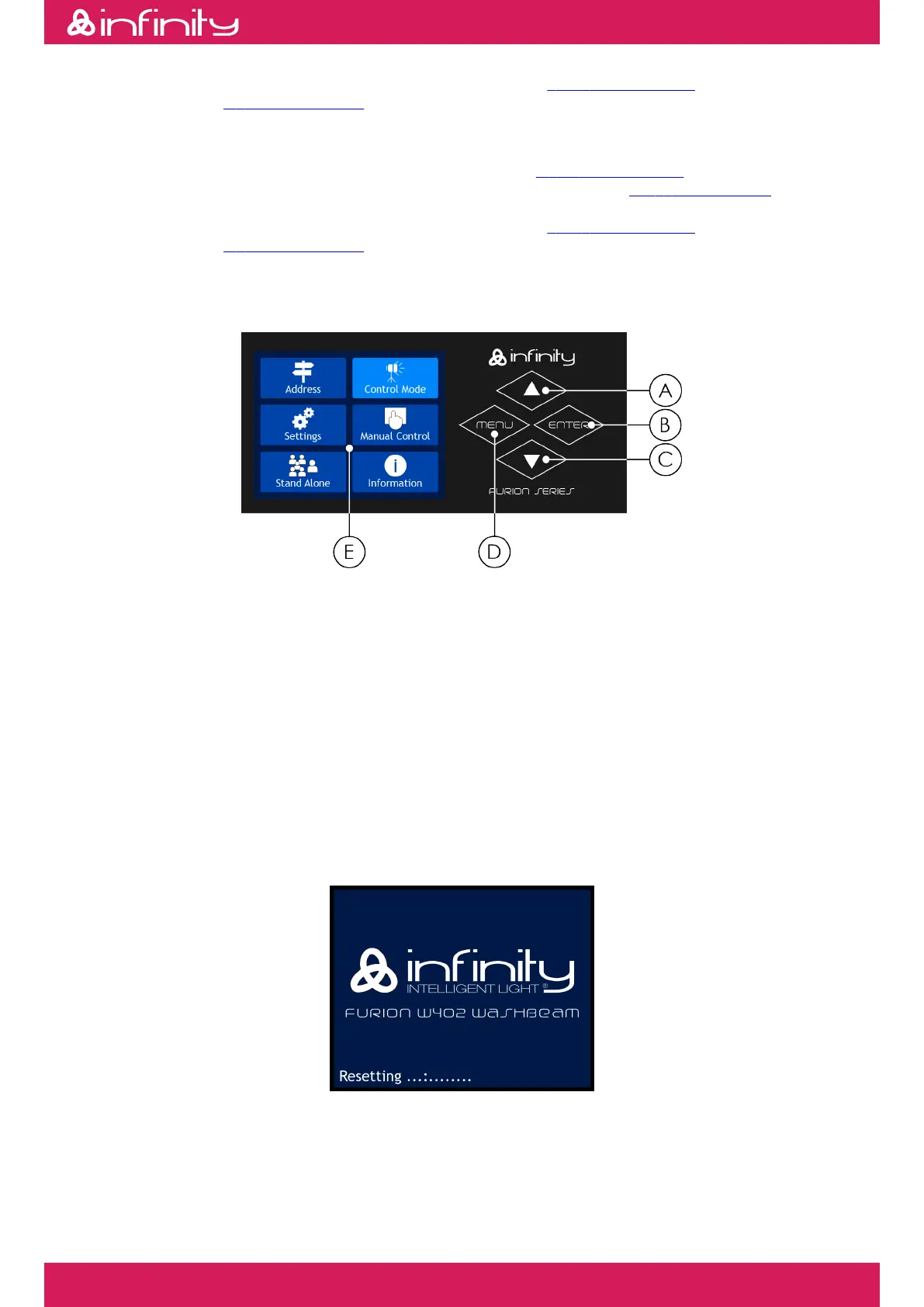

Figure 15
A)
UP touch button
A)
B)
ENTER touch button
B)
C)
DOWN touch button
C)
D)
MENU touch button
D)
E)
TFT display
E)
• Use the MENU button to exit the current submenu, to return to the Main Menu and to return to the start•
screen.
• Use the UP/DOWN buttons to navigate through the menus or to increase/decrease numeric values.•
• Use the ENTER button to open the desired menu, to confirm your choice or to set the currently selected•
value.
6.4.
Start-up
After the device is connected to power supply, the device will perform a reset. During the reset the display
shows a splash screen with the Infinity logo and the name of the device:
During the reset procedure it is possible to enter the menu to change the DMX address.
After the reset is completed, the device is ready to be operated. The display shows the start screen. The start
screen provides information about the DMX starting address, the IP address, the universe and the selected DMX
channel mode of the device:
24
c
Product code: 41440
