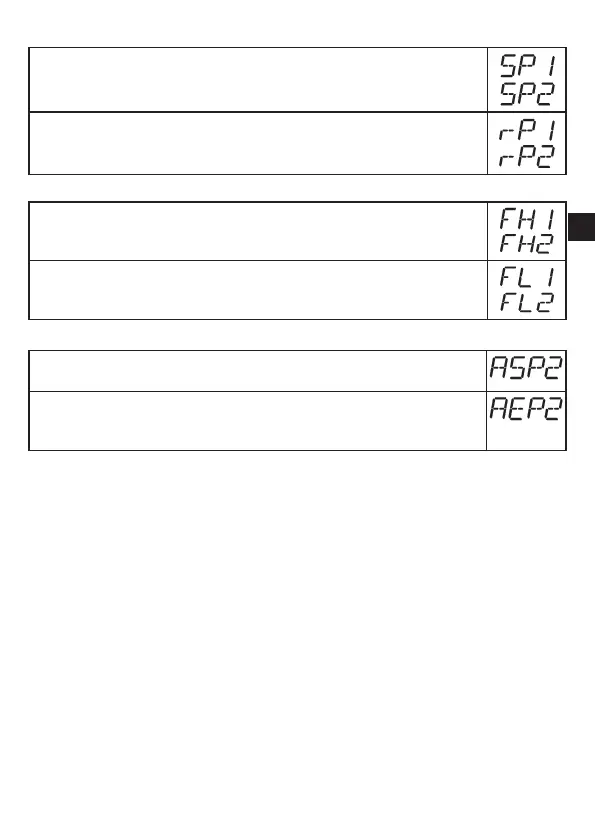

9.4.2 Define switching limits for the hysteresis function
► [ou1] / [ou2] must be set as [Hno] or [Hnc]�
► Select [SPx] and set the value at which the output switches�
► Select [rPx] and set the value at which the output switches off�
rPx is always smaller than SPx� The unit only accepts values which are lower
than the value for SPx�
9.4.3 Define switching limits for the window function
► [ou1] / [ou2] must be set as [Fno] or [Fnc]�
► Select [FHx] and set the upper limit�
► Select [FLx] and set the lower limit�
FLx is always lower than FHx� The unit only accepts values which are lower
than the value for FHx�
9.4.4 Scale analogue value
► Select [ASP2] and set the value at which 4 mA / 0 V is provided�
► Select [AEP] and set the value at which 20 mA / 10 V is provided�
Minimum distance between ASP2 and AEP2 = 20 % of the measuring
span (scaling factor 5)�
